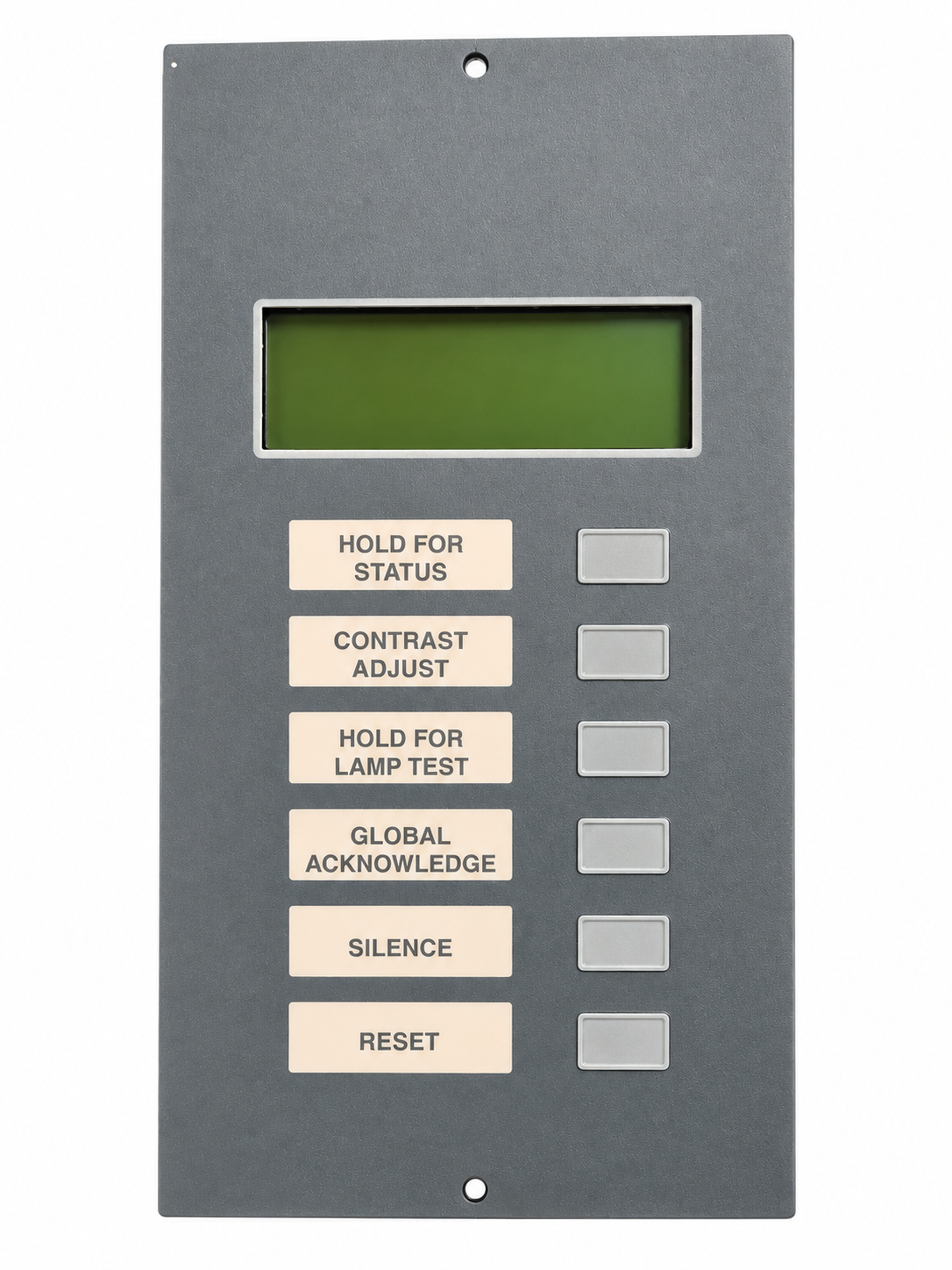

Notifier LCD-80TM 80-Character Fire Alarm LCD Annunciator
- Regular price
- $862.00
- Sale price
- $862.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LCD-80TM
Description
Notifier LCD-80TM is an 80-character backlit LCD annunciator designed to provide remote status indication and control for compatible Notifier fire alarm control panels. It operates in Terminal Mode through an EIA-485 connection and can display panel information while providing remote acknowledge, signal silence, and system reset functions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Fire Alarm Systems |
| Part Number | LCD-80TM |
| Subcategory | Annunciators and Displays |
| Display Type | Backlit LCD |
| Display Format | 80 characters, 20 characters × 4 lines |
| Operating Mode | Terminal Mode |
| Communication Interface | EIA-485 |
| Power Supply | 24 VDC |
| Normal Current | 100 mA |
| Standby Current | 50 mA |
| Alarm Current | 100 mA |
| Maximum Communication Distance | 6,000 ft / 1,828.8 m |
| Maximum Units | Up to 32 per compatible EIA-485 circuit |
| Control Functions | Acknowledge, Signal Silence, System Reset |
| Sounder | Local piezo alarm/trouble sounder |
| Mounting | Flush, surface, or panel |
| Compatible Panels | AM2020, AFP1010, AFP-200 and compatible systems |
| Weight | 1 lb |
Information About LCD-80TM
The LCD-80TM is part of the Notifier LCD-80 series of fire alarm annunciator devices and is designed specifically for Terminal Mode operation. Its 20-character by 4-line display reproduces information received from compatible fire alarm control panels without requiring local programming. The unit supports connection to AM2020, AFP1010, AFP-200, and compatible panel configurations, with optional interface hardware required for certain legacy installations. It uses a two-wire EIA-485 terminal communication interface and 24 VDC power for operation.
Key Features:
- 80-Character LCD: Provides a backlit 20-character by 4-line display for fire alarm system information.
- Terminal Mode Operation: Mimics the display information from compatible fire alarm control panels.
- EIA-485 Interface: Uses EIA-485 communication for connection to the fire alarm control system.
- Remote Controls: Provides acknowledge, signal silence, and system reset control functions.
- Local Sounder: Includes a piezo sounder for alarm and trouble resound indications.
- Long-Distance Installation: Supports remote installation up to 6,000 feet from the control panel under specified wiring conditions.
- Multi-Unit Support: Up to 32 LCD-80TM units can be connected to a compatible EIA-485 circuit when adequate power is available.
- Flexible Mounting: Supports flush, surface, and panel mounting configurations.
The LCD-80TM delivers the reliability and precision required for remote fire alarm annunciation and control.
