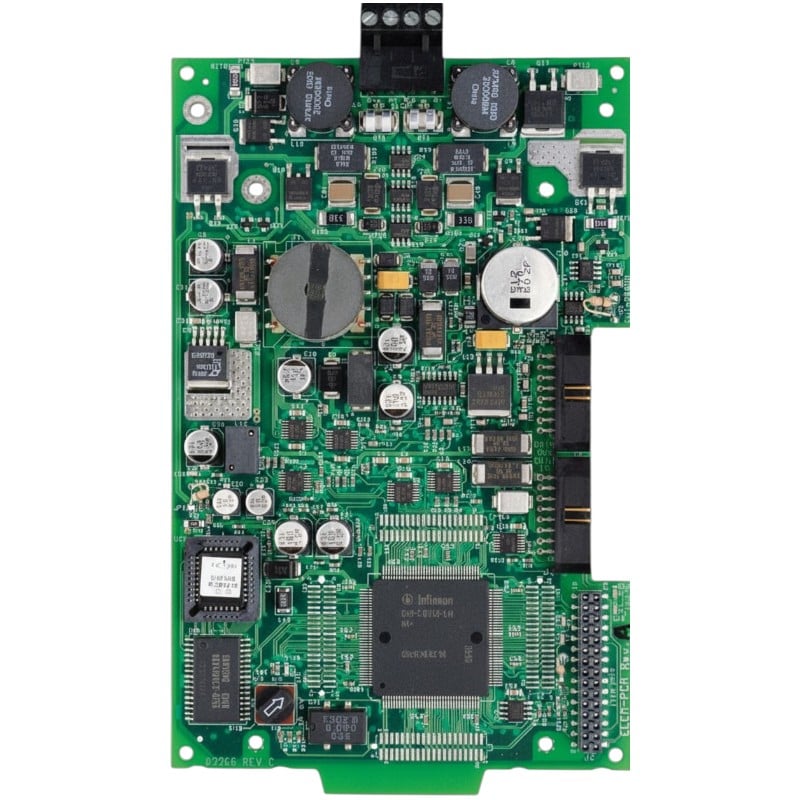

Notifier LCM-320 ONYX Addressable SLC Loop Control Module
- Regular price
- $595.00
- Sale price
- $595.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LCM-320
Description
The Notifier LCM-320 is a Loop Control Module designed to add additional Signaling Line Circuits (SLCs) to NOTIFIER ONYX® Series fire alarm control panels. It provides addressable loop expansion capability for NFS-3030, NFS2-3030, and compatible systems, supporting long-distance SLC communication and improved network flexibility. The module is used in commercial fire alarm installations requiring additional device capacity within a compact control panel configuration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Fire Alarm Systems |
| Part Number | LCM-320 |
| Subcategory | Loop Control Module |
| Product Type | Addressable SLC Loop Control Module |
| Series | ONYX® Series |
| Compatible Panels | NFS-3030, NFS2-3030 |
| Compatible Expander | LEM-320 Loop Expander Module |
| Operating Voltage | 24 VDC nominal, 27.6 VDC maximum |
| SLC Channels | 1 additional Signaling Line Circuit |
| Maximum Loop Length | Up to 12,500 ft (3,810 m) |
| Wiring Type | Twisted-pair, unshielded or shielded |
| Supported Wire Gauge | 12 AWG to 18 AWG |
| Class B Loop Resistance | 50 ohms maximum per branch |
| Class A/Style 6 & 7 Resistance | 50 ohms maximum per loop length |
| Maximum Current Consumption | 130 mA |
| Maximum SLC Current | 400 mA |
| Communication Type | Supervised addressable SLC communication |
| Installation Type | Plug-in module |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Humidity Rating | 93% ±2% RH non-condensing at 90°F (32°C) |
| Certifications | UL, ULC, FM Approved, CSFM, FDNY |
| Application | Commercial addressable fire alarm expansion |
| Weight | Approximately 0.50 lbs |
Information About LCM-320
The LCM-320 is part of the NOTIFIER ONYX® Series loop control module family, developed to expand intelligent fire alarm control panels with additional SLC channels. The module provides plug-in installation, built-in degraded mode operation, and compatibility with LEM-320 loop expander modules for scalable system growth. It supports Class B (Style 4) SLC wiring with extended loop distances up to 12,500 feet using appropriate twisted-pair wiring. The LCM-320 is designed for use with NFS-3030, NFS2-3030 fire alarm control panels and integrates with NOTIFIER addressable devices for advanced detection and monitoring applications.
Key Features:
- SLC Loop Expansion: Adds additional Signaling Line Circuits to NOTIFIER ONYX® Series fire alarm control panels.
- ONYX® Series Compatibility: Designed for NFS-3030 and NFS2-3030 systems with support for expanded loop configurations.
- Long Distance Communication: Supports SLC wiring distances up to 12,500 ft (3,810 m) on Class B Style 4 loops.
- LEM-320 Compatibility: Allows connection of Loop Expander Modules for additional SLC capacity.
- Plug-In Installation: Provides simple installation through direct module insertion into compatible fire alarm panels.
- Degraded Mode Operation: Maintains improved system survivability during certain communication or fault conditions.
- Multiple Loop Support: Enables multiple addressable loops within a compact fire alarm enclosure.
- Supervised SLC Operation: Provides monitored, power-limited communication for connected intelligent devices.
- Flexible Wiring Support: Operates with 12 AWG through 18 AWG twisted-pair wiring configurations.
- High Device Capacity: Expands system capability for larger addressable fire detection networks.
- Compact Module Design: Optimizes panel space while adding additional loop functionality.
- Agency Approved Design: Listed for UL, ULC, FM, CSFM, FDNY, and other regional approvals.
The LCM-320 delivers the reliability and precision required for addressable fire alarm loop expansion and intelligent detection system integration.
