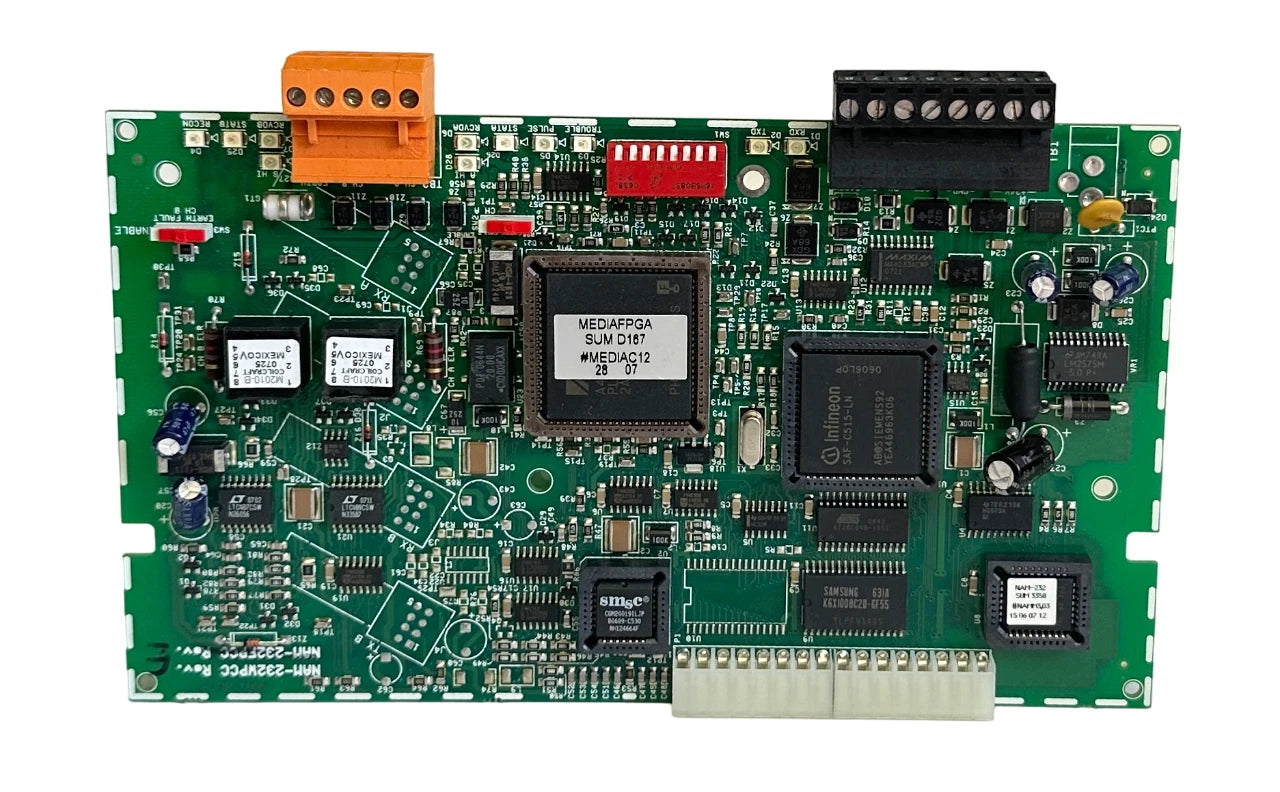

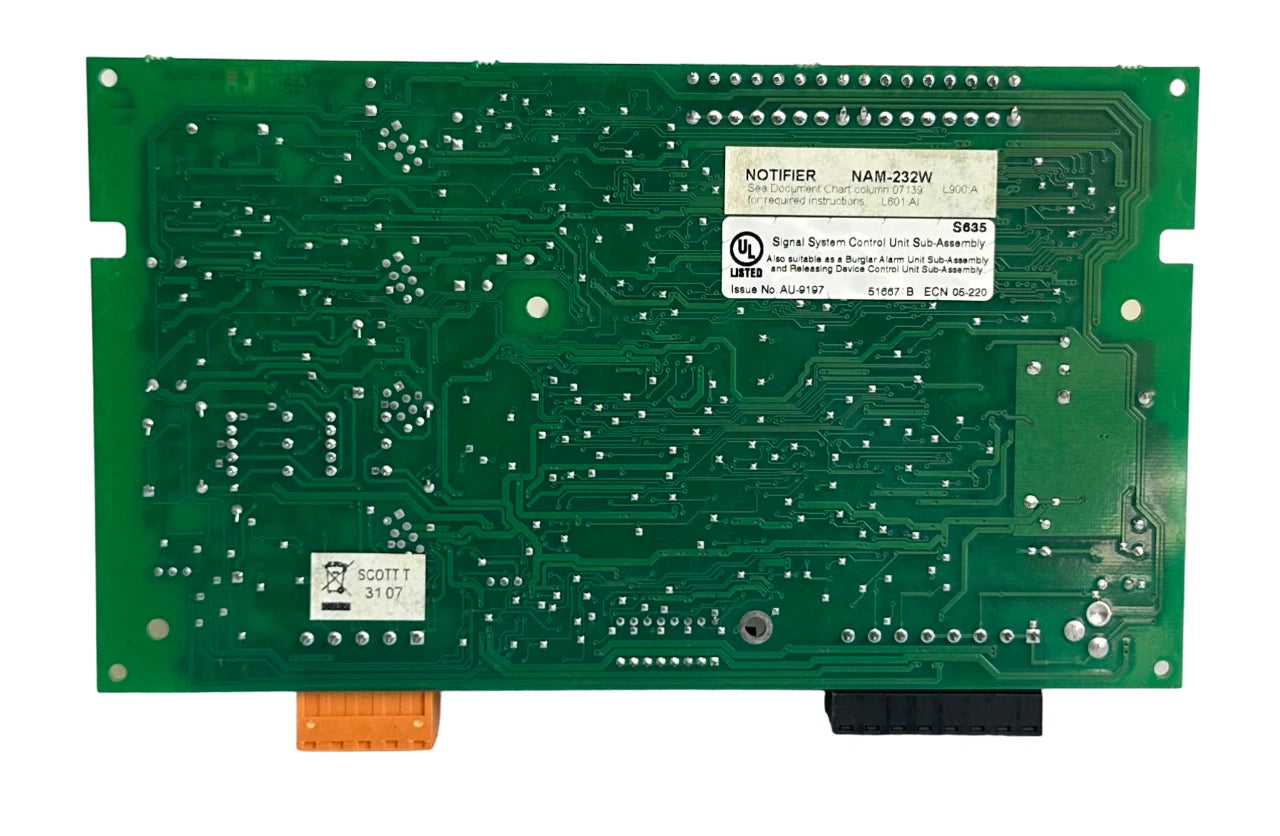

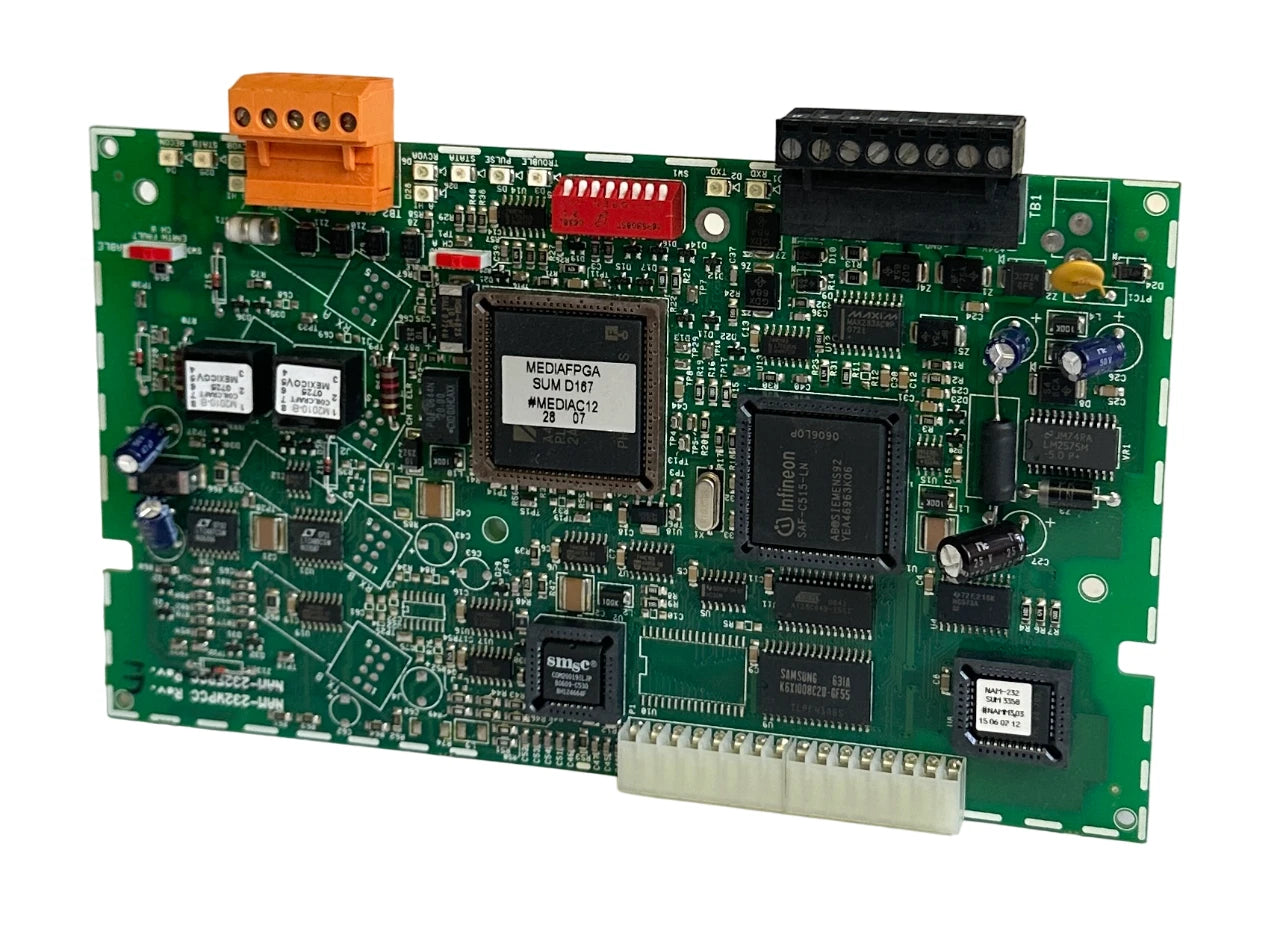

Notifier NAM-232W Twisted-Pair Network Adapter Module
- Regular price
- $1,425.00
- Sale price
- $1,425.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NAM-232W
Description
The Notifier NAM-232W is a network adapter module that connects compatible AFP-series fire alarm control panels to the NOTI•FIRE•NET communication network using twisted-pair wiring. It interfaces with the panel through an EIA-232 serial connection and provides network communication for AFP-200, AFP-300, and AFP-400 fire alarm control panels.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Fire Safety |
| Part Number | NAM-232W |
| Subcategory | Fire Alarm Network Modules |
| Product Type | Network Adapter Module |
| Network System | NOTI•FIRE•NET (NFN) |
| Compatible Control Panels | AFP-200, AFP-300, AFP-400 |
| Panel Interface | EIA-232 (RS-232) Serial Port |
| Network Medium | Twisted-Pair Wire |
| Network Channels | Two |
| Transmission Rate | 312.5 Kbaud |
| Data Handling | Data regenerated at each network node |
| Electrical Isolation | Isolation between network nodes |
| Monitoring Configuration | DIP-switch selectable single-port or dual-port monitoring |
| Network Drill Option | DIP-switch selectable |
| Earth Fault Detection | Per-channel selectable detection |
| Diagnostic Indicators | LED status indicators |
| Dimensions | 12.5 × 10 × 4 in |
| Weight | 1.5 lbs |
Information About NAM-232W
The NAM-232W is a Notifier wire-medium Network Adapter Module designed for integrating legacy AFP-series panels into a NOTI•FIRE•NET network. It communicates with the host fire alarm control panel through an EIA-232 (RS-232) serial port and operates over a two-channel twisted-pair network bus. The module transmits network data at 312.5 Kbaud and regenerates data at each network node to maintain communication integrity. Electrical isolation between nodes and selectable monitoring, network drill, and earth fault detection functions support network supervision and diagnostics.
Key Features:
- Twisted-Pair Networking: Connects compatible fire alarm panels to NOTI•FIRE•NET using copper twisted-pair wiring.
- AFP Panel Compatibility: Designed for use with AFP-200, AFP-300, and AFP-400 fire alarm control panels.
- RS-232 Interface: Connects to the host control panel through an EIA-232 serial communication port.
- Dual-Channel Network Bus: Supports a two-channel twisted-pair network communication architecture.
- 312.5 Kbaud Transmission: Provides high-speed NFN data communication at 312.5 Kbaud.
- Data Regeneration: Regenerates network data at each node to maintain signal integrity across the network.
- Electrical Isolation: Provides isolation between network nodes to help prevent faults from propagating between panels.
- Diagnostic and DIP Controls: Includes diagnostic LEDs and DIP-switch selectable monitoring, network drill, and per-channel earth fault detection options.
The NAM-232W delivers the reliability and precision required for integrating compatible fire alarm control panels into supervised NOTI•FIRE•NET communication networks.
