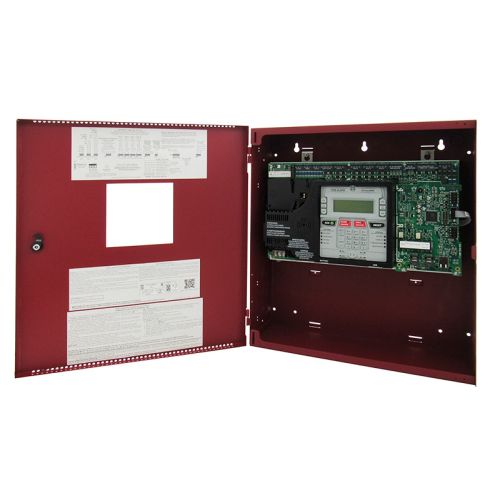

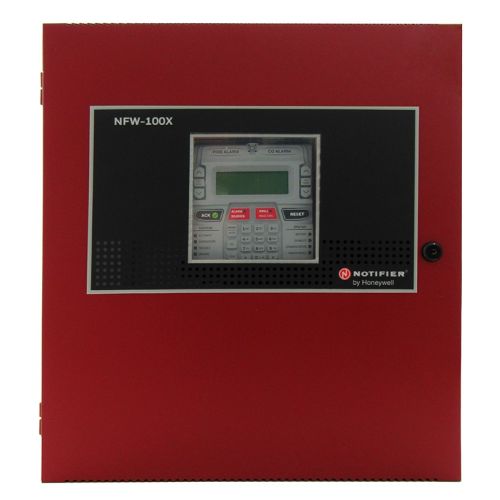

NOTIFIER NFW-100XR Intelligent Addressable Fire Alarm Control Panel
- Regular price
- $1,985.00
- Sale price
- $1,985.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NFW-100XR
Description

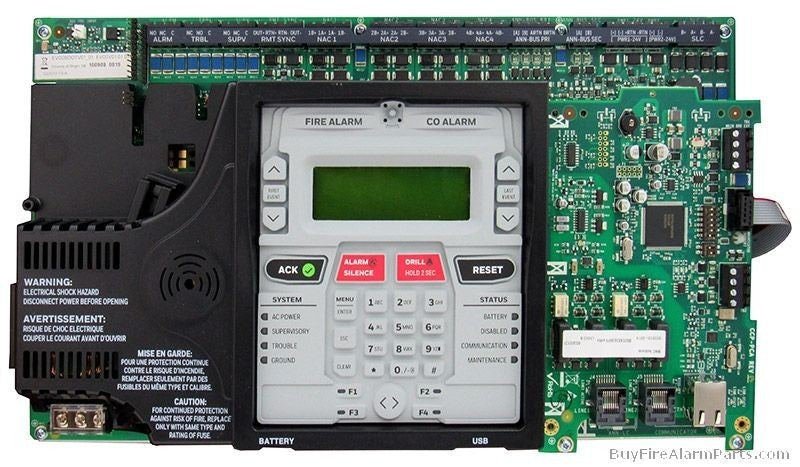

The NOTIFIER NFW-100XR is an intelligent addressable fire alarm control panel designed to manage up to 198 addressable points for centralized fire detection and notification. It supports FlashScan and CLIP protocols while integrating notification circuits, programmable relays, communication capability, and standby battery support in a single control platform.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | NOTIFIER |
| Category | Fire Alarm Systems |
| Part Number | NFW-100XR |
| Subcategory | Fire Alarm Control Panels |
| Manufacturer | Honeywell |
| Product Type | Intelligent Addressable Fire Alarm Control Panel |
| Device Capacity | 198 Addressable Devices |
| Addressable Capacity | 99 Detectors + 99 Modules |
| Communication Protocol | FlashScan and CLIP |
| Primary Power | 120/240 VAC Auto-Sensing, 50/60 Hz |
| NAC Circuits | 4 Class A/B |
| System Output | 2.7 A Total Shared Across NACs and ANN-BUS |
| Relays | 2 Programmable Form-C + 1 Fixed Trouble Relay |
| Communicator | IPOTS-COM |
| Battery Support | 7–18 Ah; Cabinet Holds Up to Two 18 Ah Batteries |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Listing | UL 864 |
| Dimensions | 1.82 × 16.82 × 19.00 in |
| Weight | 16.00 lb |
Information About NFW-100XR
The NFW-100XR is a NOTIFIER intelligent fire alarm control panel manufactured by Honeywell for addressable commercial life-safety systems. Its signaling architecture supports up to 99 addressable detectors and 99 addressable modules, providing a total capacity of 198 points using FlashScan and CLIP protocols. The panel incorporates four Class A/B notification appliance circuits, programmable Form-C relays, an IPOTS-COM communicator, and shared system power for connected notification and ANN-BUS equipment. Designed for protected indoor installations, it supports auto-sensing 120/240 VAC primary power and standby batteries ranging from 7 to 18 Ah.
Key Features:
- 198-Point Capacity: Supports up to 99 addressable detectors and 99 addressable modules.
- FlashScan and CLIP: Supports compatible devices using NOTIFIER FlashScan and CLIP communication protocols.
- Four NAC Circuits: Provides four configurable Class A/B notification appliance circuits.
- Auto-Sensing Input: Accepts 120/240 VAC, 50/60 Hz primary power for installation flexibility.
- Integrated Relays: Includes two programmable Form-C relays and one fixed trouble relay.
- Communication Capability: Includes an IPOTS-COM communicator for supported system communications.
- Battery Backup Support: Accommodates 7–18 Ah standby batteries, with cabinet space for two 18 Ah batteries.
- UL 864 Listed: Designed and listed to applicable UL 864 requirements for fire alarm control units.
The NFW-100XR delivers the reliability and precision required for intelligent addressable fire detection, notification, communication, and centralized life-safety system control.
