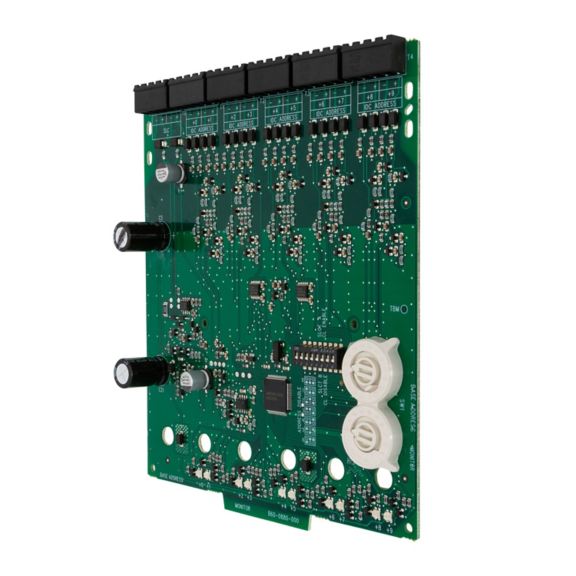

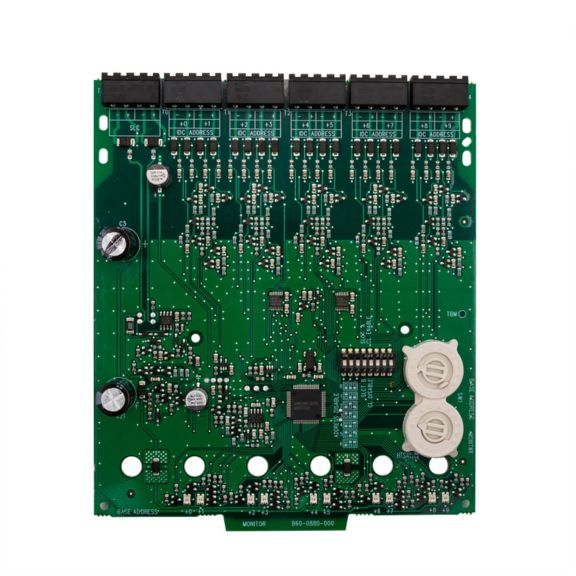

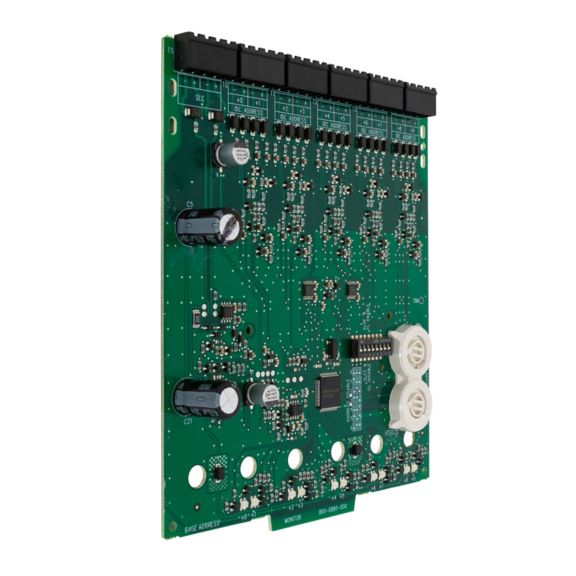

NMM-100-10 | Notifier Ten-Input Addressable Monitor Module
- Regular price
- $1,527.00
- Sale price
- $1,527.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NMM-100-10
Description
The Notifier NMM-100-10 is a ten-input monitor module designed to interface normally open contact devices with FireWarden series intelligent fire alarm control panels. It provides ten addressable Class B or five Class A initiating device circuits and reports supervised device status (normal, open, or short) to the panel. The NMM-100-10 features panel-controlled LED indicators and rotary address switches for flexible system configuration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Fire Alarm Systems |
| Part Number | NMM-100-10 |
| Subcategory | Addressable Monitor Modules |
| Number of Inputs | 10 Class B or 5 Class A |
| Standby Current | 3.5 mA (all addresses used) |
| Alarm Current | 55 mA (all LEDs ON) |
| Maximum IDC Voltage | 10.2 VDC |
| Maximum IDC Current | 240 μA |
| Maximum IDC Wiring Resistance | 1500 ohms |
| Maximum SLC Wiring Resistance | 40 or 50 ohms (panel dependent) |
| Wire Gauge | 12 to 18 AWG |
| Operating Temperature (UL) | 32°F to 120°F (0°C to 49°C) |
| Humidity (UL) | 10% to 85% non-condensing |
| Dimensions | 6.8" H × 5.8" W × 1.25" D |
| Shipping Weight | 0.76 lb |
| Listings | UL S635, FM Approved, CSFM Approved, ULC S635 (A version) |
| Weight | 0.76 lb |
Information About NMM-100-10
The NMM-100-10 is an addressable monitor module used in intelligent fire alarm systems to connect devices such as pull stations, waterflow switches, and security contacts to a FireWarden series control panel. The first module address is selectable from 01 to 90, with the remaining nine addresses automatically assigned sequentially, and up to two unused addresses may be disabled. Each point is independently supervised while sharing a common SLC input and supervisory supply. The module supports both Class A and Class B wiring configurations and includes removable plug-in terminal blocks for simplified installation.
Key Features:
- Ten Addressable Inputs: Supports ten Class B or five Class A initiating device circuits.

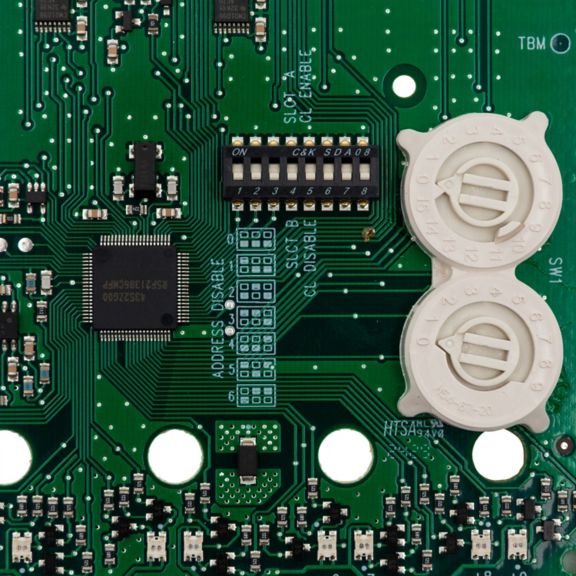

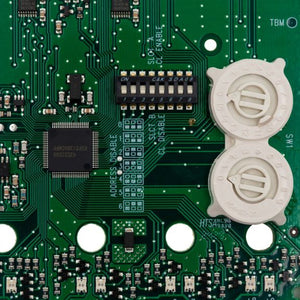

- Sequential Address Assignment: First address set via rotary switches; remaining nine auto-assign sequentially.
- Supervised Monitoring: Reports normal, open, and short circuit conditions to the control panel.
- Panel-Controlled LED Indicators: Green LEDs per point with blink, latch on, or latch off control.
- Class A or Class B Operation: Configurable wiring by removing shunt for Class A.
- Removable Terminal Blocks: Accepts 12–18 AWG wiring for simplified installation and servicing.
- Flexible Mounting Options: Compatible with CHS-6 chassis, BB-25 cabinet, and BB-XP cabinet.
- Agency Approved: UL Listed (S635), FM Approved, CSFM Approved, ULC Listed (NMM-100-10A).
The NMM-100-10 delivers the reliability and precision required for multi-point monitoring in intelligent fire alarm systems.
