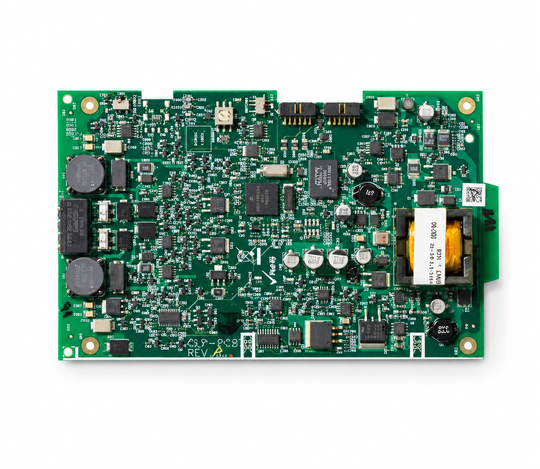

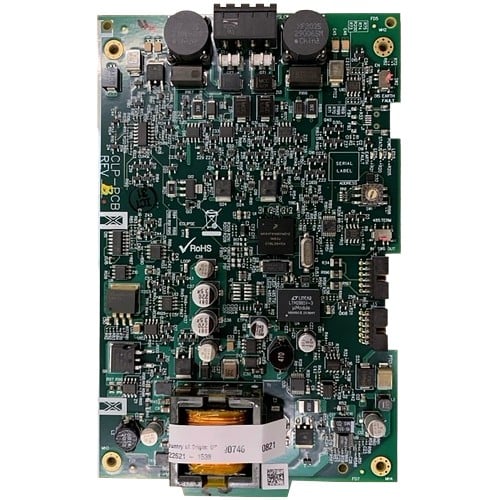

Notifier SLM-318 Signaling Line Module for INSPIRE N16 Fire Alarm Control Panels
- Regular price
- $687.00
- Sale price
- $687.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SLM-318
Description
The Notifier SLM-318 is a signaling line module designed to expand the capacity of NOTIFIER INSPIRE™ N16 Series Fire Alarm Control Panels by adding additional Signaling Line Circuits (SLCs). Factory-configured for FlashScan protocol with Self-Test detector support, the Notifier SLM-318 delivers reliable addressable communication and scalable system expansion for commercial fire alarm installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Fire Alarm Systems |
| Part Number | SLM-318 |
| Subcategory | Signaling Line Module |
| Compatible Series | NOTIFIER INSPIRE™ N16 Series |
| Product Type | Signaling Line Circuit Expansion Module |
| Supported Devices per Loop | Up to 318 intelligent addressable devices |
| Maximum Loop Cards per FACP | 10 (1 onboard plus up to 9 SLM-318 modules) |
| Communication Protocol | FlashScan (factory default), CLIP (field configurable by license) |
| Self-Test Detector Support | Yes |
| SLC Wiring | Class B, twisted unshielded |
| Maximum SLC Distance | 12,500 ft (3,810 m) |
| Operating Voltage | 15–32 VDC |
| Standby Current | Less than 1 mA |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Installation | Plug-in module |
| System Feature | Built-in degraded mode for increased survivability |
| Approvals | UL/ULC Listed, FM Approved, CSFM, FDNY, OSHPD, IBC 2024 Seismic Certified |
| Application | Expansion of addressable signaling line circuits for fire alarm control panels |
| Weight | Approximately 0.4 lb (0.18 kg) |
Information About SLM-318
The SLM-318 is an expansion module developed for the NOTIFIER INSPIRE™ N16 Series fire alarm control panel platform. It provides one additional Signaling Line Circuit capable of supporting up to 318 intelligent addressable devices while allowing the control panel to accommodate as many as ten loop cards in a single system. The module is supplied with FlashScan protocol enabled and supports NOTIFIER Self-Test intelligent detectors, while CLIP protocol can be activated through field licensing for compatible installations. Its plug-in design, built-in degraded mode, and long-distance communication capability make it suitable for large commercial, healthcare, educational, and industrial fire protection systems.
Key Features:
- Supports Up to 318 Devices: Provides one SLC loop capable of connecting up to 318 intelligent addressable devices.
- N16 System Expansion: Allows the N16 Series FACP to support up to ten total loop cards.
- FlashScan Protocol: Factory programmed for high-speed FlashScan communication.
- CLIP Protocol Compatible: Individual modules can be field licensed for CLIP operation.
- Self-Test Detector Support: Fully compatible with NOTIFIER Self-Test intelligent detection devices.
- Long SLC Distance: Supports Class B SLC wiring up to 12,500 ft (3,810 m).
- Built-In Degraded Mode: Maintains system survivability during communication faults.
- Plug-In Installation: Modular design simplifies installation and servicing.
- Mixed Protocol Operation: Supports simultaneous FlashScan and CLIP cards within the same control panel.
- Industry Certifications: Listed and approved by UL/ULC, FM, CSFM, FDNY, OSHPD, and certified for seismic applications.
The SLM-318 delivers the reliability and precision required for expanding addressable fire alarm communication loops in advanced life safety systems.
