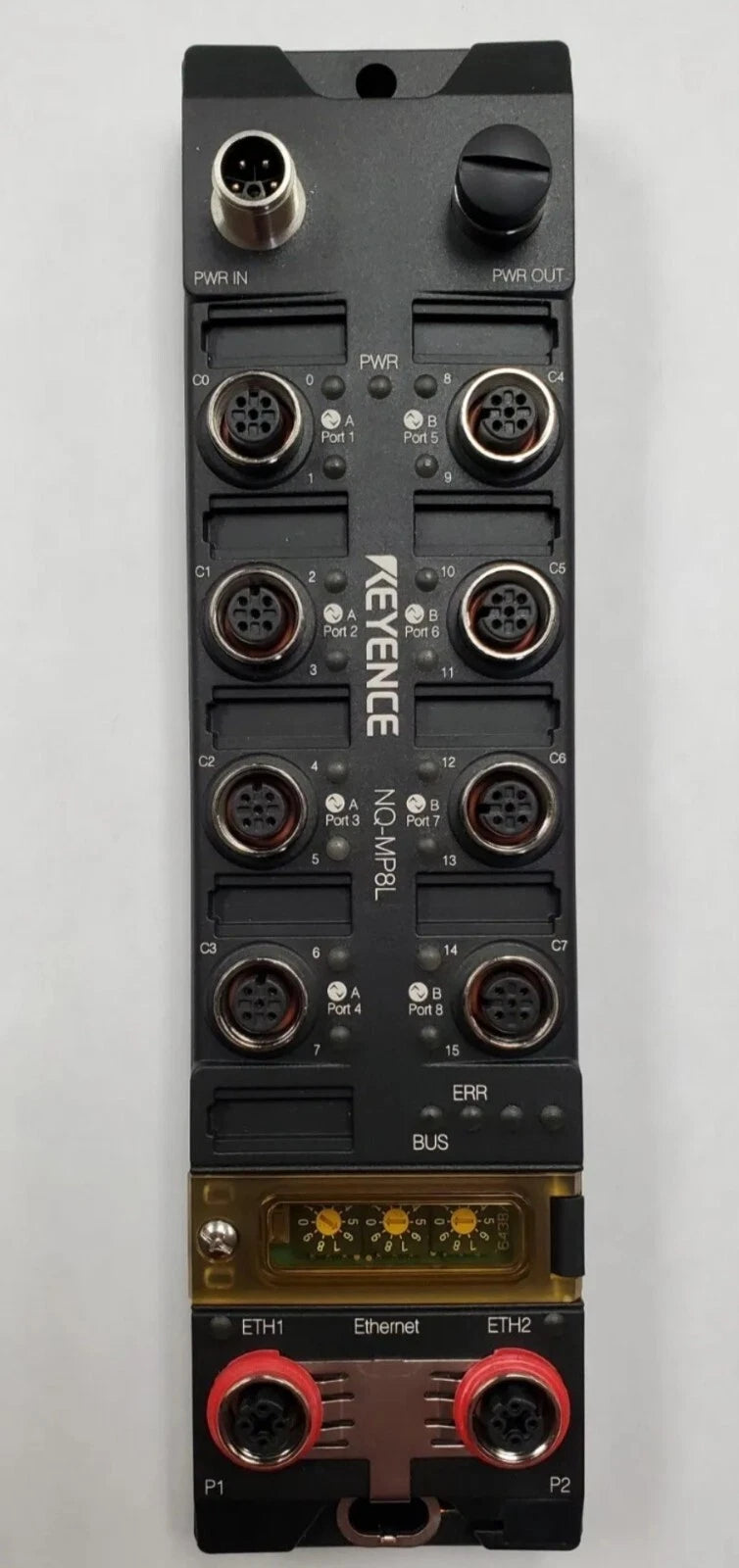

NQ-MP8L | Keyence 8-Port IO-Link Master, Multi-Protocol (EtherNet/IP, PROFINET, Modbus/TCP), IP69K
- Regular price
- $852.00
- Sale price
- $852.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: NQ-MP8L
Description
The Keyence NQ-MP8L is an 8-port multi-protocol IO-Link master module designed for industrial automation and sensor integration. Supporting EtherNet/IP™, PROFINET, and Modbus/TCP, it provides seamless communication between field devices and control systems with 10/100 Mbps network speed and rugged IP69K-rated construction.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Computer |
| Part Number | NQ-MP8L |
| Subcategory | Communication Converter |
| Network Compatibility | EtherNet/IP™, PROFINET, Modbus/TCP |
| Communication Speed | 10 Mbps / 100 Mbps |
| Network Connector | M12 4-pin female D-code |
| Power Supply Connector | M12 5-pin male/female L-code (IN/OUT) |
| Power Voltage | 18 to 30 VDC (20.4–28.8 V during IO-Link) |
| Allowable Current | V1 & V2: max. 9 A each; total 11 A |
| Current Consumption | V1: 180 mA max; V2: 90 mA max |
| Number of IO-Link Ports | 8 ports, configurable as IO-Link / DI / DO |
| IO-Link Standard | Version 1.1 compliant |
| Transmission Speed | COM1: 4.8 kbps, COM2: 38.4 kbps, COM3: 230.4 kbps |
| Process Data Size | Input: Max 32 bytes / Output: Max 32 bytes |
| DI Inputs | Up to 12 (PNP type, 11 V or higher ON) |
| DO Outputs | Up to 4 (PNP type, 2 A per port, short-circuit protected) |
| Leakage Current | 0.1 mA or lower |
| Residual Voltage | 1 V or lower |
| Enclosure Rating | IP65 / IP67 / IP69K |
| Ambient Temperature | -40°C to +70°C (-40°F to +158°F) |
| Relative Humidity | 35 to 85 % RH (No condensation) |
| Vibration Resistance | 5–150 Hz / 20 G, 10 sweeps per axis |
| Shock Resistance | 15 G / 11 ms, 3 times in each axis |
| Housing Material | PA6-GF30 reinforced resin |
| Connector Material | SUS303 stainless steel |
| Weight | Approx. 530 g (1.17 lbs) |
Information About NQ-MP8L
The NQ-MP8L belongs to Keyence’s NQ Series, offering advanced connectivity and flexible configuration for modern automation networks. It operates from a nominal 24 VDC (18–30 VDC) power supply through M12 L-coded connectors, ensuring safe and reliable connections. Each of its 8 IO-Link ports can be configured as IO-Link, digital input (DI), or digital output (DO), supporting up to 12 individual PNP inputs and 4 PNP outputs. With IP65/67/69K environmental protection, high vibration resistance, and wide operating temperatures, the NQ-MP8L is built for harsh industrial conditions while maintaining stable real-time communication with controllers.
Key Features:
- Multi-Protocol Compatibility: Supports EtherNet/IP™, PROFINET, and Modbus/TCP for seamless PLC integration.
- High-Speed Communication: Operates at 10 Mbps / 100 Mbps, ensuring fast and reliable data transfer.
- 8 Configurable IO-Link Ports: Each M12 5-pin female A-code port supports IO-Link, DI, or DO operation.
- Robust Power Distribution: Dual M12 5-pin L-coded power connectors for IN/OUT daisy-chaining up to 9 A per line.
- Flexible Input/Output Design: Up to 12 PNP inputs or 4 PNP outputs with short-circuit protection.
- Rugged Industrial Build: IP65/IP67/IP69K-rated housing withstands high-pressure washdowns and harsh conditions.
- Wide Temperature Range: Operates from -40°C to +70°C (-40°F to +158°F) for versatile deployment.
- High Shock & Vibration Resistance: Tested to 15 G / 11 ms shock and 5–150 Hz vibration, ensuring durability.
- Diagnostic & LED Indicators: Status LEDs and integrated network indicators simplify setup and monitoring.
- Compact & Reliable Construction: Aluminum-reinforced PA6-GF30 body with stainless-steel connectors for long service life.
The NQ-MP8L delivers the reliability, flexibility, and industrial-grade performance required for advanced sensor networks and IIoT automation systems.
