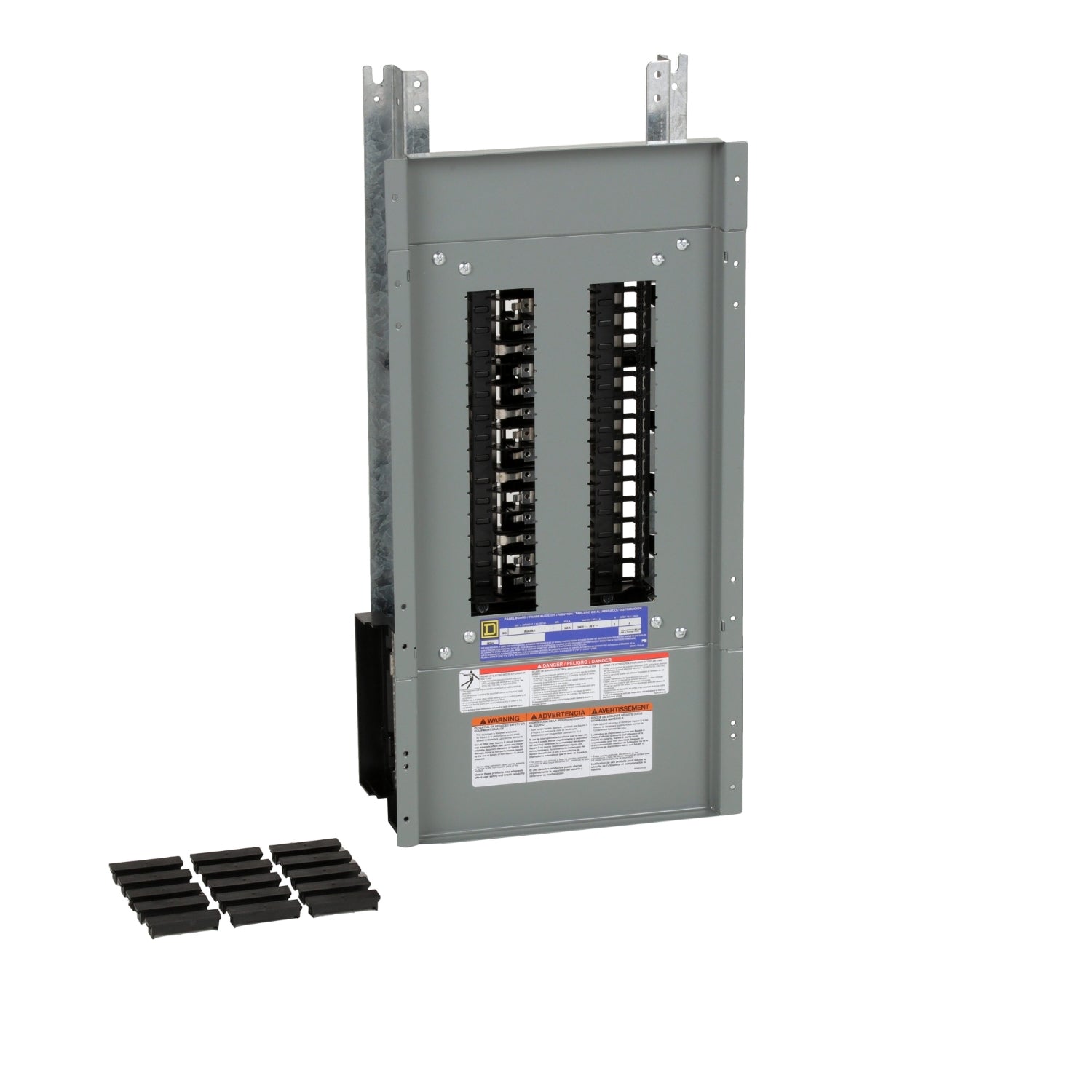

NQ430L1 | Schneider Electric Panelboard Interior
- Regular price
- $910.00
- Sale price
- $910.00
- Regular price
-
Do you need more quantity?
Product Description P/N: NQ430L1
Description
The NQ430L1 Panelboard Interior is part of the NQ Panelboards series, known for their versatility and comprehensive range of circuit breakers, accessories, and ready-to-install kits. It is designed for use with non-linear loads, featuring 200% rated neutrals. The interior is convertible from main lug to main breaker and supports a maximum voltage rating of 240 VAC and 48 VDC. This particular model has a main lug configuration, a rating of 100 A for three-phase systems, and an interrupt current rating of up to 65 kA.
Technical Specifications
Part # |
NQ430L1 |
Category |
Circuit Breaker |
Subcategory |
Load Center/Panel Board |
Number of Spaces |
30 |
Enclosure Nominal Height |
32 in (812.80 mm) |
Enclosure Nominal Width |
20 in (508.00 mm) |
Enclosure Nominal Depth |
5.75 in (146.05 mm) NEMA 1<br>6.5 in (165.10 mm) NEMA 3R/5/12 |
Line Rated Current |
100 A |
[Iu] Rated Interrupted Current |
10 kA<br>22 kA<br>65 kA |
Number of Phases |
3 phase 4 wires |
Voltage Rating |
240 V AC<br>48 V DC |
Height |
27 in (685.80 mm) |
Width |
10.44 in (265.18 mm) |
Information About NQ430L1
The NQ430L1 Panelboard Interior is a component of the NQ Panelboards series, renowned for its adaptability and comprehensive range of circuit breakers, accessories, and pre-configured kits. These panelboards are equipped with 200% rated neutrals, specifically tailored for accommodating non-linear loads. The NQ Panelboards are engineered for versatility, featuring a convertible design from main lug to main breaker configurations.
With a maximum voltage rating of 240 VAC and 48 VDC, the NQ430L1 Panelboard Interior is designed to meet various electrical requirements. This specific model is configured with a main lug and holds a rating of 100 A for three-phase systems. It boasts an interrupt current rating of up to 65 kA, ensuring robust protection against electrical faults.
Tailored for a 4-wire system with 30 circuits, this interior incorporates an aluminum bus bar, enhancing conductivity and durability. It is compatible with QOB, QOBVH, and QHB branch circuit breakers, facilitating seamless integration into diverse electrical setups across commercial and industrial applications.
