NQ430L1C | Schneider Electric Panelboard Interior
- Regular price
- $425.00
- Sale price
- $425.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: NQ430L1C
Description

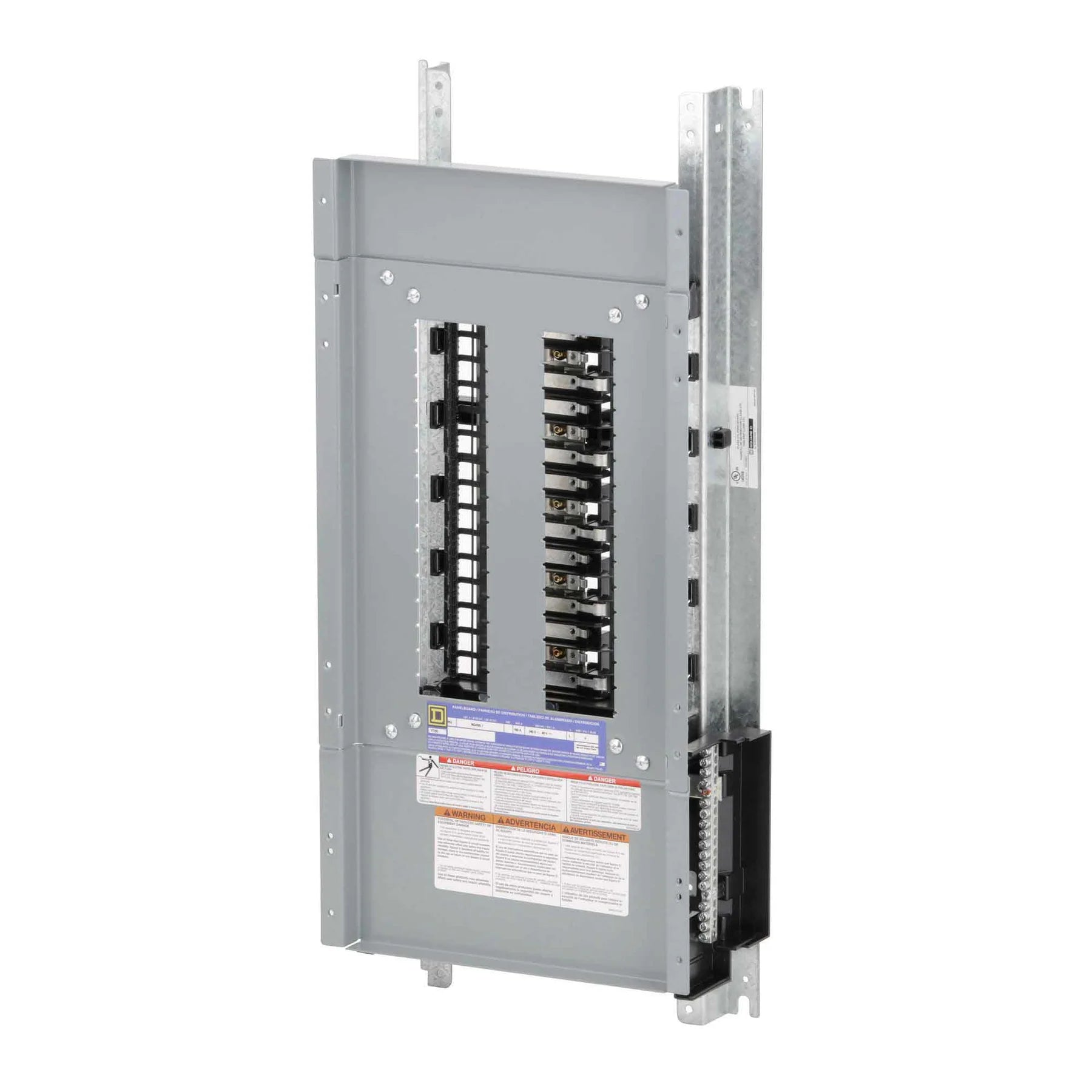

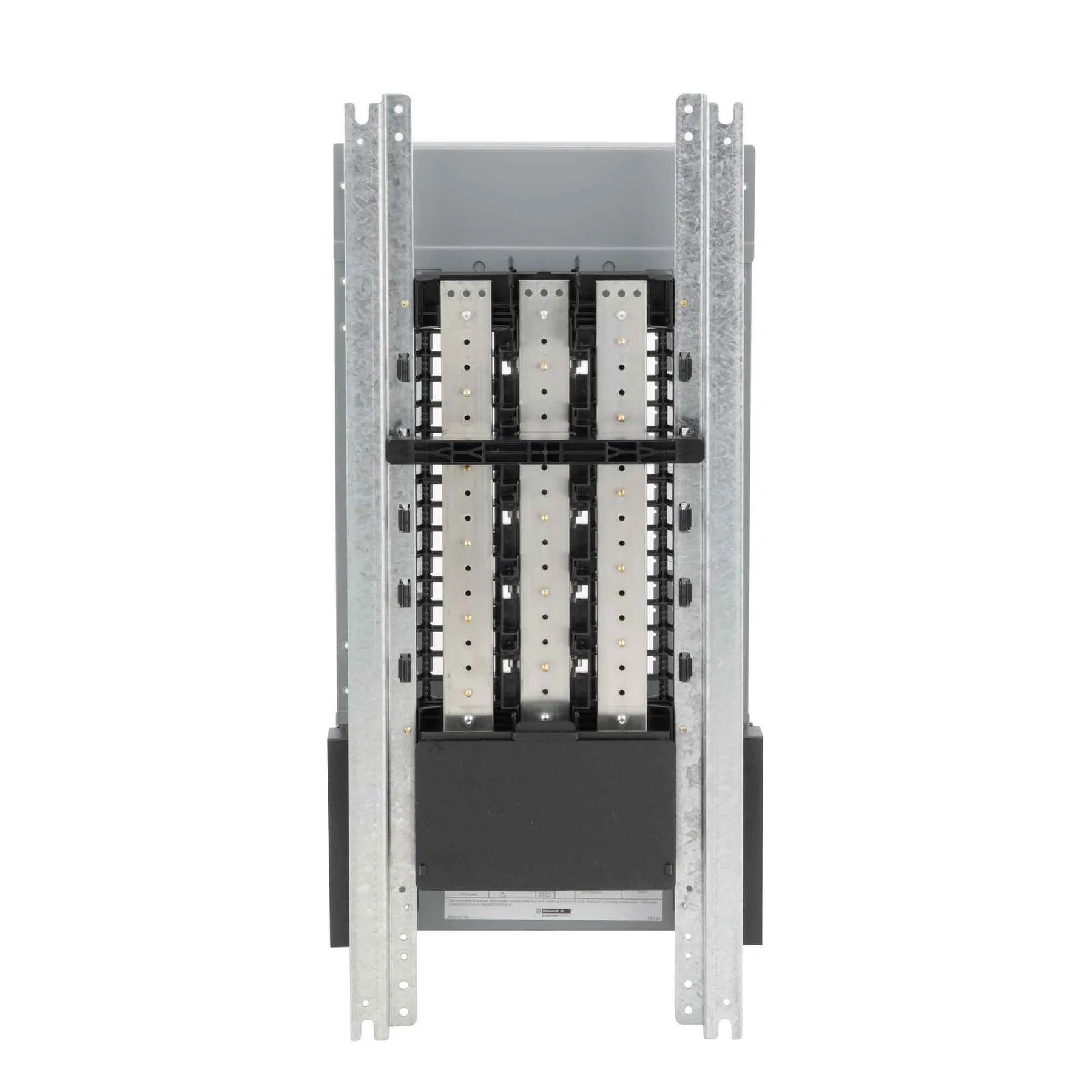

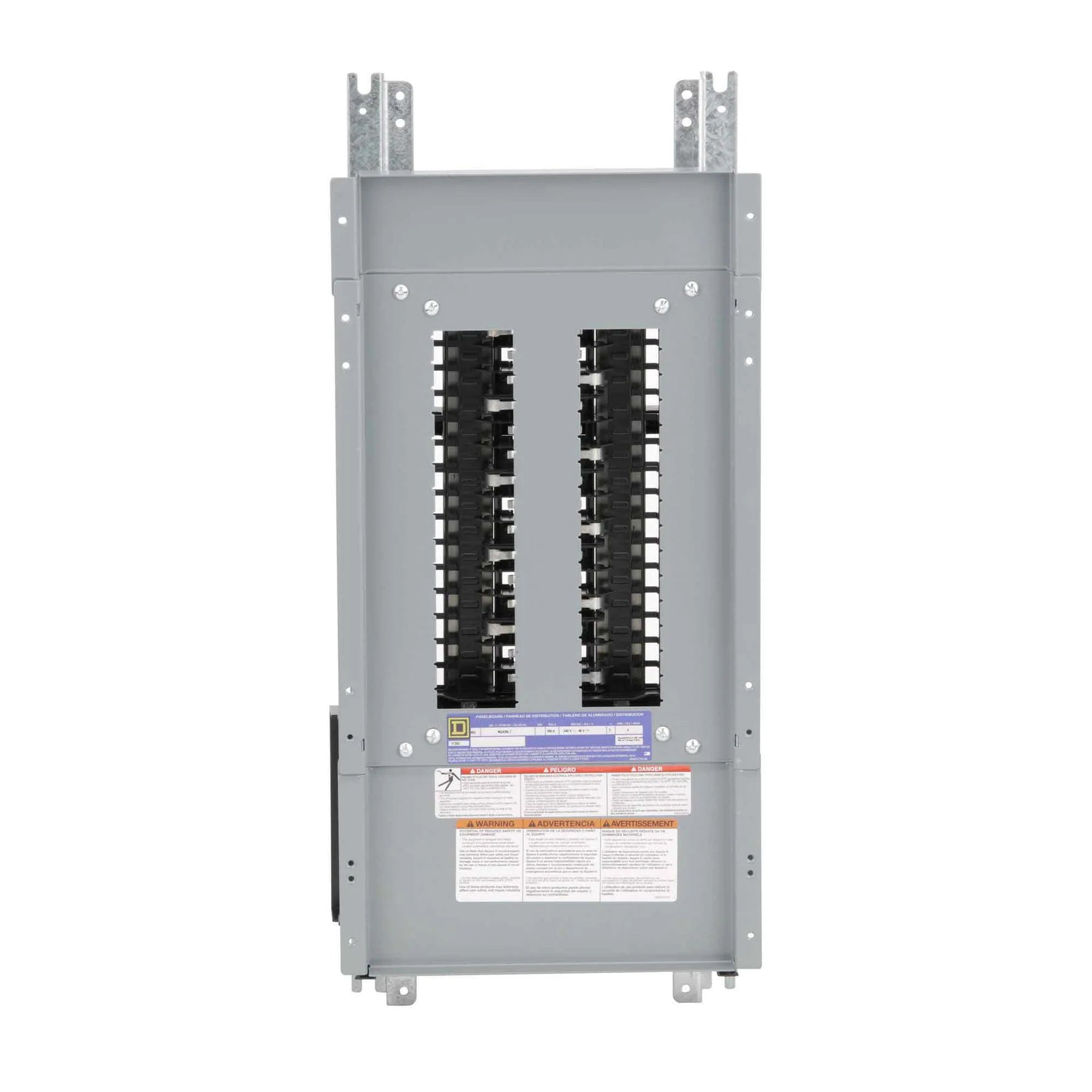

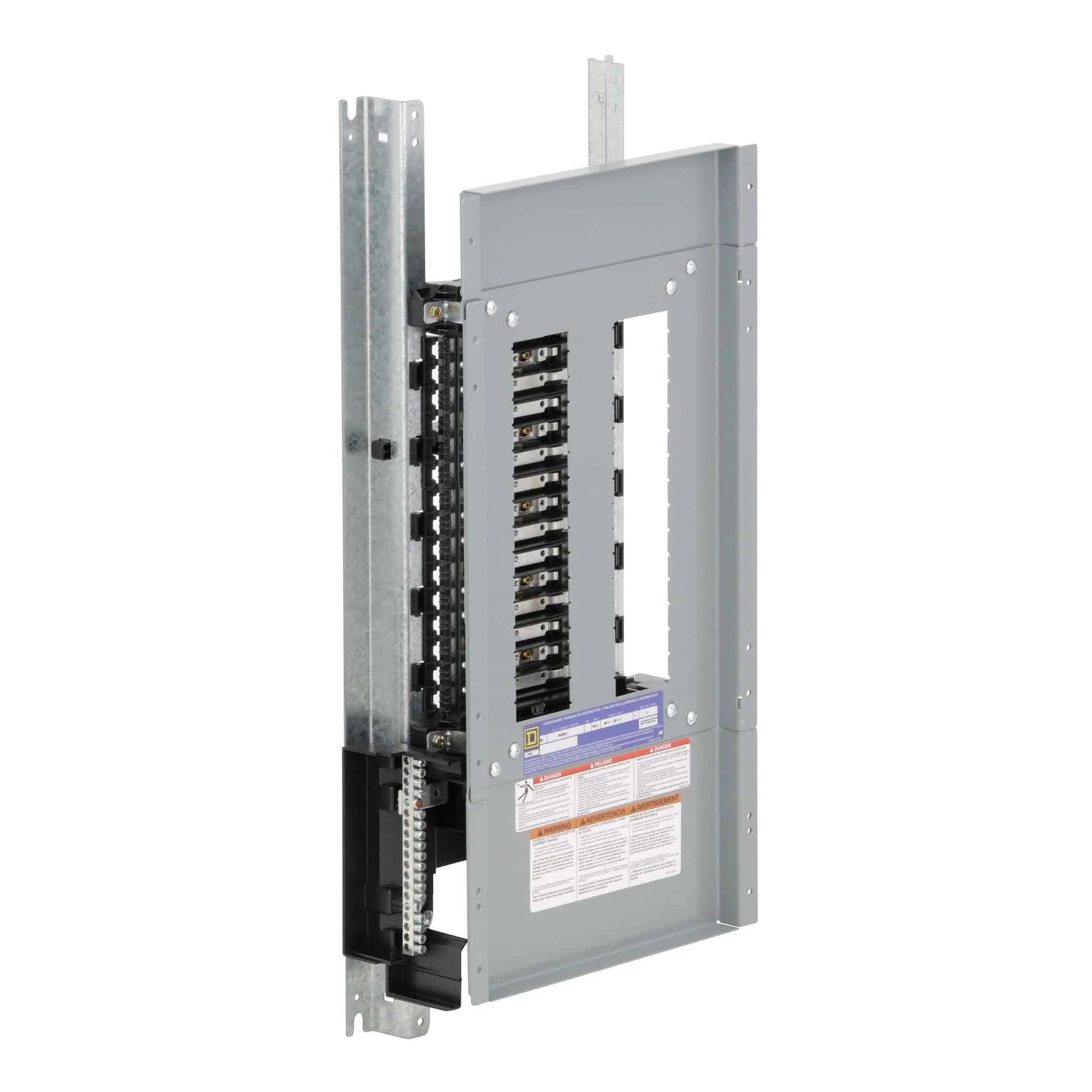

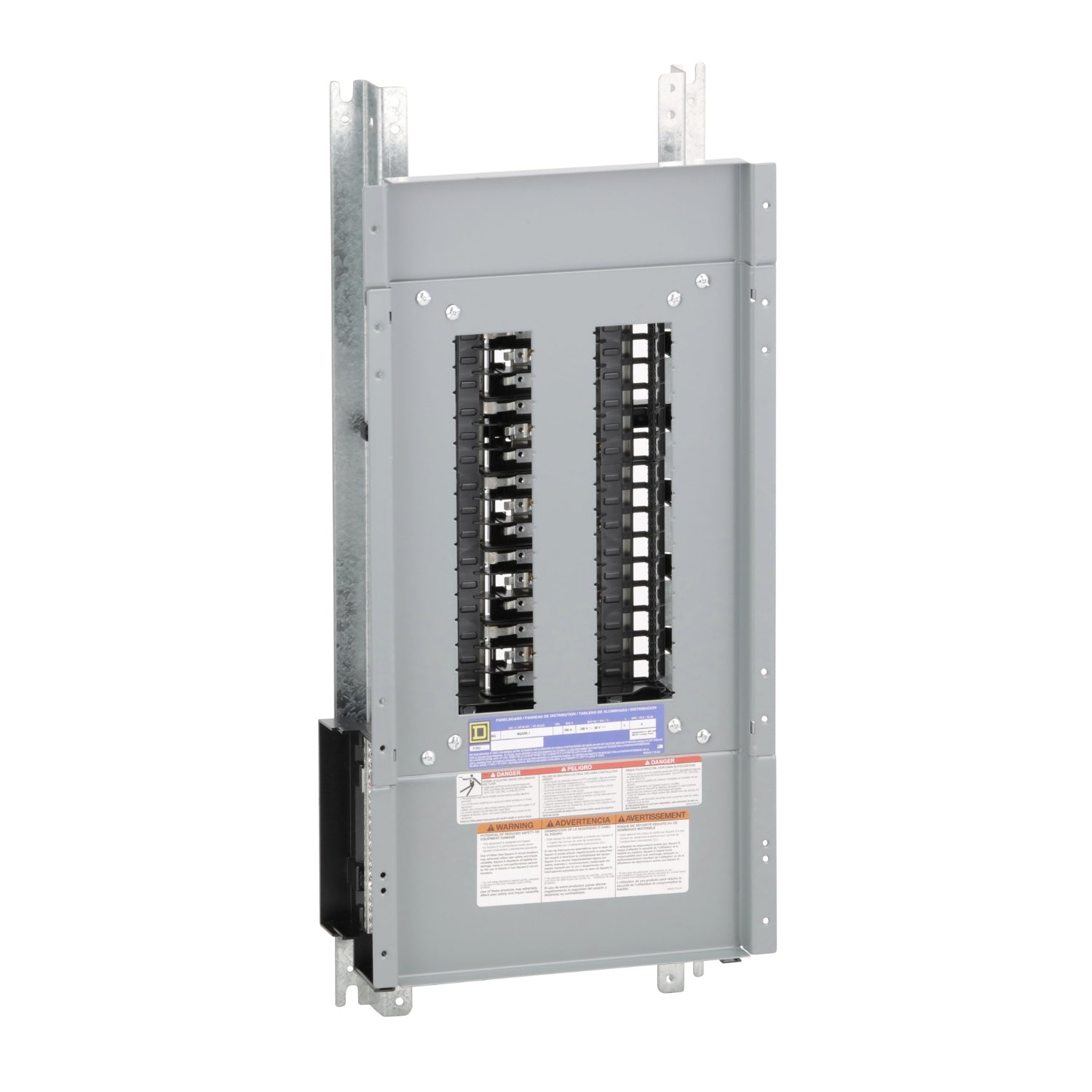

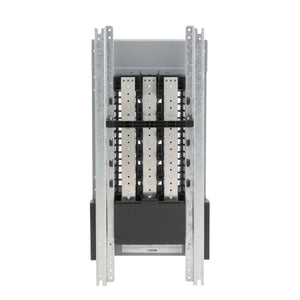

NQ430L1C is a Panelboard Interior by Schneider Electric, part of the NQ series. It is equipped with main lugs and supports a current rating of 100A. The panelboard has a copper bus and provides 30 pole spaces. It is designed for 3-phase, 4-wire systems and operates at 240VAC and 48VDC. This panelboard is suitable for distribution and control in various electrical applications, offering reliable performance and durability.
Technical Specifications
|
Part # |
NQ430L1C |
|
Category |
Circuit Breaker |
|
Subcategory |
Load Center/Panel Board |
|
Number of Spaces |
30 |
|
Enclosure Nominal Height |
32 in (812.80 mm) |
|
Enclosure Nominal Width |
20 in (508.00 mm) |
|
Enclosure Nominal Depth |
5.75 in (146.05 mm) NEMA 1 <br> 6.5 in (165.10 mm) NEMA 3R/5/12 |
|
[In] Rated Current |
100 A |
|
[Iu] Rated Interrupted Current |
10 kA <br> 22 kA <br> 65 kA |
|
Number of Phases |
3 phases, 4 wires |
|
Voltage Rating |
240 V AC <br> 48 V DC |
|
Connections - Terminals |
Lug line AWG 6...AWG 2/0 aluminum <br> Lug neutral AWG 6...AWG 2/0 aluminum |
|
Height |
27 in (685.8 mm) |
|
Width |
10.44 in (265.18 mm) |
Information About NQ430L1C
The NQ430L1C is a panelboard interior manufactured by Schneider Electric. This panelboard interior belongs to the NQ series and is designed with main lugs. The rated current for this model is 100A. It features a copper bus and provides 30 pole spaces for circuit breakers. The NQ430L1C panelboard is suitable for use in three-phase systems with four wires. The voltage ratings for this panelboard are 240VAC and 48VDC.
The enclosure dimensions for this panelboard interior are as follows: the nominal height is 32 inches (812.80 mm), the nominal width is 20 inches (508.00 mm), and the nominal depth is 5.75 inches (146.05 mm) for NEMA 1 enclosures and 6.5 inches (165.10 mm) for NEMA 3R/5/12 enclosures. The rated interrupted current ([Iu]) for this model is available in three specifications: 10 kA, 22 kA, and 65 kA.
This panelboard is designed for heavy-duty applications and is categorized under load centers and panel boards. It supports a three-phase, four-wire configuration, making it suitable for distribution applications in commercial and industrial settings. The connections for the terminals include lug line terminals that accommodate aluminum conductors ranging from AWG 6 to AWG 2/0, and lug neutral terminals that also accommodate aluminum conductors ranging from AWG 6 to AWG 2/0.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
IQElectro is not an authorized distributor.
