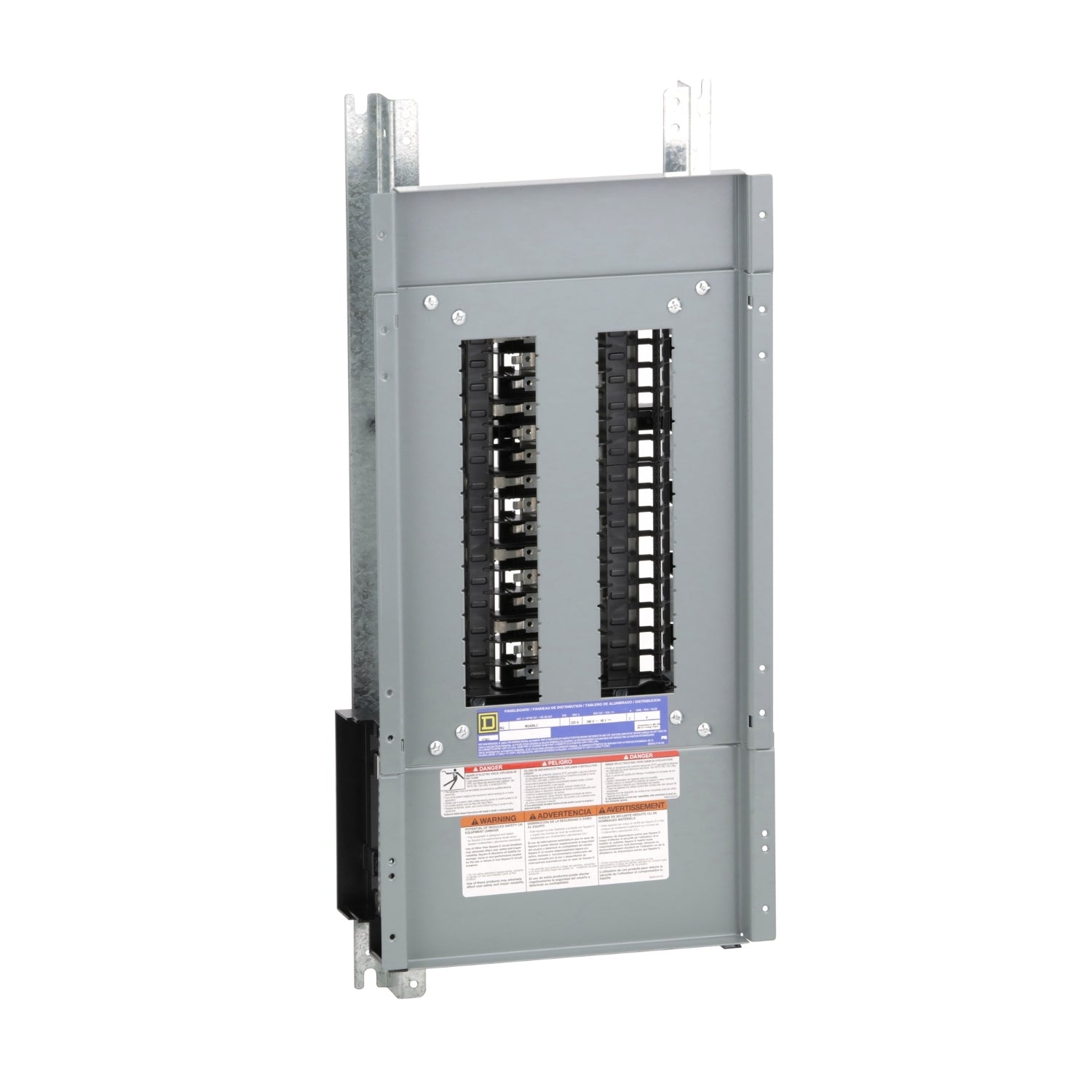

NQ430L2 | Schneider Electric Panelboard Interior
- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: NQ430L2
Description
Square D Panelboard Interior, 3-Phase, Series: NQ Series, 240 VAC/48 VDC, 225 A, 30 Spaces, Short Circuit Current Rating: 100 kA, HD/HG/HJ/HL/JD/JG/JJ/JL Breaker, 4-Wire Wiring Configuration, Tin Plated Aluminum Bus, Panel Mount, NEMA 3R/5/12, Aluminum Housing, 20 in W x 6-1/2 in D x 32 in H.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | NQ430L2 |
| Category | Circuit Breaker |
| Subcategory | Load Center/Panel Board |
| Amperage Rating | 225 A |
| Breaker Type | HD/HG/HJ/HL/JD/JG/JJ/JL |
| Bus Material | Tin Plated Aluminum |
| Dimensions | 20 in W x 6-1/2 in D x 32 in H |
| Enclosure Type | NEMA 3R/5/12 |
| Housing material | Aluminum |
| Mounting type | Panel |
| Number of Spaces | 30 |
| Series | NQ Series |
| Short Circuit Current Rating (kA) | 100 kA |
| Type | 3-Phase |
| Voltage Rating | 240 VAC/48 VDC |
| Wiring Configuration | 4-Wire |
Information About NQ430L2
The NQ430L2 from Schneider Electric is a versatile panelboard interior designed for efficient electrical distribution. It boasts an amperage rating of 225A, catering to various power distribution needs. The panelboard is compatible with multiple breaker types, including HD, HG, HJ, HL, JD, JG, JJ, and JL, providing flexibility in circuit protection options.
Constructed with tin-plated aluminum bus material, the NQ430L2 ensures reliable conductivity and corrosion resistance. Its dimensions are 20 inches in width, 6-1/2 inches in depth, and 32 inches in height, making it a compact yet powerful solution for electrical panels. The enclosure type is adaptable for NEMA 3R, 5, and 12 ratings, offering suitability for both indoor and outdoor environments, with robust protection against dust, water, and other elements.
The housing is made from durable aluminum, contributing to its lightweight and resilient design. The panelboard is mounted in a panel configuration, providing ease of installation and maintenance. With 30 available spaces, it allows for substantial circuit expansion and organization.
Belonging to the NQ Series, the NQ430L2 has a short circuit current rating of 100 kA, ensuring robust performance under fault conditions. It supports 3-phase systems with a voltage rating of 240 VAC and 48 VDC, catering to diverse electrical applications. The 4-wire wiring configuration enhances its compatibility with various setups, making the NQ430L2 a reliable and versatile choice for electrical distribution needs.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
