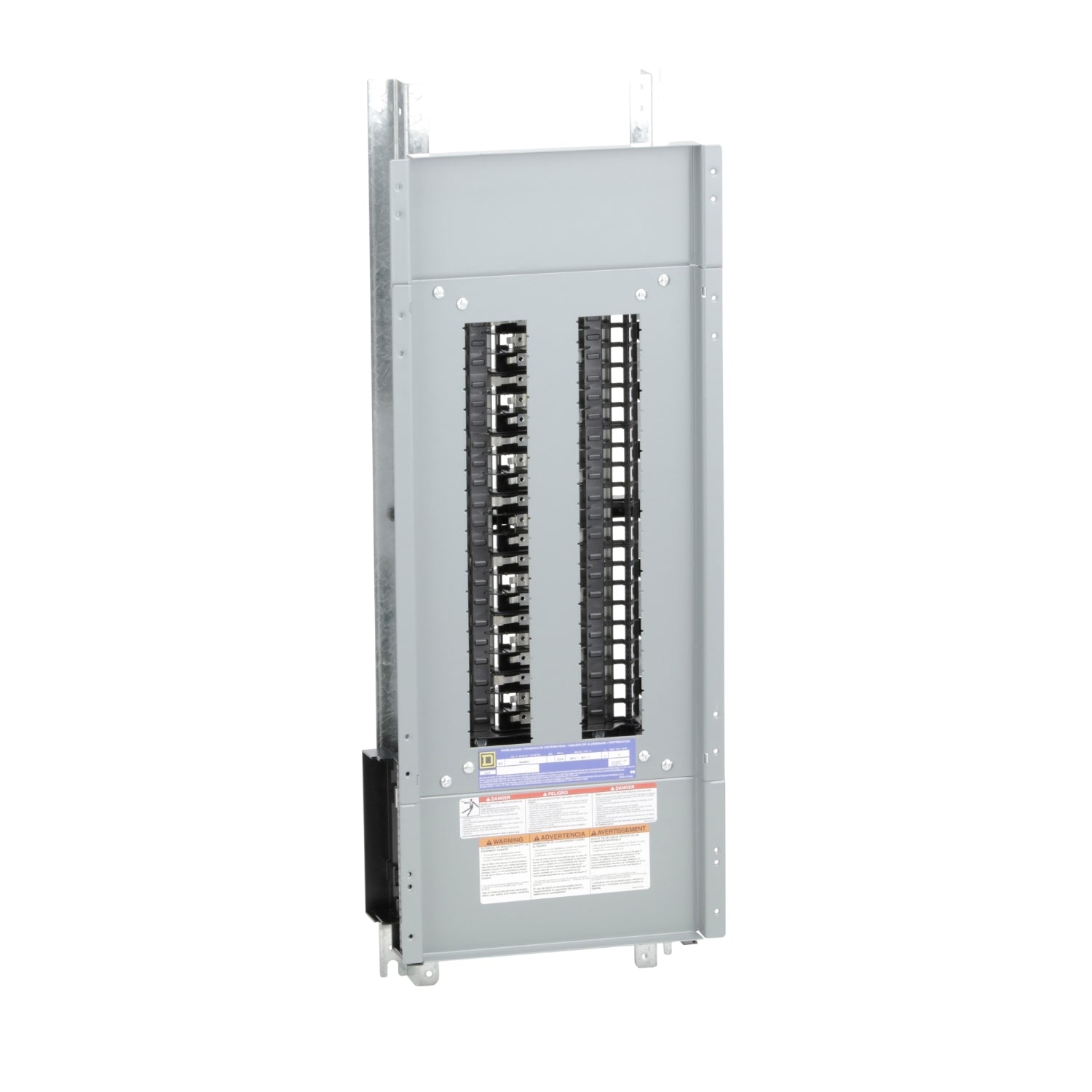

NQ442L2 | Schneider Electric Panelboard Interior
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: NQ442L2
Description
The NQ442L2 is a panelboard interior designed for NQ applications, featuring main lugs with a 225A rating. Constructed with aluminum bus, it offers 42 pole spaces for electrical connections. This panelboard interior is configured for 3-phase, 4-wire systems operating at 240VAC and 48VDC.
Schneider Electric's OsiSense electronic pressure switch boasts a 4-digit 7-segment display and operates in hysteresis switching mode. With a pressure rating of -1 bar and a supply voltage of 24Vdc, it includes 2 x solid-state outputs (PNP).
Technical Specifications
|
Part # |
NQ442L2 |
|
Category |
Circuit Breaker |
|
Subcategory |
Load Center/Panel Board |
|
Panelboard Type |
Main Lugs |
|
Product or Component Type |
Interiors |
|
Number of Spaces |
42 |
|
Enclosure Nominal Height |
38 in (965.20 mm) for NEMA 1 |
|
Enclosure Nominal Width |
20 in (508.00 mm) |
|
Enclosure Nominal Depth |
5.75 in (146.05 mm) for NEMA 1, 6.5 in (165.10 mm) for NEMA 3R/5/12 |
|
Line Rated Current |
225 A |
|
Number of Phases |
3 phase 4 wires |
|
Voltage Rating |
240 V AC |
|
Height |
33.00 in (838.20 mm) |
|
Width |
10.44 in (265.18 mm) |
|
Net Weight |
17.17 lb(US) (7.79 kg) |
Information About NQ442L2
The NQ442L2 Panelboard Interior is designed for use in NQ panelboards, featuring main lugs and an aluminum bus. It supports a line rated current of 225A and offers 42 pole spaces, suitable for 3-phase, 4-wire systems with a voltage rating of 240VAC and 48VDC. The interior measures 38 inches in nominal height, 20 inches in nominal width, and has a nominal depth of 5.75 inches for NEMA 1 enclosures, or 6.5 inches for NEMA 3R/5/12 enclosures.
This panelboard interior is engineered to provide efficient electrical distribution in various applications. With its main lug configuration, it offers flexibility in connecting power sources to downstream loads. The aluminum bus ensures reliable electrical conductivity while maintaining durability.
The NQ442L2 interior is designed to meet the demands of industrial and commercial environments. Its 42 pole spaces offer ample capacity for accommodating multiple circuit breakers and other electrical components, making it suitable for diverse electrical distribution setups.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
