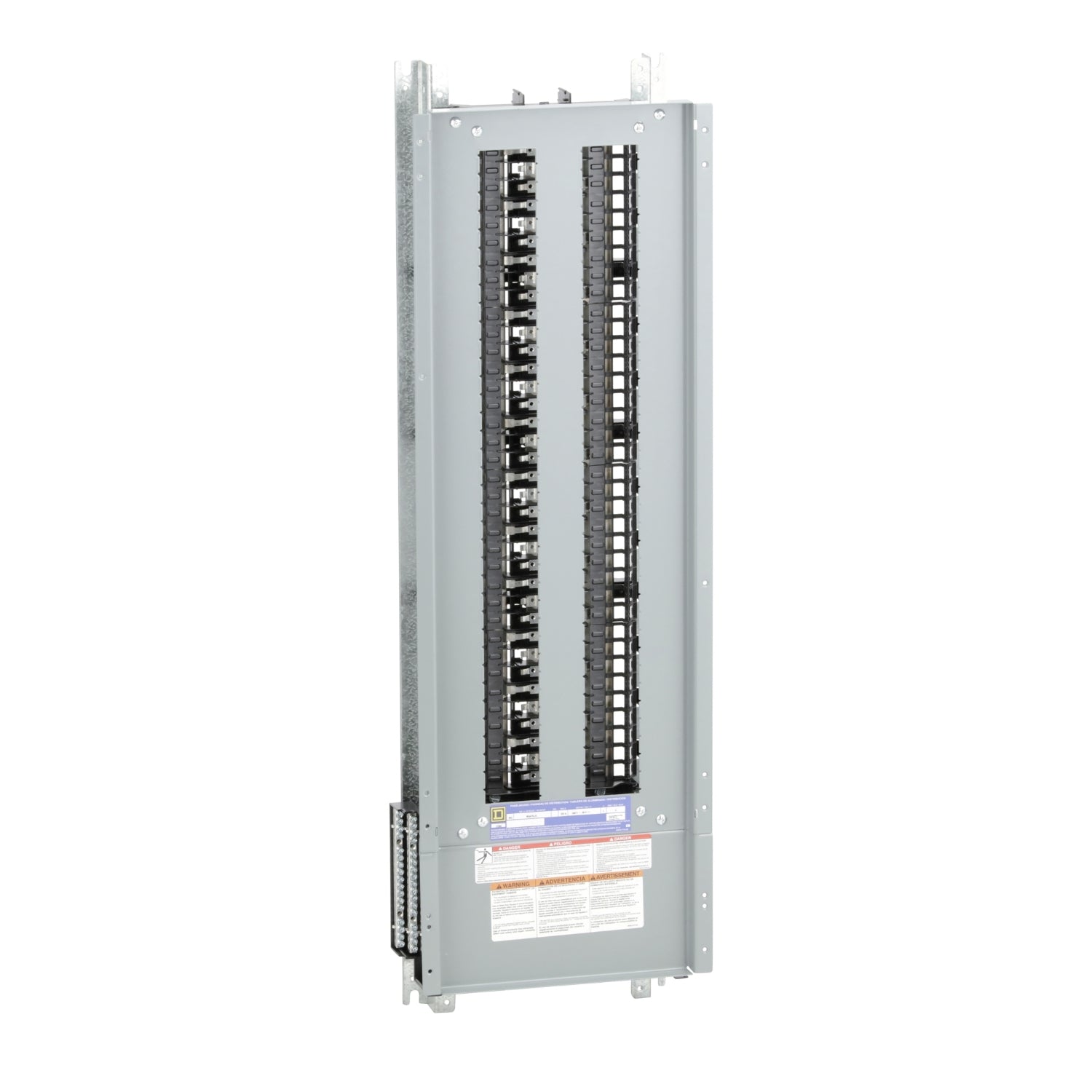

NQ472L2C | Schneider Electric Panelboard Interior
- Regular price
- $2,599.00
- Sale price
- $2,599.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: NQ472L2C
Description
The NQ472L2C is an NQ Panelboard Interior designed for versatile electrical distribution applications. It features main lugs and a copper bus bar, rated for 225A, accommodating three-phase, four-wire systems with a voltage rating of 240VAC and 48VDC. This interior provides 72 pole spaces and supports a maximum interrupt current rating of up to 65kA. It is compatible with QOB, QOBVH, and QHB branch circuit breakers. The NQ Panelboard Interior is convertible from main lug to main breaker configuration and is field convertible for top or bottom feed.
Technical Specifications
|
Part # |
NQ472L2C |
|
Category |
Circuit Breaker |
|
Subcategory |
Load Center Circuit Breaker |
|
Number of Spaces |
72 |
|
Enclosure Nominal Height |
44 in (1117.60 mm) |
|
Enclosure Nominal Width |
20 in (508.00 mm) |
|
Enclosure Nominal Depth |
5.75 in (146.05 mm) NEMA 1 |
|
|
6.5 in (165.10 mm) NEMA 3R/5/12 |
|
Line Rated Current |
225 A |
|
Number of Phases |
3 phase 4 wires |
|
Voltage Rating |
240 V AC |
|
|
48 V DC |
|
Connections - Terminals |
Lug line AWG 6...350 kcmil aluminum |
|
|
Lug neutral AWG 6...350 kcmil aluminum |
|
Height |
39 in (990.60 mm) |
|
Width |
10.44 in (265.18 mm) |
Information About NQ472L2C
NQ472L2C - Panelboard Interior, NQ, Main Lugs, 225A, Cu Bus, 72 Pole Spaces, 3 Phase, 4 Wire, 240VAC, 48VDC
NQ Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready-to-install kits. The NQ472L2C is an NQ Panelboard interior with a main lug, rated at 225A for three-phase systems. It has a maximum voltage rating of 240VAC and 48VDC. This model provides 200% rated neutrals suitable for nonlinear loads and is convertible from main lug to main breaker configurations. The interior supports up to 72 circuits and features a copper bus bar, offering robust electrical distribution and protection.
The interrupt current rating for the NQ472L2C interior is up to 65 kA, ensuring reliable performance under fault conditions. This panelboard interior is designed for a 4-wire system and is compatible with QOB, QOBVH, and QHB branch circuit breakers. The field-convertible design allows for top or bottom feed, enhancing installation flexibility. Factory-installed options include split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates, enabling customization for specific applications.
