NS-CA002 | Omron RGB and Video Input Unit
- Regular price
- $1,922.00
- Sale price
- $1,922.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: NS-CA002
Description

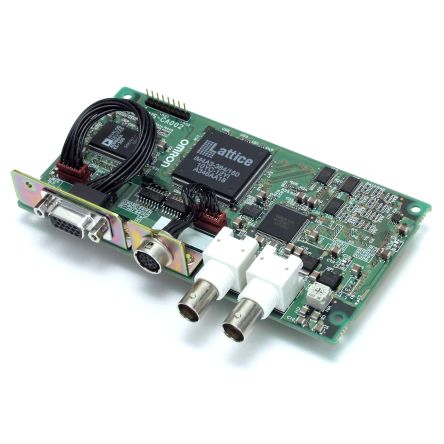

The Omron NS-CA002 is an RGB and video input unit designed to enhance the visual interface capabilities of NS series HMIs. With support for multiple video sources and selectable display resolutions, it allows efficient multimedia integration for operator terminals.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Omron |
| Category |
PLCs/Machine Control
|
| Part Number | NS-CA002 |
| Subcategory | PC Board PLC/Add-On Board |
| Series | NS |
| Video Input Ports | 2 ports |
| Analog RGB Input Port | 1 port |
| Console Output Port | 1 port |
| Video Display Size | Selectable up to 640 x 480 dots |
| Split Screen Video Display | Not supported |
| Video Picture Overlap | Supported. Functional objects, pop-up screens, and other objects can overlap a video display. |
| RGB Display Size | Fixed display; 1024 × 768 dots, 800 × 600 dots, and 640 × 480 dots |
| Simultaneous RGB and Video Display | Not supported |
| RGB Picture Overlap | Not supported. The RGB picture is always on the top layer. |
| Console Button Press and Hold | Supported. The external output signal stays ON as long as the command button or Multifunction Object is held down. |
| Video Capture | Supported |
Information About NS-CA002
The NS-CA002 is a dedicated input module within the Omron NS series that provides enhanced flexibility for displaying external video and RGB signals. It includes two video input ports and one analog RGB input, along with a console output port, enabling streamlined signal handling for industrial interface applications.
The unit supports video displays at resolutions up to 640 × 480 dots and fixed RGB display sizes at 1024 × 768, 800 × 600, and 640 × 480 dots. While simultaneous RGB and video display is not supported, video picture overlap is possible—enabling integration of functional objects, pop-up screens, and interface overlays. It also supports video capture and features console button press-and-hold recognition, making it ideal for advanced control and visualization use cases.
Key Features:
- Multiple Video Inputs: Includes two video input ports and one analog RGB input, offering flexibility for different visual sources.
- Selectable Display Sizes: Video display selectable up to 640 × 480 dots; RGB supports fixed display sizes including 1024 × 768.
- Video Picture Overlap: Allows video to be displayed behind interface objects like pop-up windows or multifunction buttons.
- Console Input Behavior: External output signal remains ON while buttons or objects are pressed, enabling intuitive command holding.
- Video Capture Support: Enables capture of video content directly through the unit for enhanced monitoring or review.
- Dedicated for NS Series: Fully compatible with Omron’s NS series HMIs, making installation and integration seamless.
The NS-CA002 provides advanced visual signal input capabilities for NS series terminals, with optimized video layering and input versatility.
