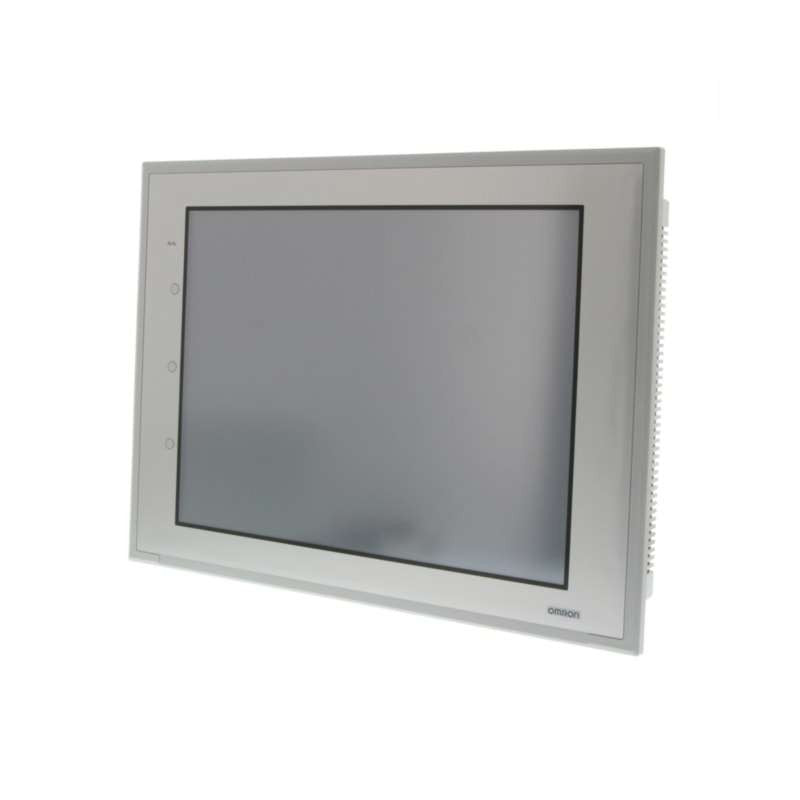

NS10-TV00-V2 | Omron Touch Screen HMI 10.4 Inch
- Regular price
- $3,200.00
- Sale price
- $3,200.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: NS10-TV00-V2
Description
The NS10-TV00-V2 is a 10.4-inch touch screen HMI from Omron’s NS Series, offering vibrant color display and intuitive operator interface for automation systems. It features 256 on-screen colors, RS-232C communication, and 60 MB memory in a compact, panel-mounted design.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Omron |
| Category |
HMI / MMI / OIT
|
| Part Number | NS10-TV00-V2 |
| Subcategory | Operator Interface |
| Display Size | 10.4 inch |
| Display Type | HD TFT Color LCD |
| Resolution | 640 x 480 pixels |
| Display Colors | 256 (32,768 for BMP/JPG) |
| Communication Ports | 2 × RS-232C |
| Ethernet | No |
| Internal Memory | 60 MB |
| Supply Voltage | 24 VDC |
| Power Consumption | 25 W |
| Case Color | Ivory / Beige |
| Mounting Style | Panel mount |
| Series | Omron NS Series |
| Weight | 5.07 lbs |
Information About NS10-TV00-V2
The NS10-TV00-V2 is part of Omron’s advanced NS Series of human-machine interfaces (HMI), delivering reliable performance and rich visual clarity for machine control and process monitoring. This model features a 10.4-inch high-definition TFT LCD capable of displaying 256 on-screen colors (and up to 32,768 colors for image formats like BMP or JPG). With a resolution of 640 x 480 pixels, it ensures clear status feedback and operator instructions. It offers dual RS-232C ports for flexible serial device integration and supports up to 60 MB of internal memory, allowing complex screen data, recipes, and logging. Powered by 24 VDC, the unit consumes just 25 W and is housed in a beige/ivory front case for standard industrial panels. Although this version lacks Ethernet, it excels in applications where serial connectivity and robust local HMI control are sufficient.
Key Features:
- 10.4-Inch TFT Color Touchscreen: High-definition graphical display with sharp 640 x 480 resolution and vibrant rendering of 256 colors for real-time status visualization.
- Image Compatibility: Supports BMP and JPG images in up to 32,768 colors, enhancing screen design with detailed diagrams, icons, and indicators.
- Multiple Communication Interfaces: Equipped with two RS-232C serial ports for flexible connection to PLCs and other automation devices without relying on Ethernet.
- Large Internal Memory: Provides 60 MB of flash memory to store multiple screens, historical data, and recipes for advanced interface capabilities.
- Durable, Compact Design: Panel-mountable unit with 24 VDC operation and 25 W consumption, suitable for confined control cabinets or machine panels.
The NS10-TV00-V2 offers dependable HMI functionality with visual clarity and flexible serial communication, ideal for systems that require precise control without Ethernet networking.
