NS5-SQ10-V2 | Omron NS Series 5.7" TFT Touchscreen HMI Operator Interface
- Regular price
- $2,574.00
- Sale price
- $2,574.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NS5-SQ10-V2
Description

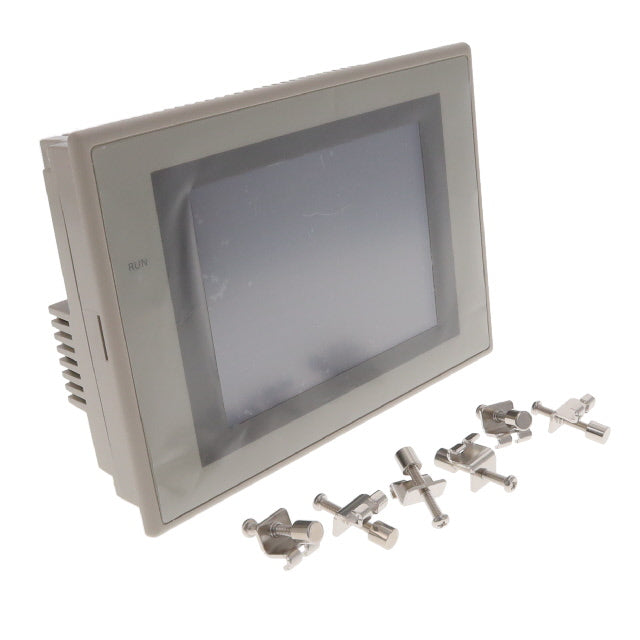

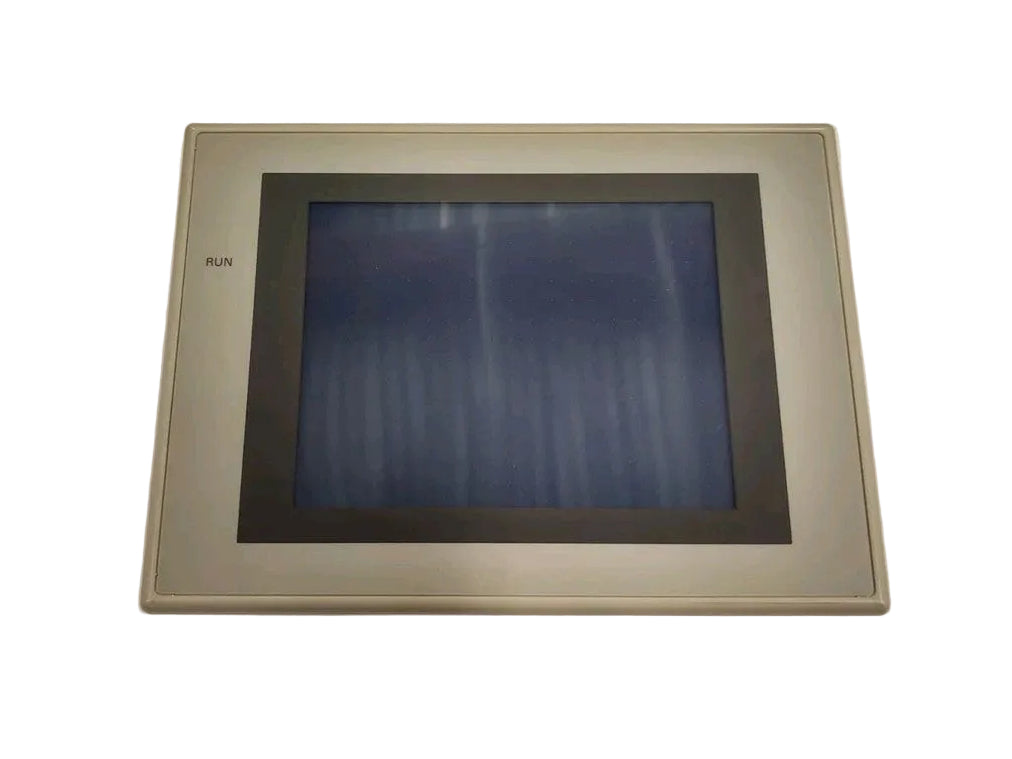

The Omron NS5-SQ10-V2 is a compact touchscreen human-machine interface designed for monitoring and controlling industrial automation systems. It features a 5.7-inch TFT color display with 320 × 240 resolution, providing clear visualization of machine status and process data. This HMI panel enables operators to interact with PLC-controlled equipment through an intuitive graphical interface.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | HMI / MMI / OIT |
| Part Number | NS5-SQ10-V2 |
| Subcategory | Operator Interface |
| Series | NS |
| Display Size | 5.7 in |
| Display Type | TFT color LCD touchscreen |
| Resolution | 320 × 240 pixels |
| Color Depth | Up to 32,768 colors |
| Memory Capacity | 60 MB |
| Supply Voltage | 24 VDC |
| Communication Ports | 2 × RS-232C, 1 × USB |
| Ingress Protection | IP65 (front panel) |
| Operating Temperature | 0°C to 50°C |
| Mounting Type | Flush panel mount |
| Panel Cutout Dimensions | 184 × 131 mm |
| Dimensions | 195 × 142 × 49 mm |
| Weight | 1.008 kg |
Information About NS5-SQ10-V2

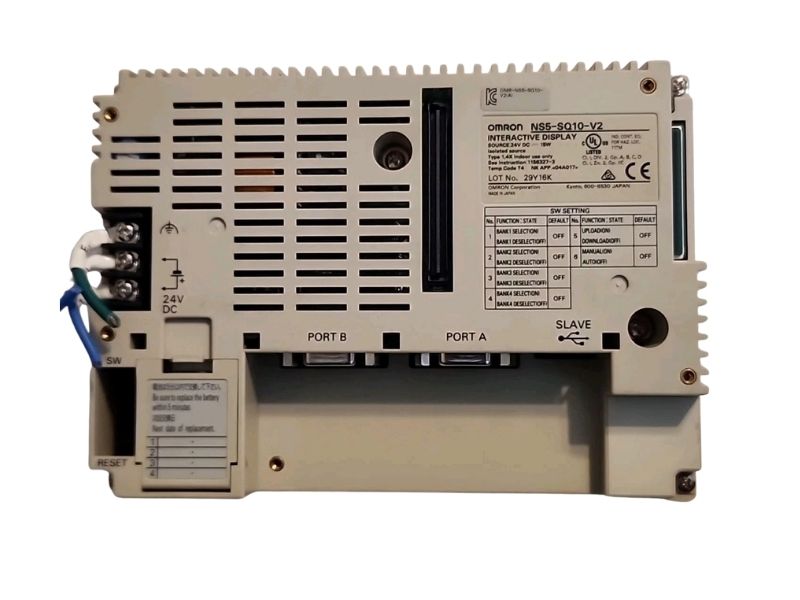

The NS5-SQ10-V2 is part of the Omron NS series of programmable operator interfaces used in factory automation and machine control applications. It allows operators to monitor machine performance, adjust parameters, and manage system operations through a touchscreen display. The panel supports communication through serial RS-232C ports and USB interfaces for connection with PLCs and industrial devices. Its IP65-rated front panel and flush-mount design allow installation in control cabinets and industrial machine panels.
Key Features:
-
5.7-Inch Touchscreen Display: Provides an interactive interface for machine monitoring and operator control.
-
TFT Color LCD Panel: Delivers clear visualization with a 320 × 240 pixel resolution.
-
Multi-Color Display Capability: Supports up to 32,768 colors for improved graphical interface design.
-
Dual Serial Communication Ports: Includes two RS-232C ports for PLC and device connectivity.
-
USB Interface Support: Enables configuration, data transfer, and system communication.
-
Built-In Program Memory: 60 MB memory allows storage of screen projects and control applications.
-
Industrial Protection Rating: IP65 front panel protection against dust and water exposure.
-
Panel Mount Installation: Designed for flush mounting into machine control panels.
The NS5-SQ10-V2 delivers the reliability and precision required for operator monitoring and control in industrial automation systems.
