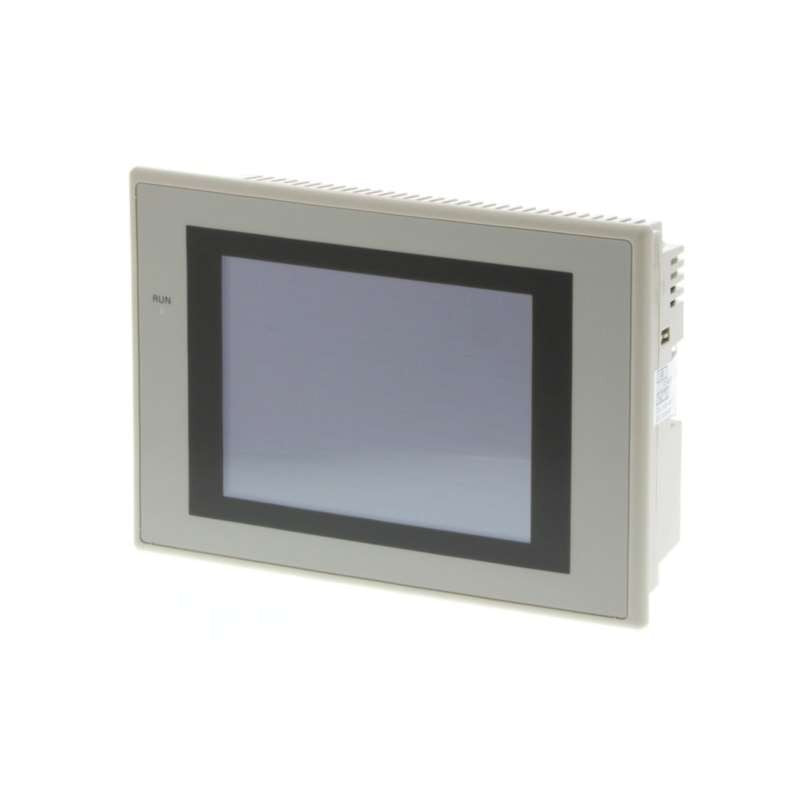

NS5-TQ11-V2 | Omron Operator Interface 5.7" Color
- Regular price
- $1,935.00
- Sale price
- $1,935.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: NS5-TQ11-V2
Description
The Omron NS5-TQ11-V2 is a 5.7-inch color operator interface designed to streamline communication between users and machines. It operates at 24 VDC and incorporates a TFT display with 256 colors, delivering clear and vibrant visual feedback for industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Omron |
| Category |
HMI / MMI / OIT
|
| Part Number | NS5-TQ11-V2 |
| Subcategory | Operator Interface |
| Series | NS |
| Video Input Unit Support | Not Supported |
| Controller Link Interface Unit (Wired) Support | Not Supported |
| Screen Data Capacity | 60 Mbytes |
| Voltage | 24 VDC |
| Case Color | Ivory |
| Standards | CU, CE |
| Built-In Ethernet Port | Yes |
| View Angle | Left/Right ±60°, Top 80°, Bottom 60° |
| Effective Display Area | Width 115.2 × Height 86.4 mm (5.7 inches) |
| Display Device | Color High-luminance TFT |
| Display Colors | 256 colors |
| Number of Dots | 320 Dot Horizontal × 240 Dot Vertical |
| Memory Card | Supported |
| Weight | 2.00 lbs |
Information About NS5-TQ11-V2
The NS5-TQ11-V2 is part of Omron's NS series, built to enhance human-machine interaction through robust display technology and reliable operation. Its color high-luminance TFT screen supports an effective resolution of 320 x 240 dots and provides wide viewing angles of ±60° horizontally and up to 80° vertically. This ensures clear visibility even in diverse lighting environments or installation positions. Designed for integration in industrial control panels, this unit includes a built-in Ethernet port for seamless connectivity but does not support video input or wired controller link interfaces. The display module offers 60 MB of screen data capacity and supports memory card expansion, allowing flexible data management and firmware updates on the field.
Key Features:
- Color TFT Display: 5.7-inch screen with 256-color support ensures sharp, vibrant graphics.
- Wide Viewing Angle: ±60° horizontal and up to 80° vertical visibility for reliable operator access.
- Ethernet Connectivity: Built-in Ethernet port allows easy integration into existing industrial networks.
- High Screen Capacity: Up to 60 MB screen data memory for detailed HMI projects and applications.
- Compact Form Factor: Ideal for panel-mounting in space-constrained automation environments.
- Robust Standards Compliance: CU and CE certified, ensuring compatibility with global industrial requirements.
- Memory Card Support: Facilitates firmware upgrades, screen backups, and user data storage.
- Industrial Voltage Compatibility: Operates on a 24 VDC power supply for standard control system use.
The NS5-TQ11-V2 delivers exceptional clarity and connectivity in a compact panel interface solution. The unit is optimized for demanding HMI tasks in industrial automation environments.
