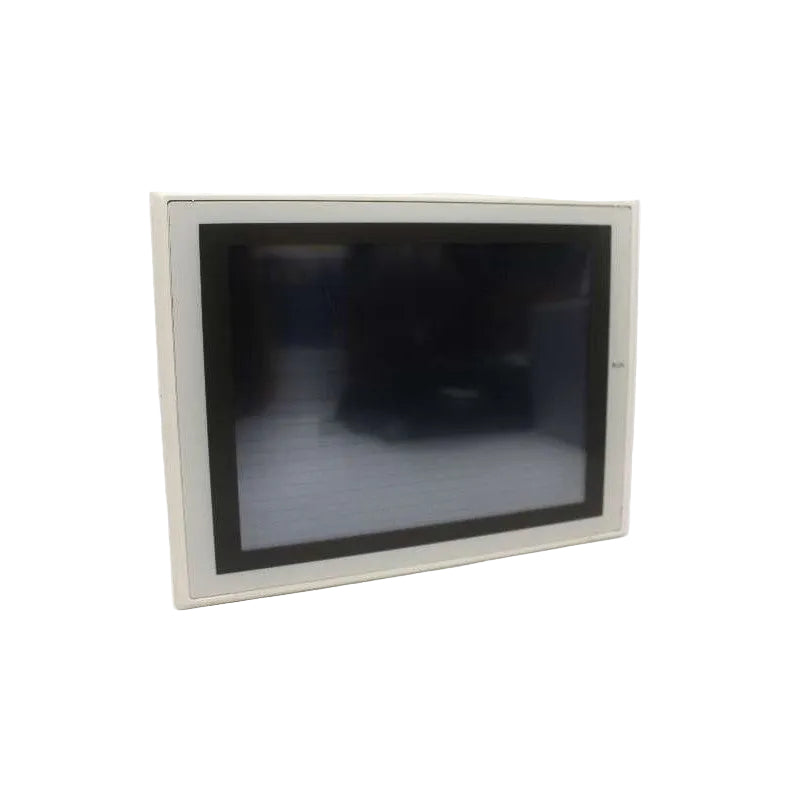

NS8-TV01-V2 | Omron NS Series 8.4-Inch TFT Touch Panel HMI
- Regular price
- $1,487.00
- Sale price
- $1,487.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NS8-TV01-V2
Description
The Omron NS8-TV01-V2 is an 8.4-inch touchscreen HMI designed for operator control and visualization in industrial automation systems. It features a TFT color display with 640 × 480 resolution and supports Ethernet and serial communications for flexible system integration. This unit operates on 24 VDC and is built for reliable use in demanding industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Human Machine Interfaces |
| Part Number | NS8-TV01-V2 |
| Subcategory | Touch Panels |
| Product Line | NS Series |
| Product Type | HMI Touch Panel |
| Display Size | 8.4 inches |
| Display Type | TFT LCD with LED backlight |
| Resolution | 640 × 480 dots |
| Display Colors | 256 colors |
| Case Color | Ivory |
| Protection Class | IP65 (front panel) |
| Power Supply Voltage | 24 VDC |
| Permissible Voltage Range | 20.4 to 27.6 VDC |
| Ethernet Interface | 10/100 Base-T |
| Screen Memory Capacity | 60 MB |
| Ambient Operating Temperature | 0°C to 40°C |
| Operating Humidity | 35% to 85% RH (non-condensing) |
| Backlight Life | 40,000 hours (minimum) |
| Weight | 1.38 lbs (0.62 kg) |
Information About NS8-TV01-V2
The NS8-TV01-V2 is part of Omron’s NS Series human-machine interfaces, developed to provide advanced visualization and control for PLC-based systems. It incorporates an 8.4-inch TFT LCD with LED backlighting, offering clear color graphics and long backlight life for continuous operation. The HMI supports Ethernet (10/100 Base-T) as well as serial communication, enabling connectivity with multiple controllers and networks. Designed with an IP65-rated front panel, it is suitable for panel-mounted installation in environments requiring resistance to dust, vibration, and moisture.
Key Features:
- 8.4-Inch TFT Color Display: Provides clear visualization with 640 × 480 pixel resolution.
- Color Graphics Capability: Supports 256 display colors with expanded image color support for bitmap and JPEG files.
- Ethernet Connectivity: Integrated 10/100 Base-T port for networked automation systems.
- Industrial Touch Interface: Reliable touchscreen operation for operator input and control.
- IP65 Front Protection: Water- and dust-resistant design for industrial panel installations.
- Extended Backlight Life: LED backlight rated for a minimum of 40,000 operating hours.
- Robust Environmental Tolerance: Designed to withstand vibration, shock, and industrial humidity levels.
The NS8-TV01-V2 delivers the reliability and precision required for operator interaction and system monitoring in industrial automation applications.
