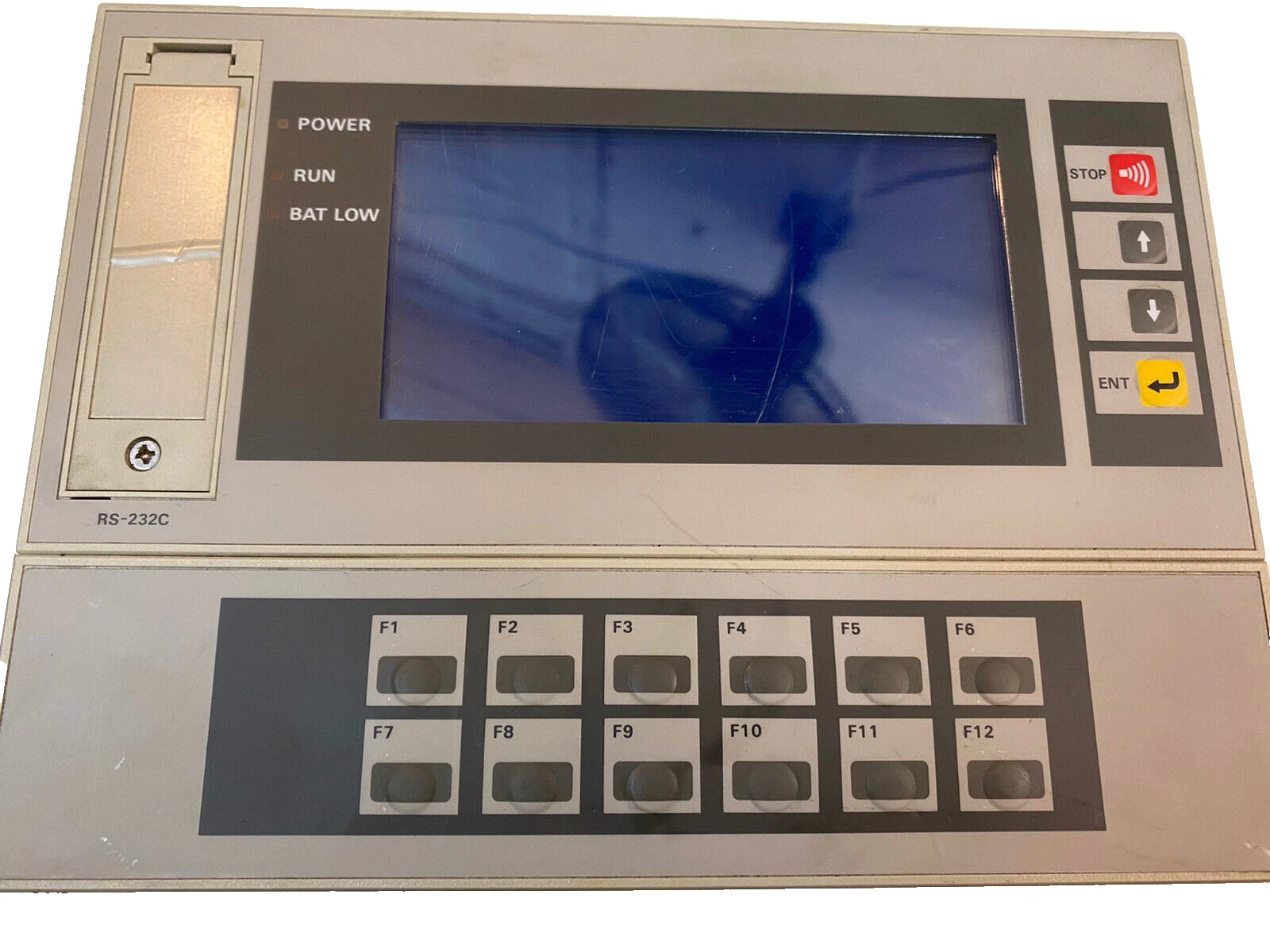

NT20M-DF125-V1 | Omron Type C Replacement Touch Glass 5" HMI
- Regular price
- $7,999.00
- Sale price
- $7,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NT20M-DF125-V1
Description
The NT20M-DF125-V1-SUB-TOUCHGLASS (Type C) is a replacement touch panel designed for the Omron NT20M-DF125-V1 operator interface terminal. It features a viewing area of 130 mm x 71 mm and overall dimensions of 145.5 mm x 82 mm. The assembly includes a 20-pin ribbon cable for direct connection to compatible HMI units.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron (Replacement Component) |
| Category | HMI / MMI / OIT |
| Part Number | NT20M-DF125-V1-SUB-TOUCHGLASS (Type C) |
| Subcategory | OIT Replacement Display/Touch |
| Compatible Model | NT20M-DF125-V1 |
| Display Size Compatibility | 5 Inch |
| Display Resolution Compatibility | 256 x 128 |
| Overall Dimensions | 145.5 mm x 82 mm |
| Viewing Area | 130 mm x 71 mm |
| Cable Type | Ribbon Cable |
| Cable Dimensions | 45 mm x 20.5 mm |
| Pin Count | 20 Pins |
| Supply Compatibility | 24 VDC HMI Units |
| Weight | 1.5 kg |
Information About NT20M-DF125-V1
The NT20M-DF125-V1-SUB-TOUCHGLASS is intended as a substitute touch glass component for Omron NT20M series operator interfaces equipped with a 5-inch STN LCD display. It is designed to restore touch functionality without replacing the entire HMI unit. The Type C configuration includes a 45 mm x 20.5 mm flexible cable with 20-pin termination for proper electrical interface. This replacement component is used in 24 VDC powered operator terminals with 256 x 128 resolution displays.
Key Features:
-
Direct Replacement Component: Designed for Omron NT20M-DF125-V1 terminals.
-
Type C Touch Glass: Compatible configuration with 20-pin ribbon cable.
-
130 mm x 71 mm Viewing Area: Matches original display interface dimensions.
-
145.5 mm x 82 mm Overall Size: Fits standard NT20M mounting profile.
-
20-Pin Cable Connection: Ensures proper electrical integration.
-
5-Inch HMI Compatibility: Designed for NT20M dot matrix LCD displays.
-
Restores Touch Functionality: Replacement for damaged or worn touch panels.
-
Industrial Application Use: Suitable for factory automation operator interfaces.
The NT20M-DF125-V1-SUB-TOUCHGLASS delivers the reliability and precision required for industrial HMI replacement display and touch applications.
