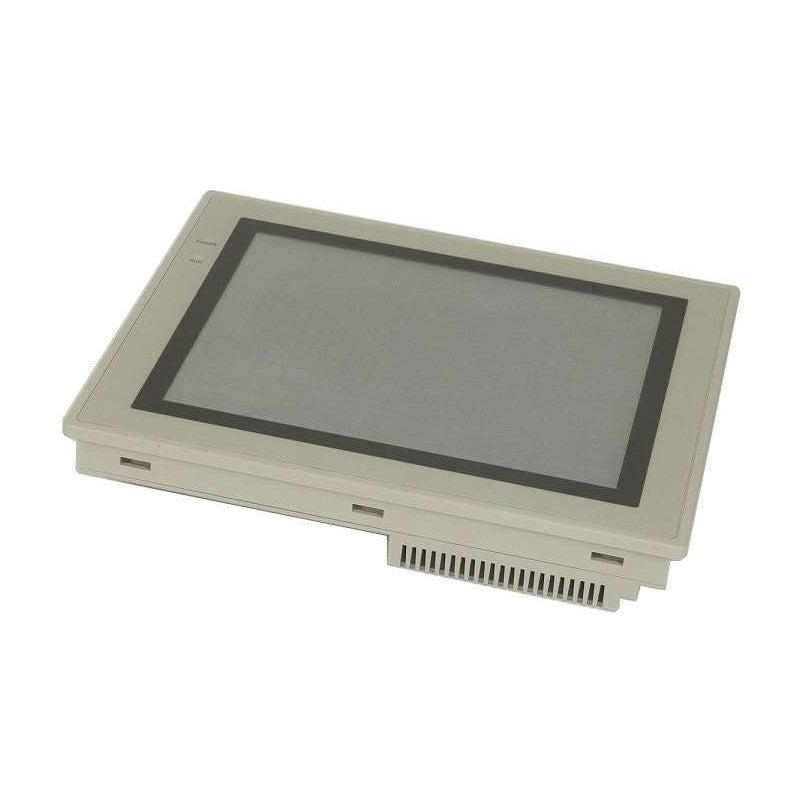

NT31-ST123-EV3 | Omron Operator Interface 5.7-Inch
- Regular price
- $1,612.00
- Sale price
- $1,612.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: NT31-ST123-EV3
Description
The Omron NT31-ST123-EV3 is a 5.7-inch monochrome operator interface panel designed for intuitive control and clear display in industrial automation environments. Equipped with backlit STN LCD and multiple communication interfaces, it supports both NT Link and Host Link protocols for flexible system integration.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| BrandPart Number | Omron |
| Category |
HMI / MMI / OIT
|
| Part Number | NT31-ST123-EV3 |
| Subcategory | Operator Interface |
| Series | NT |
| Product Type | Programmable terminal |
| Case Color | Beige |
| Display Size | 5.7 inches |
| Display Type | Super Twisted Nematic (STN) monochrome liquid crystal display with backlight |
| Number of Dots | 320 x 240 dots |
| Rated Supply Voltage | 24 Volts DC |
| Ambient Operating Temperature | 0 to 50°C (in a non-condensing environment) |
| Protection Rating | IP65 for the front panel, IP20 for the rear case, IP00 for the terminal |
| Display Color | Black and white |
| Backlight Type | White cold cathode tube |
| Backlight Life Expectancy | 50,000 hours (minimum) |
| Indicator Type | Two LED indicators (POWER and RUN) |
| Storage Temperature | -20 to 60°C (in a non-condensing environment) |
| Power Consumption | 15 Watts (maximum) |
| Compliance Standard | CU and CE registered products |
Information About NT31-ST123-EV3
The NT31-ST123-EV3 is part of Omron’s NT series of programmable terminals and features a Super Twisted Nematic (STN) monochrome LCD with a resolution of 320 × 240 dots. Its 5.7-inch touch-sensitive display includes a white cold cathode backlight with a life expectancy of 50,000 hours, ensuring long-term visibility and durability. Operating on a 24 VDC power supply with a maximum consumption of 15 W, this HMI is well-suited for panel-mount applications.
With communication support via RS-232C and RS-422A, and compatibility with both Host Link and NT Link, the NT31-ST123-EV3 integrates smoothly into a wide range of control systems. Its enclosure offers IP65 protection for the front panel, and it includes indicator LEDs for power and run status. The panel operates reliably in ambient temperatures from 0 to 50°C and supports storage from -20 to 60°C.
Key Features:
- High-Contrast Display: 5.7-inch monochrome STN LCD with 320 × 240 resolution for clear visualization in control environments.
- Durable Backlight: White cold cathode tube with minimum 50,000-hour life ensures long-term screen visibility.
- Versatile Communication: Supports RS-232C and RS-422A interfaces with both NT Link and Host Link protocols.
- Touchscreen Input: User-friendly touch panel supports responsive interaction for process control.
- Robust Front Protection: IP65-rated front panel resists dust and water spray for reliable panel mounting.
- Dual LED Indicators: POWER and RUN LEDs provide quick visual confirmation of operational status.
- Standard Industrial Power: Operates on 24 VDC with 15 W max consumption, ideal for automation panels.
- Temperature and Humidity Resilience: Operates in 0 to 50°C and 35–85% RH without condensation.
The NT31-ST123-EV3 is a compact, efficient HMI for machine control applications, combining clear graphics, flexible communication, and durable construction.
