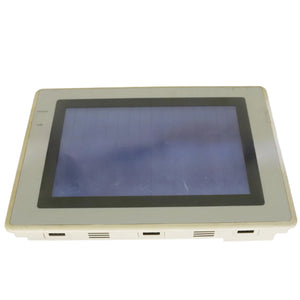

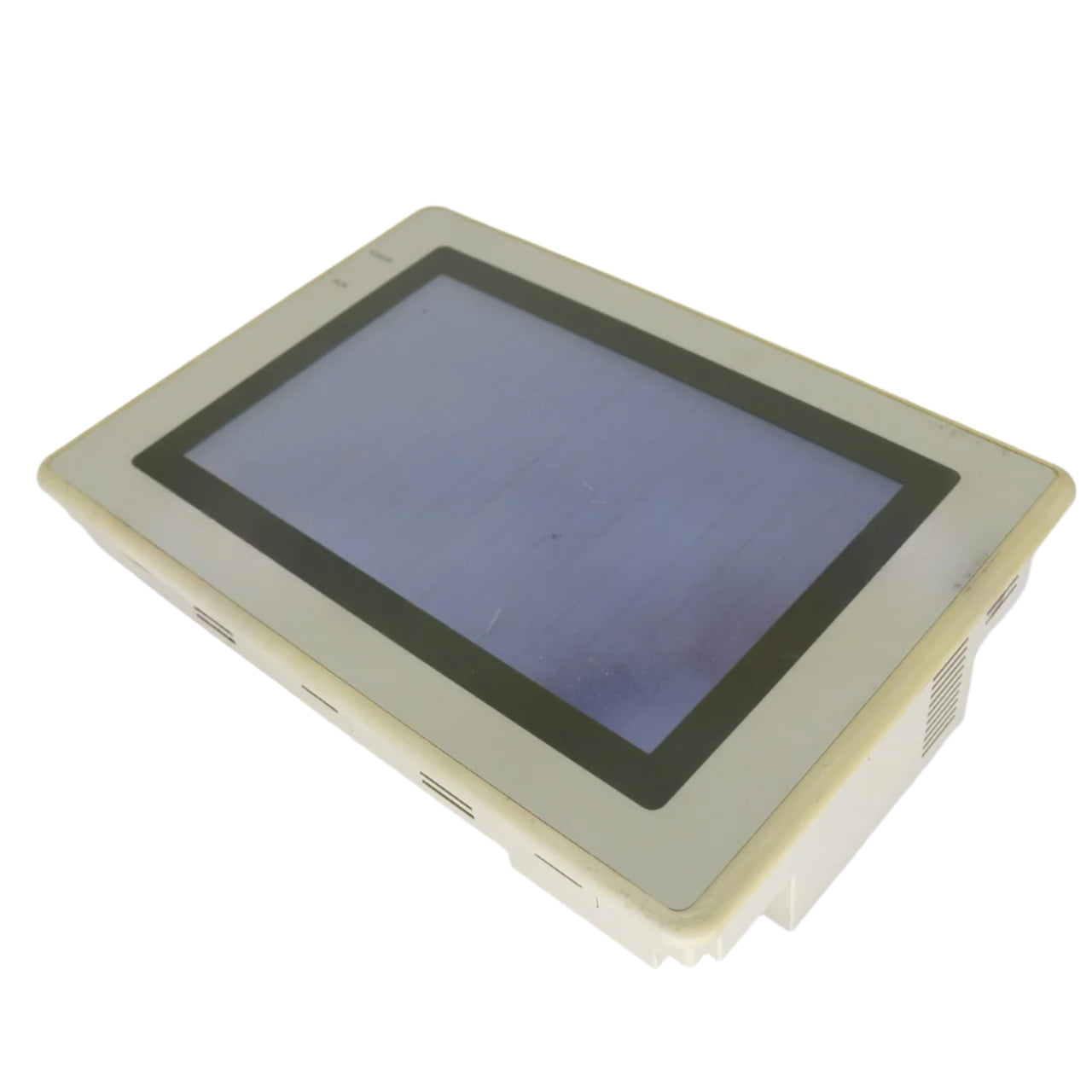

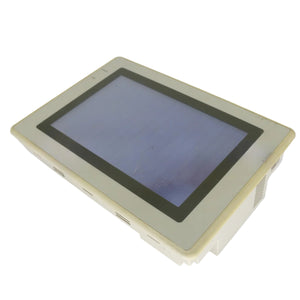

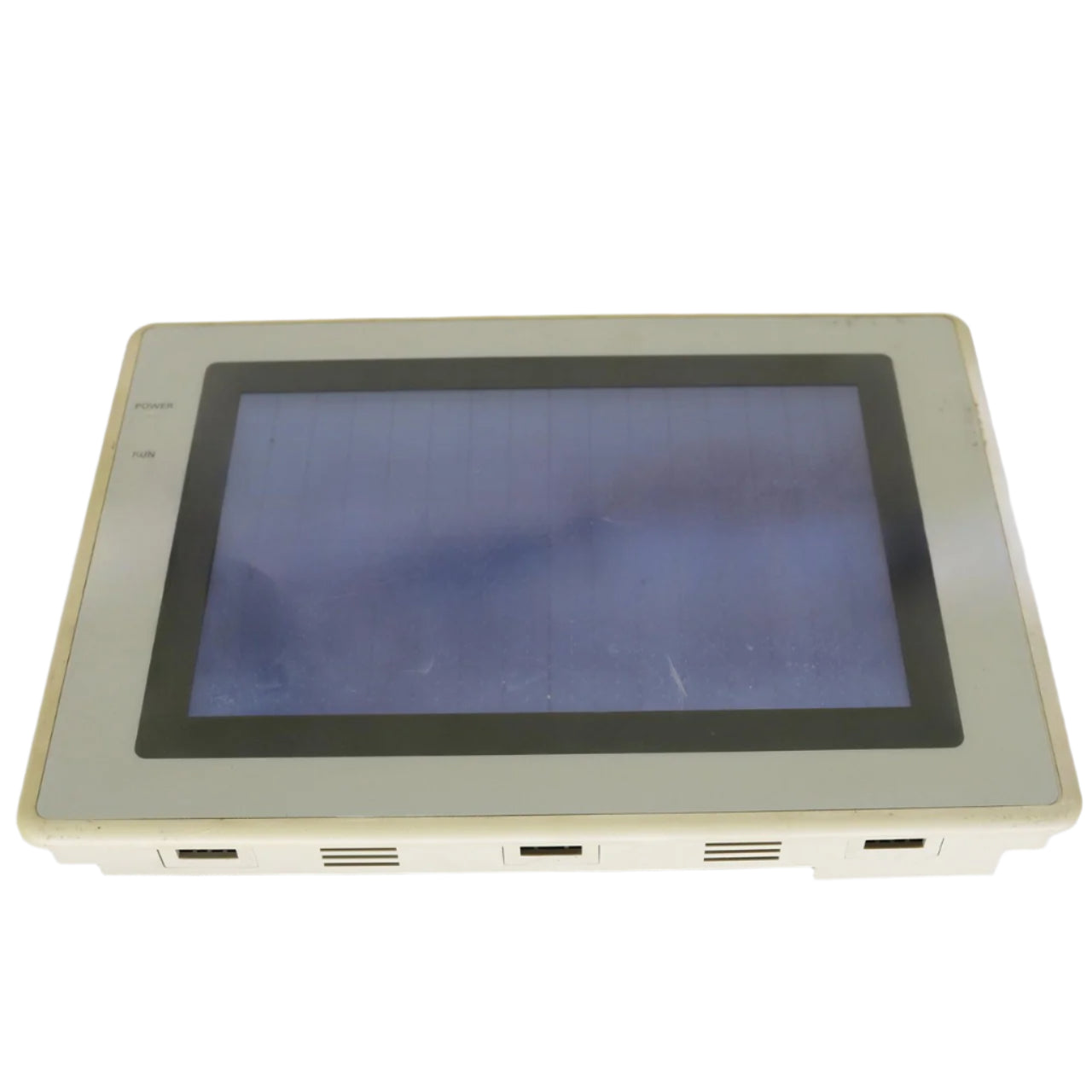

NT600S-ST121-V3 | Omron Operator Panel 128 KB
- Regular price
- $3,678.00
- Sale price
- $3,678.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: NT600S-ST121-V3
Description
The Omron NT600S-ST121-V3 is a durable HMI touchscreen panel designed for precise control and data visualization in industrial environments. Its pressure-sensitive LCD and broad voltage range provide adaptability and usability in demanding settings.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Omron |
| Category |
HMI / MMI / OIT
|
| Part Number | NT600S-ST121-V3 |
| Subcategory | Operator Interface |
| Series | NT |
| Power Supply Voltage Range | 20.4 to 26.4 VDC (24 VDC Typical) |
| Power Consumption | 15W max. at 24 VDC |
| Ambient Operating Temperature | 0 to 50 °C |
| Ambient Operating Humidity | 35 to 85 % RH (without condensation) |
| Ambient Storage Temperature | -20 to 70 °C |
| Dimensions | 275 x 192 x 71 mm |
| Weight | 1.8 kg max. |
| Degree of Protection | IP65 |
| Resolution | 640 x 400 dots (0.3mm dots) |
| Display Type | LCD Touchscreen, Pressure-sensitive type input |
| Number of Touch Switches | 8 x 16 (max. 128 registrable per screen) |
| Memory Capacity | 128 KB |
| Connector | 9-pin DSUB Female |
| Communications Protocol | C-Series SYSWAY |
Information About NT600S-ST121-V3
The NT600S-ST121-V3 is a member of Omron’s NT series, built to offer reliable interface capabilities in environments requiring high protection and flexibility. Operating between 20.4 to 26.4 VDC (with a nominal 24 VDC), this panel consumes a maximum of 15 watts, making it efficient for continuous use in control systems.
Its robust enclosure measures 275 x 192 x 71 mm and weighs up to 1.8 kg, providing IP65-rated protection against dust and water ingress. With a 640 x 400 dot resolution on a pressure-sensitive LCD touchscreen, users benefit from a responsive interface with up to 128 registrable touch switches per screen. Communication is established via the C-Series SYSWAY protocol using a 9-pin DSUB female connector.
Key Features:
- Power Range and Efficiency: Supports a wide input range of 20.4–26.4 VDC with a typical 24 VDC operation and 15 W max power consumption.
- High Display Clarity: Offers 640 x 400 dot resolution with 0.3 mm dots on a pressure-sensitive LCD for detailed and clear interface visibility.
- Touch Interface Capacity: Supports up to 128 registrable touch switches per screen in an 8 x 16 matrix layout for flexible operations.
- Environmental Endurance: Operates in temperatures from 0 to 50 °C and withstands storage conditions between -20 and 70 °C with 35–85% RH humidity tolerance.
- Durability and Protection: Housed in an IP65-rated enclosure, providing strong protection against industrial contaminants.
- Communication Support: Utilizes C-Series SYSWAY protocol and features a 9-pin DSUB female connector for easy integration.
The NT600S-ST121-V3 delivers dependable interaction and clear data visualization with enhanced resistance and protocol compatibility for industrial control applications.
