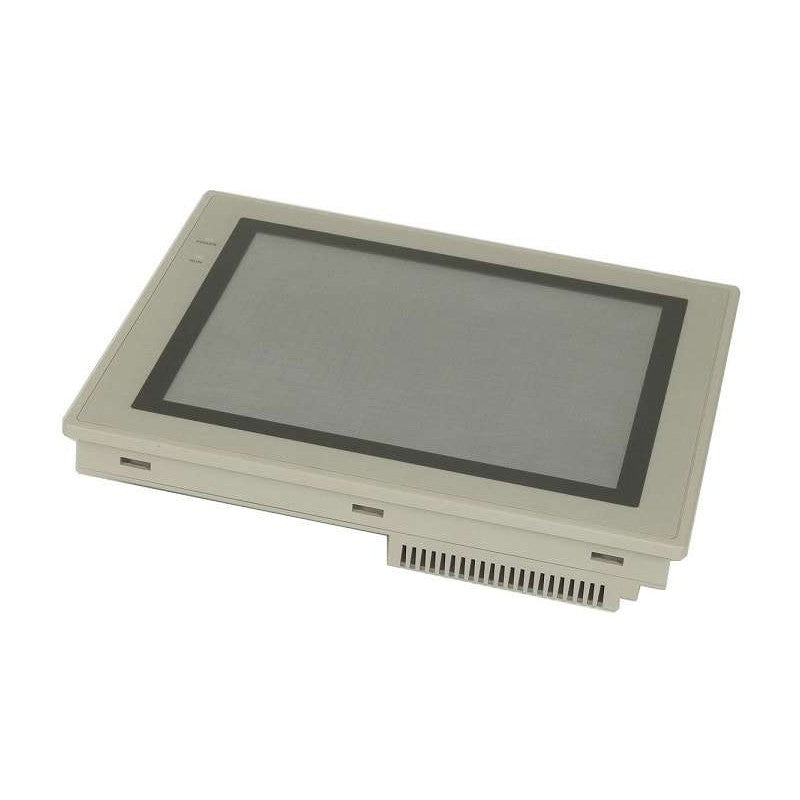

NT620C-ST141-E | Omron NT Series 9.4-Inch Color HMI Display Panel
- Regular price
- $3,892.00
- Sale price
- $3,892.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NT620C-ST141-E
Description
The Omron NT620C-ST141-E HMI display panel is a 9.4-inch operator interface designed for monitoring and control of industrial automation systems. It features an 8-color STN LCD touchscreen with pressure-sensitive input and a resolution of 640 × 480 dots for clear visualization. This panel operates on 24 VDC and is intended for reliable use in factory and process control environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Human Machine Interfaces |
| Part Number | NT620C-ST141-E |
| Subcategory | HMI Display Panels |
| Product Line | NT Series |
| Product Type | HMI Display Panel |
| Display Size | 9.4 inches |
| Display Type | STN Color LCD (8 colors) |
| Resolution | 640 × 480 dots |
| Touch Panel Type | Pressure-sensitive |
| Number of Touch Switches | 32 × 24 (up to 256 per screen) |
| Backlight Type | White cold cathode tube |
| Degree of Protection | IP65 (NEMA 4) |
| Communication Protocol | C-Series SYSWAY |
| Connector Type | 9-pin D-Sub Female |
| Power Supply Voltage | 20.4–26.4 VDC (24 VDC typical) |
| Power Consumption | 20 W max |
| Ambient Operating Temperature | 0°C to 40°C |
| Ambient Storage Temperature | -20°C to 60°C |
| Ambient Operating Humidity | 35–85% RH (non-condensing) |
| Weight | 4.38 lbs (1.98 kg) |
Information About NT620C-ST141-E
The NT620C-ST141-E is part of Omron’s NT Series of human-machine interfaces, engineered to provide dependable operator interaction with PLC-based control systems. It communicates using Omron’s C-Series SYSWAY protocol, allowing seamless integration with compatible Omron controllers. The unit incorporates a white cold cathode backlight for consistent display visibility and supports multiple touch switches per screen for flexible interface design. With an IP65 (NEMA 4) protection rating, it is suitable for panel-mounted installation in industrial environments where resistance to dust and water is required.
Key Features:
- 9.4-Inch Color Display: STN LCD with 8-color support for clear process visualization.
- Touchscreen Interface: Pressure-sensitive touch input supporting up to 256 registrable switches per screen.
- High Display Resolution: 640 × 480 dots with 0.3 mm dot pitch for detailed graphics.
- Industrial Protection Rating: IP65 / NEMA 4 rated front panel for harsh environments.
- SYSWAY Communication: Compatible with Omron C-Series PLC communication protocols.
- 24 VDC Operation: Designed for standard industrial control power supplies.
- Robust Backlighting: White cold cathode tube backlight for consistent visibility.
The NT620C-ST141-E delivers the reliability and precision required for operator control and monitoring in industrial automation systems.
