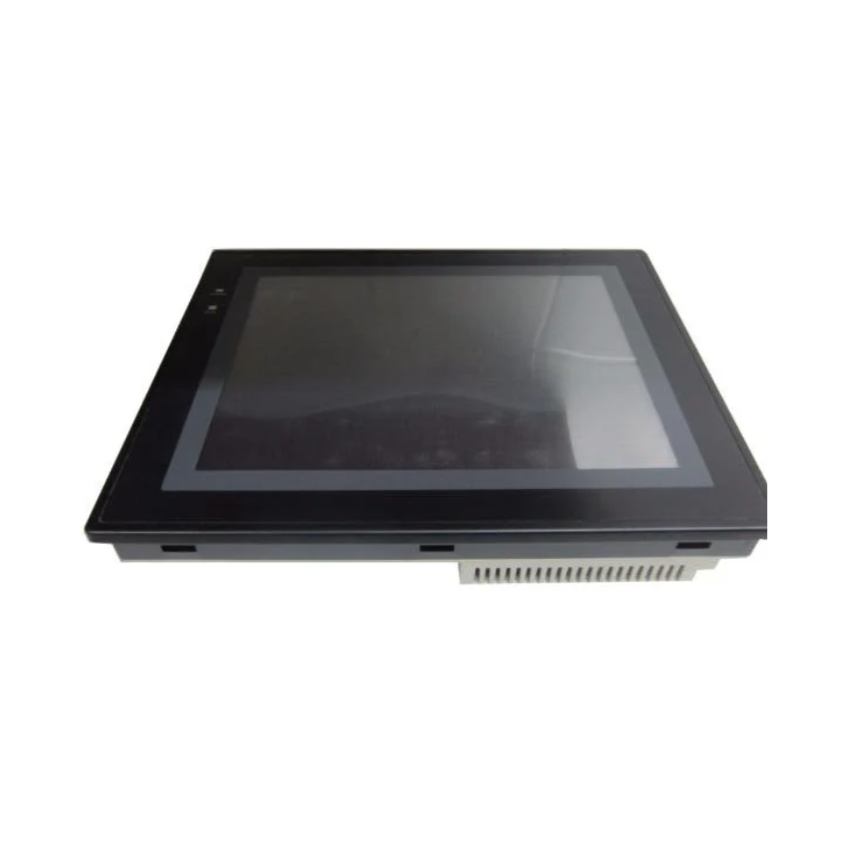

NT631C-ST141B-EV2 | Omron HMI Operator Interface 11.3-Inch
- Regular price
- $1,469.00
- Sale price
- $1,469.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: NT631C-ST141B-EV2
Description
The NT631C-ST141B-EV2 is a high-visibility 11.3-inch touch panel HMI from Omron’s NT series, featuring an 8-color STN LCD with white backlight. It delivers reliable interface performance with 640 × 480 resolution, low power consumption, and IP65-rated protection.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Omron |
| Category |
HMI / MMI / OIT
|
| Part Number | NT631C-ST141B-EV2 |
| Subcategory | Operator Interface |
| Series | NT |
| Resolution | 640 x 480 pixels |
| Display Type | 11.3", 8-color STN LCD |
| Size of Standard Character | 5.76 mm |
| View Angle | Up/down: ±30°, Left: 55°, Right: 45° |
| Display Life Expectancy | 30,000 hours min |
| Color of Module | Black |
| Power Supply Voltage Range | 20.4 to 26.4 VDC (24 VDC Typical) |
| Power Consumption | 18W max. at 24 VDC |
| Ambient Operating Temperature | 0 to 40 °C |
| Ambient Operating Humidity | 35 to 85 % RH (without condensation) |
| Ambient Storage Temperature | -20 to 60 °C |
| Dimensions | 315 x 250 x 54 mm (WxHxD) |
| Weight | 5.00 lbs |
| Degree of Protection | IP65 (NEMA 4) |
Information About NT631C-ST141B-EV2
The NT631C-ST141B-EV2 belongs to the Omron NT series of operator interface panels and is designed for effective user interaction in automated industrial systems. Featuring an 11.3-inch 8-color STN LCD with white replaceable backlight, it provides clear visualization with a resolution of 640 x 480 pixels and large standard characters measuring 5.76 mm for excellent readability. With a wide viewing angle (±30° vertically, 55°/45° horizontally), it ensures reliable operation from various operator positions. The unit is powered by a 24 VDC supply (20.4–26.4 VDC range) and consumes up to 18 W, making it suitable for control panel integration. The IP65 (NEMA 4) rated black front panel resists dust and water, supporting installations in demanding factory environments. Its robust build, long display life (≥30,000 hours), and compact 315 × 250 × 54 mm housing ensure space-efficient, high-performance HMI integration.
Key Features:
- Large 11.3-Inch Color Touchscreen: Equipped with an 8-color STN LCD and 640 x 480 resolution, it offers clear, vibrant graphics for process control visualization.
- White Replaceable Backlight: Provides over 30,000 hours of display life with field-replaceable backlight to extend service life and reduce downtime.
- Optimized Viewing Angles: Designed with wide-angle visibility—±30° vertically and up to 55° horizontally—for consistent readability from different operator positions.
- Durable Industrial Design: IP65-rated black front panel offers protection against dust and water jets, enabling use in harsh industrial environments.
- Energy-Efficient 24 VDC Operation: Operates within a voltage range of 20.4 to 26.4 VDC, consuming only 18 W, ideal for control cabinet installations.
- Readable Large Fonts: Standard character size of 5.76 mm ensures high legibility even in visually complex applications or low-light conditions.
- Reliable Temperature and Humidity Range: Functions reliably in ambient temperatures from 0 to 40 °C and humidity between 35–85% without condensation.
- Compact Panel Dimensions: Space-saving 315 × 250 × 54 mm profile with maximum weight of 2.5 kg simplifies installation in constrained enclosures.
The NT631C-ST141B-EV2 offers an optimal balance of performance, durability, and usability in operator interface applications where reliability and visibility are crucial.
