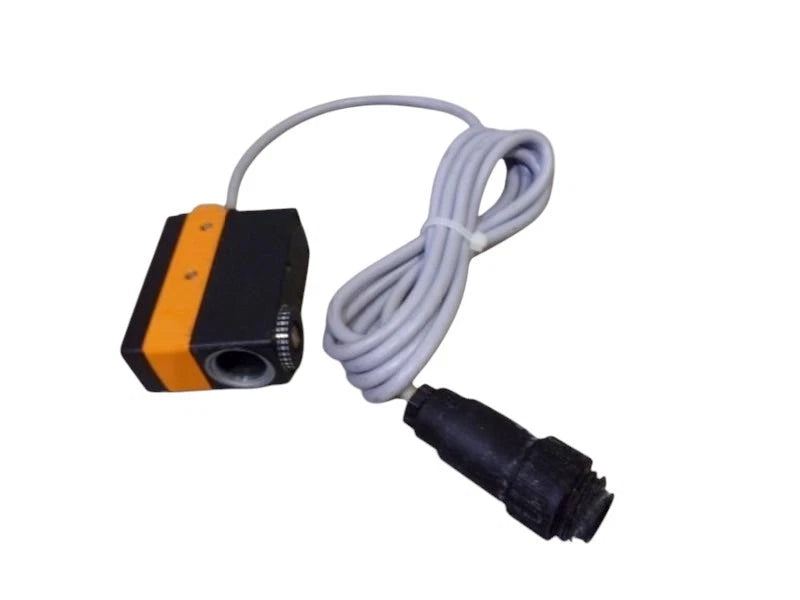

NT8-01512 | SICK NT8 Contrast Sensor White Light NPN 9 Mm Scan Distance
- Regular price
- $1,599.00
- Sale price
- $1,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NT8-01512
Description
The SICK NT8-01512 is a high-speed contrast sensor designed for precise detection of print marks and contrast differences at close range. It uses white light optics and an NPN output to deliver reliable switching performance in demanding industrial automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Sensors |
| Part Number | NT8-01512 |
| Subcategory | Contrast Sensors |
| Series | NT8 |
| Sensing Distance | 9 mm |
| Sensing Distance Tolerance | ± 2 mm |
| Light Source | White |
| Light Spot Size | 1.5 mm × 3.5 mm |
| Light Spot Direction | Vertical |
| Light Emission | Long and short side, exchangeable |
| Output Type | NPN |
| Switching Function | Light / Dark switching |
| Switching Frequency | 10 kHz |
| Response Time | > 50 µs |
| Output Current | ≤ 200 mA |
| Supply Voltage | 10…30 V DC |
| Current Consumption | < 50 mA |
| Ripple | ≤ 5 Vpp |
| Electrical Connection | Fixed cable, 2 m |
| Housing Design | Rectangular |
| Dimensions (W × H × D) | 76 × 30 × 58.8 mm |
| Ambient Operating Temperature | 0 °C … +55 °C |
| Storage Temperature | –25 °C … +85 °C |
| Weight | 1.32 lbs |
Information About NT8-01512
The NT8-01512 is part of SICK’s NT8 series of contrast sensors developed for high-speed and high-precision detection tasks. It uses white light illumination to reliably distinguish fine contrast differences across a wide range of colors and surface finishes. The sensor supports light and dark switching modes and provides fast switching frequencies suitable for rapid production lines. Its compact rectangular housing with flexible light emission direction allows installation in space-constrained machine layouts.
Key Features
- High-Speed Contrast Detection: Supports switching frequencies up to 10 kHz, enabling reliable operation in fast-moving printing and packaging processes.
- White Light Optical System: Provides stable contrast recognition across multi-colored prints and varying material surfaces.
- Short 9 Mm Sensing Distance: Designed for precise close-range detection in compact machine designs.
- Defined Light Spot Geometry: Uses a focused 1.5 mm × 3.5 mm light spot for accurate and repeatable detection.
- Flexible Light Emission Direction: Allows exchangeable emission from the long or short side to simplify mechanical integration.
- NPN Output Configuration: Enables direct connection to standard industrial control and PLC inputs.
- Fixed Cable Connection: Includes a 2 m cable for straightforward installation and reduced wiring complexity.
The NT8-01512 delivers the reliability and precision required for high-speed contrast detection in industrial printing, labeling, and packaging systems.
