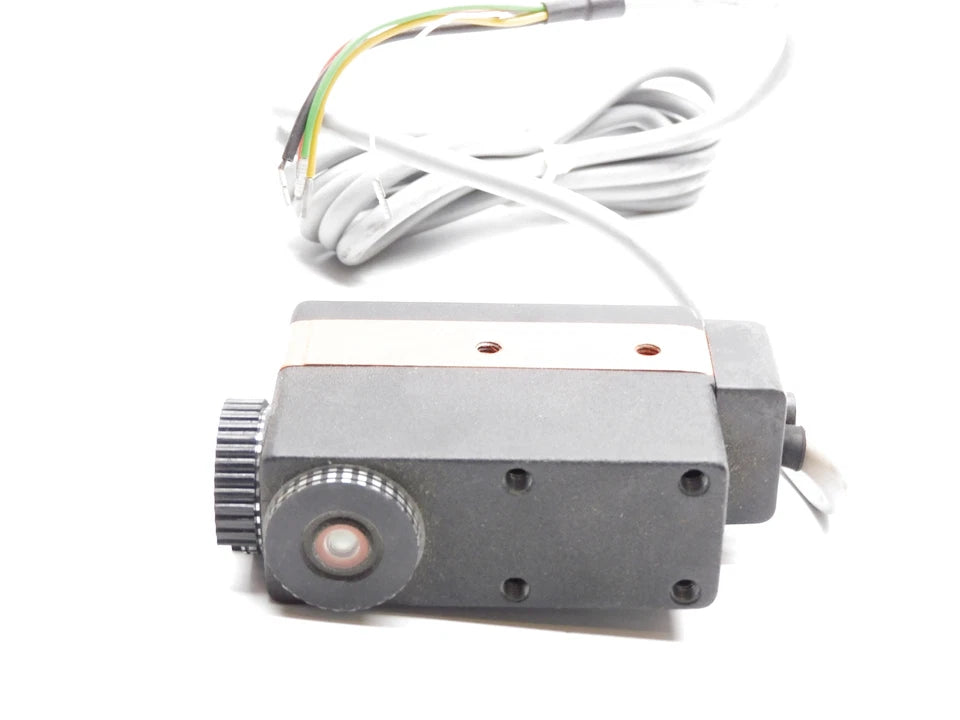

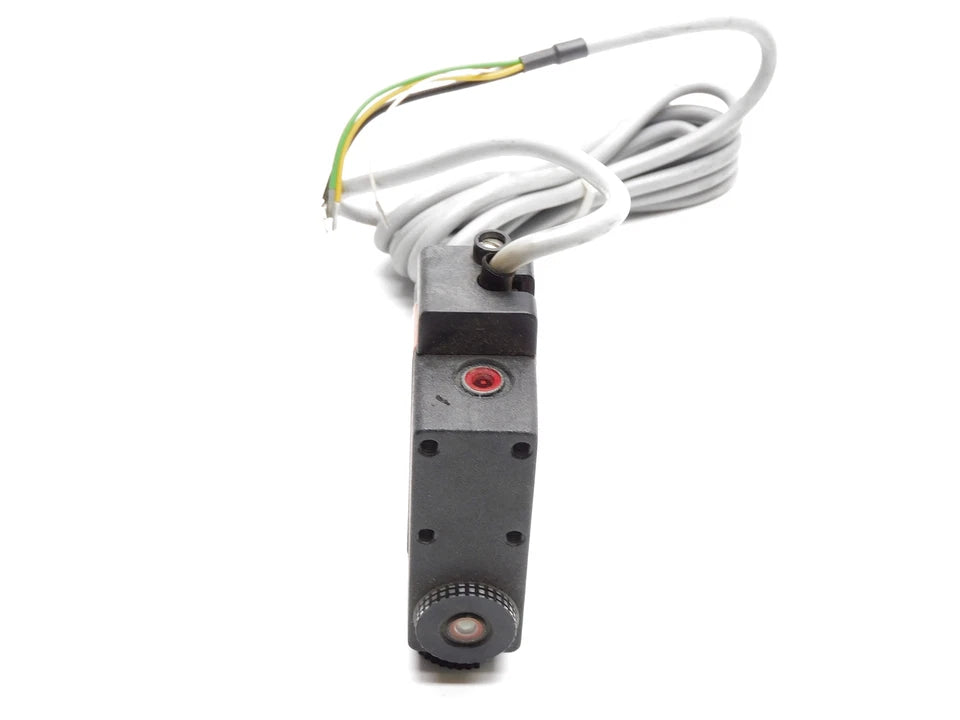

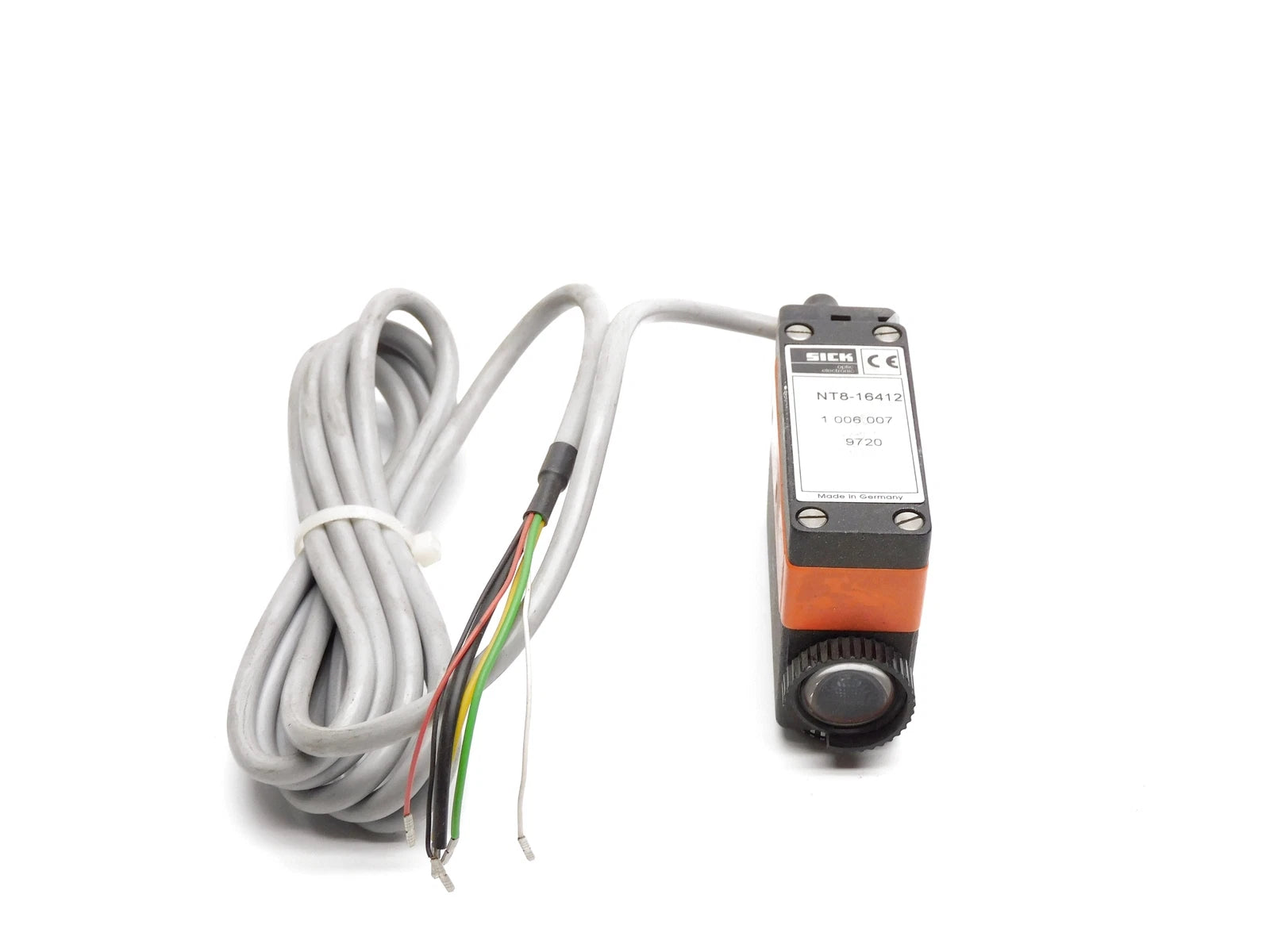

NT8-16412 | SICK Contrast Sensor NPN White Light 10–30 V DC IP67 Metal Housing
- Regular price
- $2,499.00
- Sale price
- $2,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NT8-16412
Description
The SICK NT8-16412 is an industrial contrast sensor designed for precise detection of contrast differences at very short sensing distances. It operates with white light optics and delivers high-speed switching performance in harsh industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Sensors |
| Part Number | NT8-16412 |
| Subcategory | Contrast Sensors |
| Output Type | NPN |
| Switching Frequency | 10 kHz |
| Sensing Distance | ≤ 9 mm |
| Sensing Distance Tolerance | ± 2 mm |
| Light Source | White |
| Light Spot Size | 1.5 mm × 3.5 mm |
| Light Emission | Long and short side, exchangeable |
| Light Spot Direction | Vertical |
| Function | Light / Dark switching |
| Supply Voltage | 10…30 V DC |
| Current Consumption | < 50 mA |
| Ripple | ≤ 5 Vpp |
| Housing Material | Zinc die-cast metal |
| Housing Design | Middle |
| Dimensions (W × H × D) | 76 × 30 × 58.8 mm |
| Enclosure Rating | IP67 |
| Ambient Operating Temperature | 0 °C … +55 °C |
| Storage Temperature | –25 °C … +85 °C |
| Special Features | S8 |
| Weight | 10.00 lbs |
Information About NT8-16412
The NT8-16412 is part of SICK’s NT8 series of contrast sensors developed for high-speed and high-precision detection tasks. It uses white light optics to reliably distinguish fine contrast differences on printed materials, labels, and markings at close range. The rugged zinc die-cast metal housing provides strong mechanical resistance and protection against dust and moisture in demanding industrial environments. With a fast 10 kHz switching frequency and IP67 protection, the sensor supports stable operation in applications with rapid material movement.
Key Features
- High-Speed Switching Performance: Supports switching frequencies up to 10 kHz, enabling accurate detection in fast-moving production and printing processes.
- White Light Optical System: Provides reliable contrast recognition across a wide range of colors and surface finishes.
- Short Sensing Distance Capability: Designed for precise detection at distances up to 9 mm, supporting fine registration and marking applications.
- Robust Metal Housing: Zinc die-cast construction ensures durability and long service life in mechanically demanding environments.
- Flexible Light Emission Direction: Exchangeable emission from the long or short side allows adaptable installation in confined machine spaces.
- NPN Output Configuration: Enables straightforward integration with standard industrial control and PLC systems.
- IP67 Environmental Protection: Ensures reliable operation in dusty, humid, or washdown-prone industrial settings.
The NT8-16412 delivers the reliability and precision required for high-speed contrast detection in industrial printing, packaging, and labeling systems.
