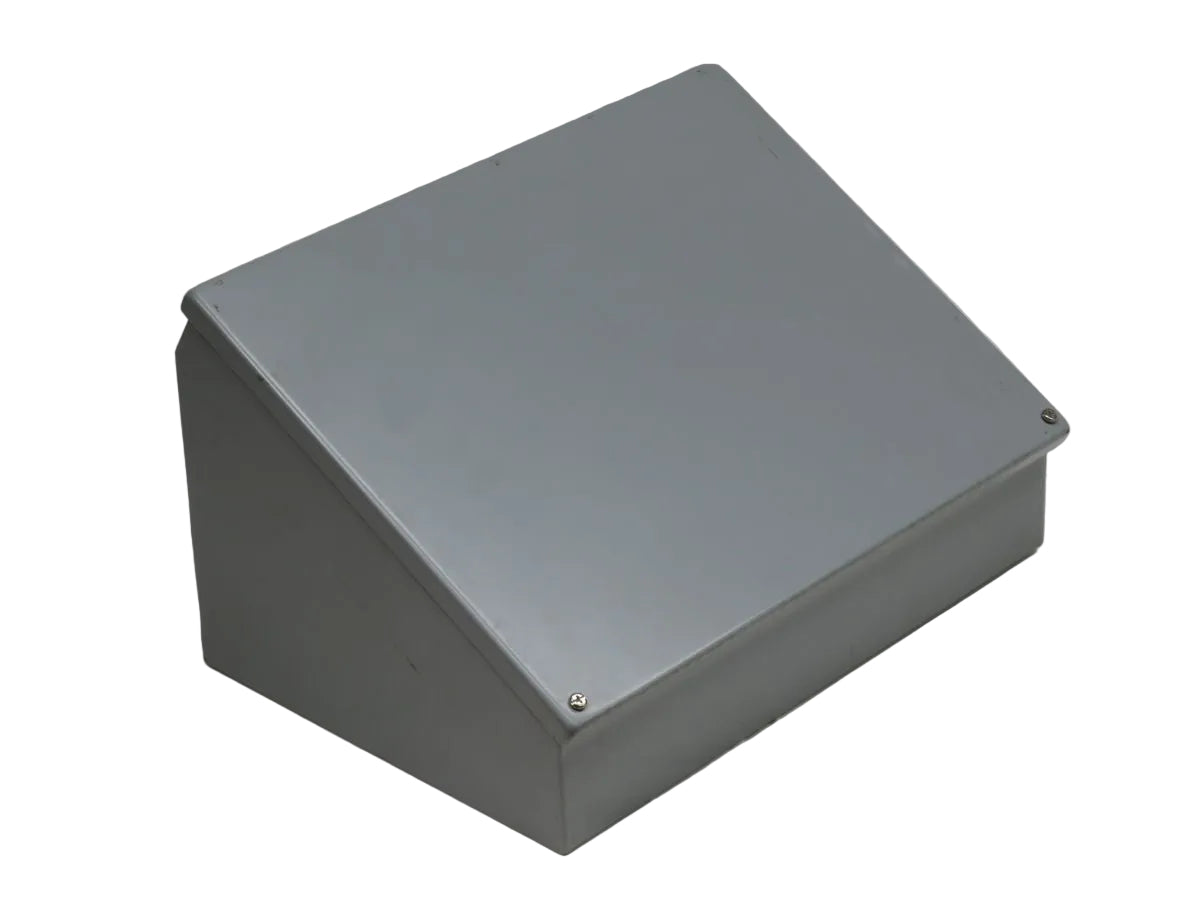

nVent Hoffman C12C16 Consolet Sloped Cover Steel Enclosure
- Regular price
- $437.00
- Sale price
- $437.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C12C16
Description
The nVent Hoffman C12C16 is a steel Consolet enclosure with a sloped cover designed for mounting small control and instrumentation devices. Its 30- or 60-degree access configuration, continuous hinged control panel, and NEMA 12/13 construction support desktop, pedestal, and surface-mounted applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | nVent Hoffman |
| Category | Enclosures |
| Part Number | C12C16 |
| Subcategory | Consolet Enclosures |
| Series | C5 Series |
| Material | Mild Steel |
| NEMA Rating | NEMA 12, 13 |
| Height | 12 in |
| Width | 16 in |
| Depth | 9.09 in |
| Control Panel Width | 16.28 in |
| Cover Type | Sloped Cover |
| Panel Hinge | Continuous Hinge |
| Gasket | Oil-Resistant |
| Mounting | Desktop, Pedestal, Surface |
| Weight | 17.6 lb |
Information About C12C16

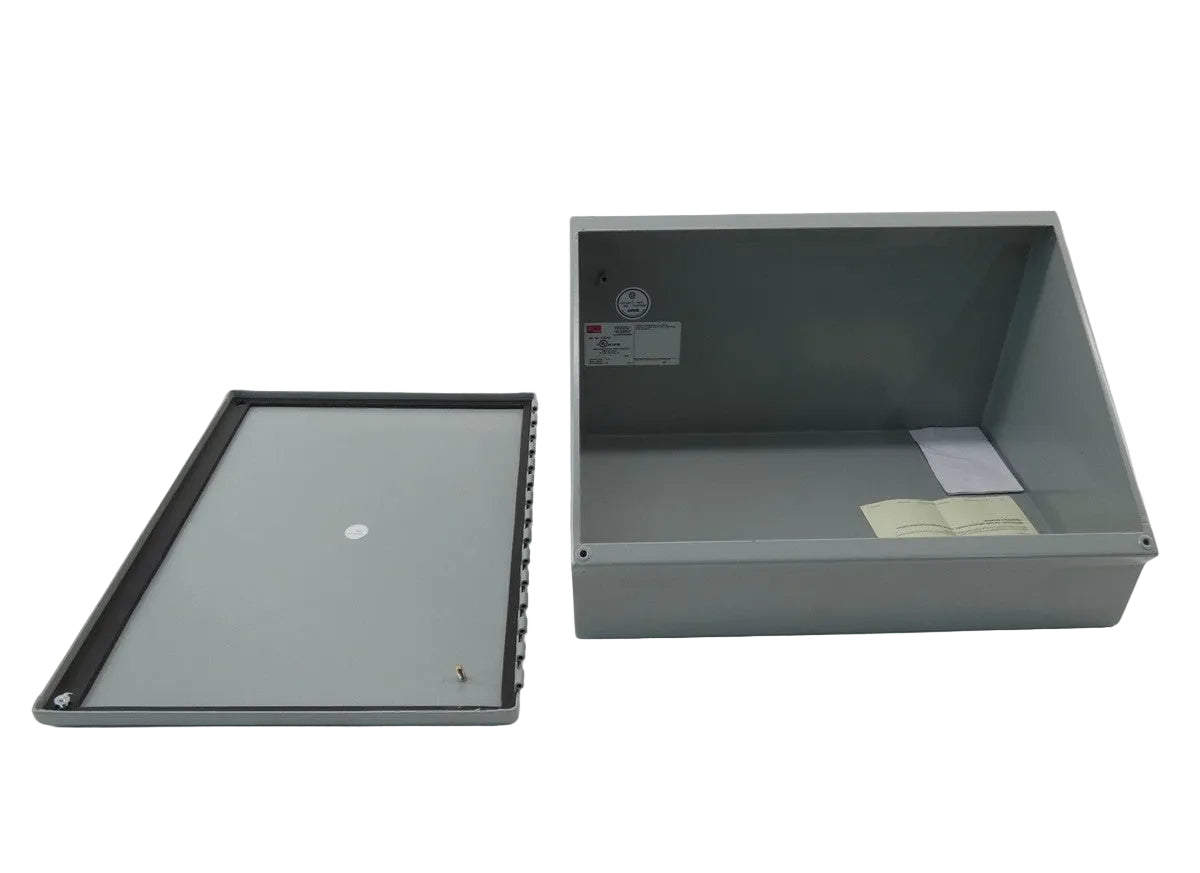

The C12C16 is part of the nVent Hoffman Consolet enclosure series and is designed for applications requiring angled access to control equipment. The enclosure is constructed from 14-gauge mild steel with continuously welded and ground seams for a sealed enclosure structure. Its sloped cover incorporates captive screws, a bonding provision, and an oil-resistant gasket, while the control panel is attached with a continuous hinge along the bottom edge. The enclosure can be positioned on either of two sides to provide approximately 30- or 60-degree surface access for control and instrumentation equipment.
Key Features:
- Sloped Cover: Provides angled access for control and instrumentation devices.
- Steel Construction: Manufactured from durable 14-gauge mild steel.
- Hinged Control Panel: Uses a continuous hinge along the bottom edge for panel access.
- Sealed Seams: Continuously welded and ground seams provide a smooth enclosure structure without holes or knockouts.
- Captivated Screws: Cover screws thread into sealed wells to help maintain enclosure integrity.
- Protective Finish: Features a gray polyester powder-coated finish for the steel enclosure.
- NEMA Protection: Rated NEMA 12 and NEMA 13 for protected industrial applications.
- Mounting Flexibility: Can be positioned on desktops, pedestals, or other flat surfaces.
The C12C16 delivers the reliability and precision required for mounting and protecting control and instrumentation equipment.
