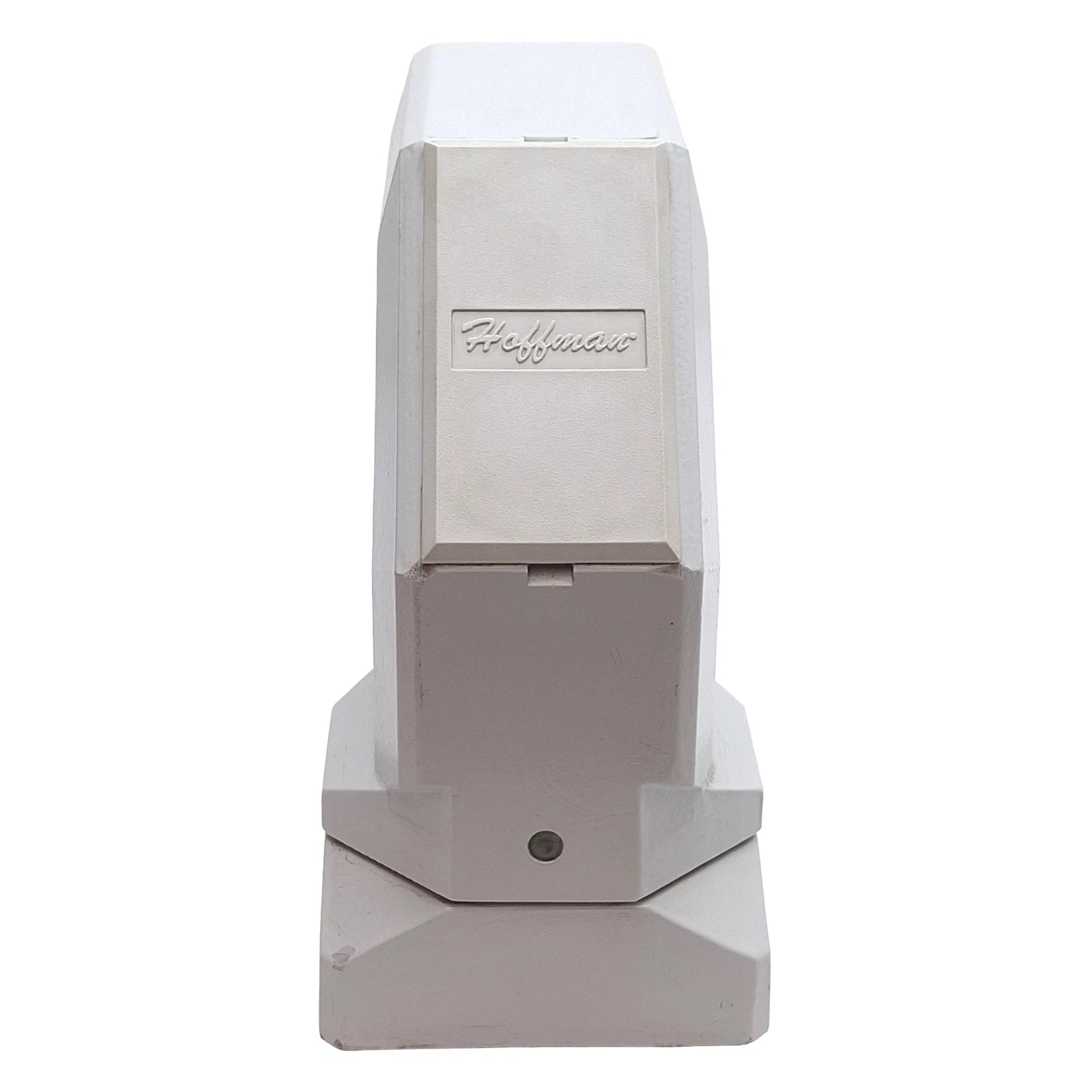

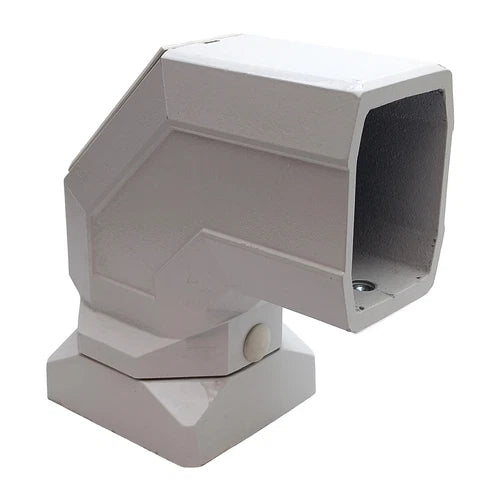

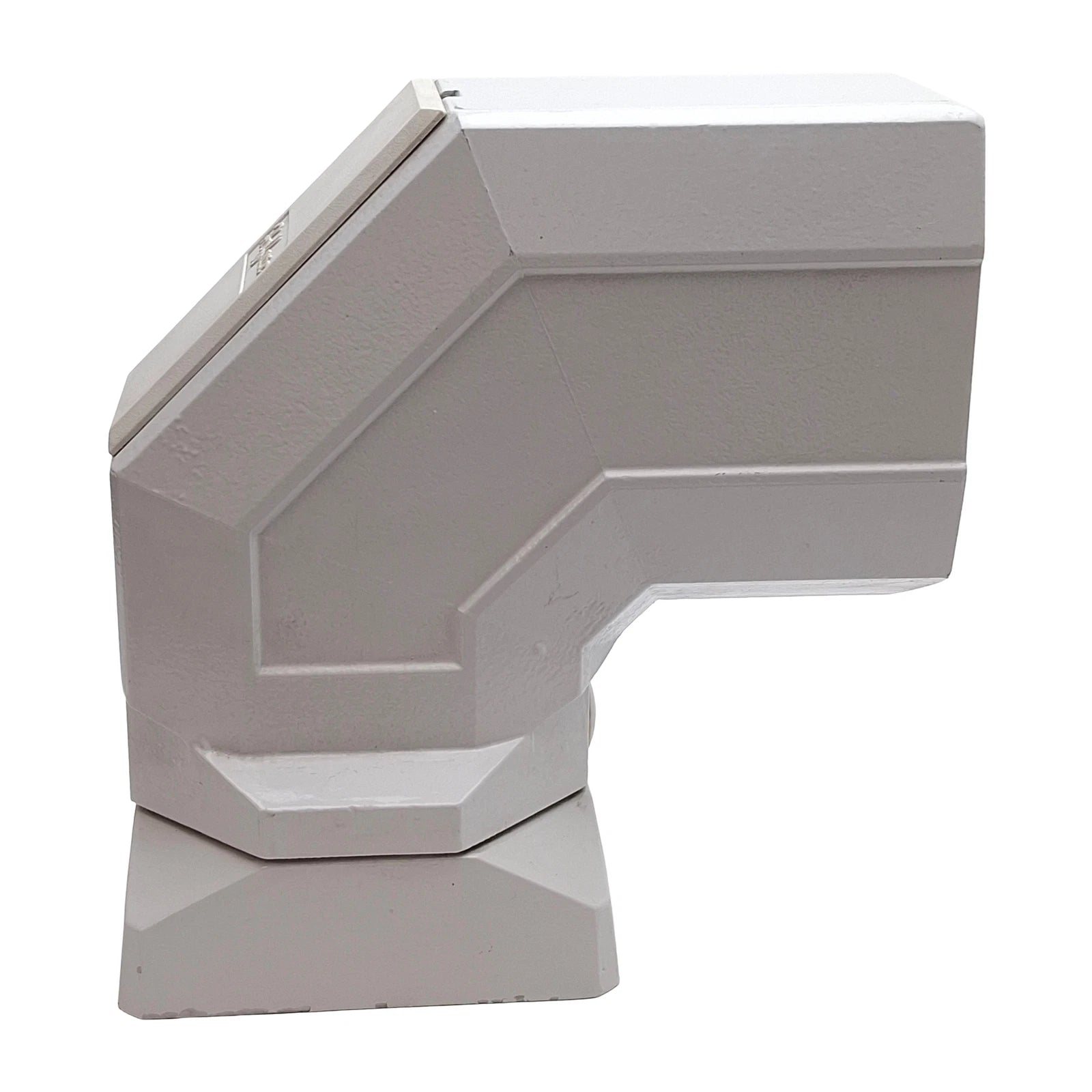

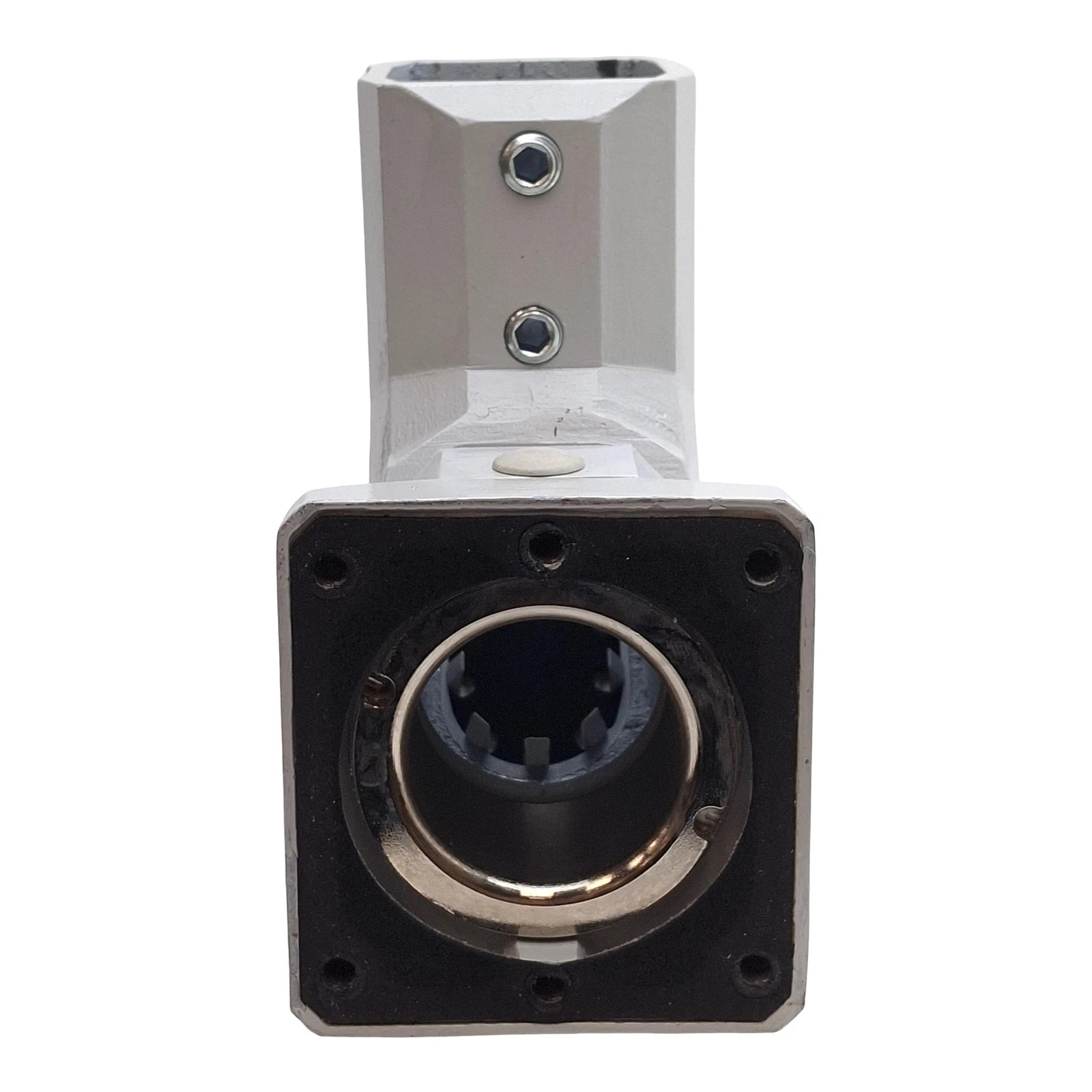

nVent Hoffman CCS2FECLG Compact Series 2 Flange Elbow Coupling
- Regular price
- $715.00
- Sale price
- $715.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CCS2FECLG
Description
nVent Hoffman CCS2FECLG is a flange elbow coupling for the Compact Series 2 pendant arm system, designed to attach directly to an enclosure where a vertical tube is not required. It provides up to 300° of enclosure rotation and includes an access plate for easier wire installation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | nVent Hoffman |
| Category | Industrial Automation |
| Part Number | CCS2FECLG |
| Subcategory | HMI Pendant Arm Components |
| Series | Compact Series 2 |
| Product Type | Flange Elbow Coupling |
| Application | HMI Pendant Arm Systems |
| Compatible Arm Size | 45 × 60 mm |
| Mounting | Direct to Enclosure |
| Finish | RAL 7035 Light Gray Polyester Powder Coat |
| Mounting Hardware | Included |
| Weight | 1.36 kg |
Information About CCS2FECLG
The CCS2FECLG is part of the nVent Hoffman Compact Series 2 HMI pendant arm system. It is designed for use with 45 × 60 mm pendant arm components and mounts directly to the enclosure. The coupling uses a maintenance-free steel and polyamide bearing and is manufactured from cast aluminum with a RAL 7035 light-gray polyester powder coating. Installation hardware, mounting fasteners, and a gasket are included with the coupling.
Key Features:
- Flange Elbow Coupling: Connects a Compact Series 2 pendant arm directly to an enclosure.
- 300° Rotation: Allows the connected enclosure or HMI assembly to rotate through a 300° range.
- 45 × 60 mm Compatibility: Designed for compatible Compact Series 2 pendant arm components.
- Cast Aluminum Construction: Provides a rigid mounting component for HMI arm assemblies.
- Maintenance-Free Bearing: Uses a steel and polyamide bearing arrangement.
- Access Plate: Provides access for easier electrical wire installation.
- Light Gray Finish: Features RAL 7035 light-gray polyester powder coating.
- Installation Hardware: Includes mounting hardware, fasteners, and gasket.
The CCS2FECLG delivers the reliability and precision required for industrial HMI mounting and pendant arm applications.
