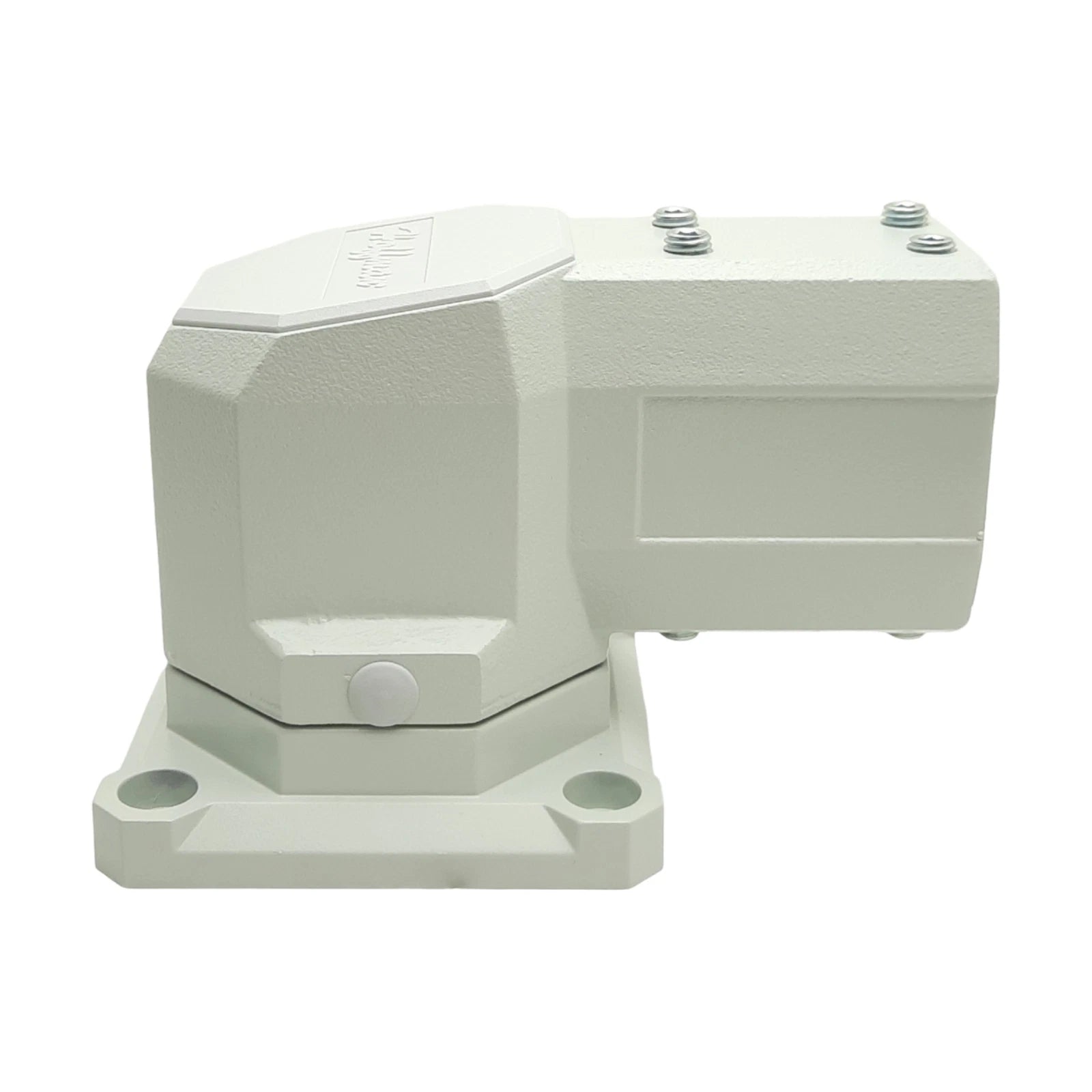

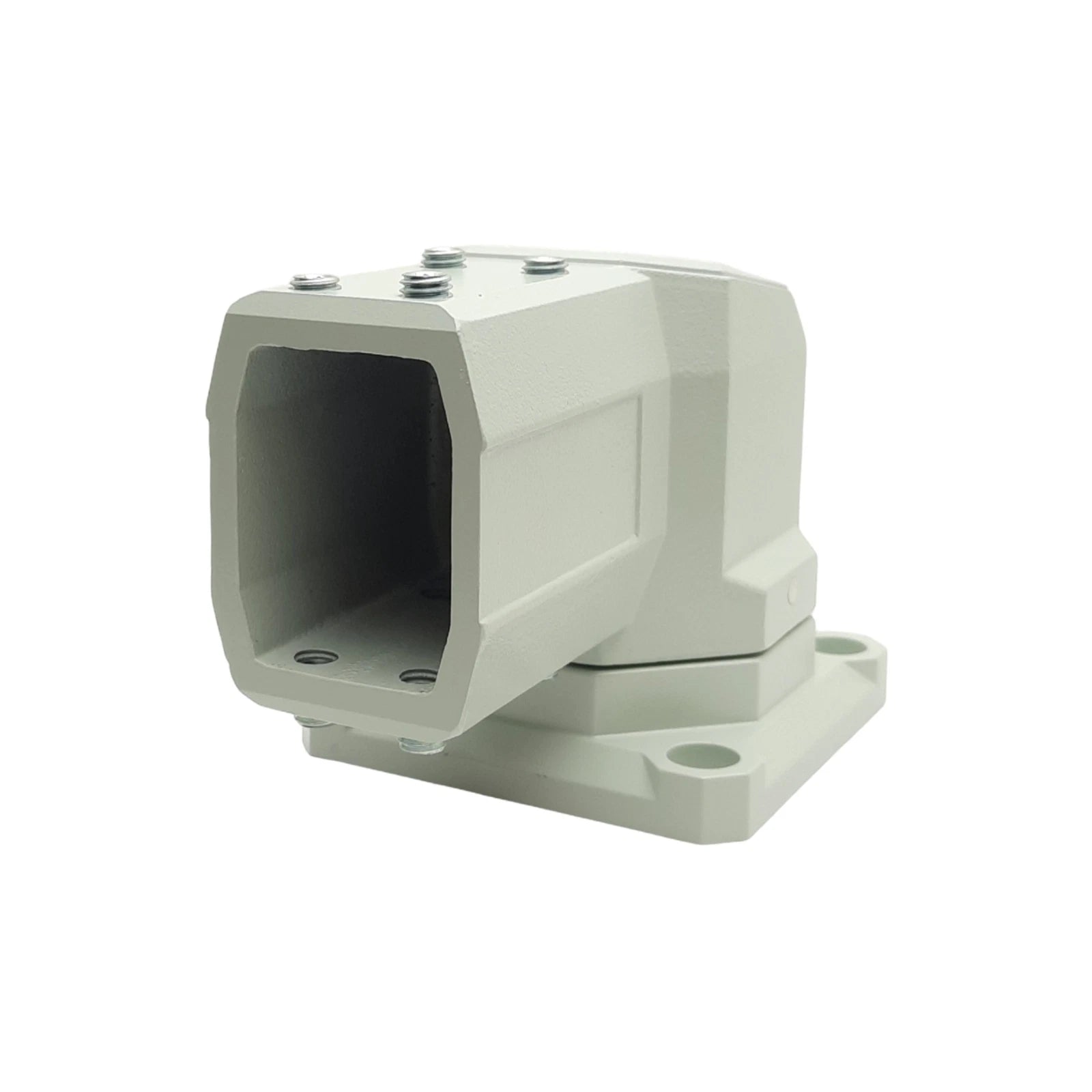

nVent Hoffman CCS2SJLG Compact Series 2 Pendant Arm Set-Up Joint
- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CCS2SJLG
Description
The nVent Hoffman CCS2SJLG is a Compact Series 2 set-up joint designed to connect a suspension system or pendant arm to a horizontal surface. Its cast aluminum construction, 300-degree adjustment range, and access plate provide flexible positioning and convenient wire installation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | nVent Hoffman |
| Category | Panel Accessories |
| Part Number | CCS2SJLG |
| Subcategory | Suspension System Accessories |
| Series | Compact Series 2 |
| Product Type | Set-Up Joint |
| Material | Cast Aluminum |
| Finish | Polyester Powder Coated |
| Tube Size | 45 × 60 mm |
| Adjustment Range | 300° |
| Protection Rating | NEMA 12, IP55 |
| Tube Width | 1.77 in / 45 mm |
| Tube Height | 2.36 in / 60 mm |
| Application | Pendant Arm / Suspension System |
| Weight | 4 lb |
Information About CCS2SJLG
The CCS2SJLG is part of the Compact Series 2 suspension system and is designed for use with 45 x 60 mm tube dimensions. The joint is manufactured from cast aluminum and finished with a light-gray RAL 7035 polyester powder coating. Its adjustable arm can be rotated or turned through a 300-degree range to accommodate different equipment positions. An integrated access plate provides access for wiring installation within the suspension assembly.
Key Features:
- Compact Series 2: Designed as a set-up joint for Compact Series 2 suspension systems.
- Tube Compatibility: Fits 45 x 60 mm suspension tube dimensions.
- Aluminum Construction: Manufactured from cast aluminum for a lightweight structural component.
- 300-Degree Adjustment: Allows the pendant arm to be rotated or positioned through a broad adjustment range.
- Access Plate: Provides convenient access for wire installation.
- Powder-Coated Finish: Uses a light-gray RAL 7035 polyester powder-coated surface.
- Enclosure Protection: Rated NEMA 12 and IP55 for protected industrial applications.
- Pendant Arm Connection: Provides a mounting interface between the suspension system and a horizontal surface.
The CCS2SJLG delivers the reliability and precision required for adjustable suspension and pendant arm installations.
