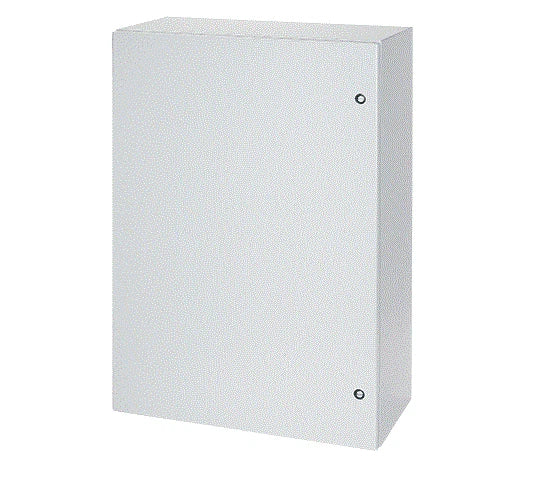

nVent Hoffman CSD30308 30 x 30 x 8 in Steel Wall-Mount Enclosure
- Regular price
- $1,099.00
- Sale price
- $1,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CSD30308
Description
nVent Hoffman CSD30308 is a single-door wall-mount electrical enclosure designed to house and protect electrical and control components in industrial environments. It is constructed from 14-gauge steel and provides IP66 and NEMA 4/12/13 protection against dust, water, and environmental exposure.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | nVent Hoffman |
| Category | Industrial Automation |
| Part Number | CSD30308 |
| Subcategory | Electrical Enclosures |
| Series | CONCEPT CW1 |
| Enclosure Type | Single-Door Wall-Mount Enclosure |
| Material | Steel |
| Material Gauge | 14 Gauge |
| Width | 30 in (762 mm) |
| Height | 30 in (762 mm) |
| Depth | 8 in (203 mm) |
| Door Type | Hinged, Removable |
| Hinge Type | Concealed Hinges |
| Latch Type | Quarter-Turn |
| Finish | ANSI 61 Gray Polyester Powder Coat |
| Protection Rating | IP66 |
| NEMA Rating | NEMA 4, 12, 13 |
| Panel Size | 28.2 × 28.2 in (716 × 716 mm) |
| Weight | 65 lb |
Information About CSD30308
The CSD30308 is part of the nVent Hoffman CONCEPT CW1 series of wall-mounted enclosures. The enclosure features a hinged, removable door with concealed hinges and a quarter-turn latch system for controlled access to installed equipment. Continuous welded seams and a seamless foam-in-place gasket provide a sealed housing for electrical and control applications. The enclosure also provides mounting provisions for compatible CONCEPT panels and accessories.
Key Features:
- Single-Door Design: Provides access to internally mounted electrical and control equipment.
- Steel Construction: Manufactured from 14-gauge steel for a rigid enclosure structure.
- Environmental Protection: Provides IP66 and NEMA 4, 12, and 13 enclosure ratings.
- Wall Mounting: Designed for direct wall mounting in industrial installations.
- Concealed Hinges: Features removable hinge pins and concealed door hinges.
- Quarter-Turn Latches: Uses flush quarter-turn latches for secure door closure.
- Sealed Construction: Includes a seamless foam-in-place gasket for dust- and water-resistant protection.
- Panel Compatibility: Provides mounting provisions for compatible CONCEPT panels and accessories.
The CSD30308 delivers the reliability and precision required for industrial electrical control and equipment enclosure applications.
