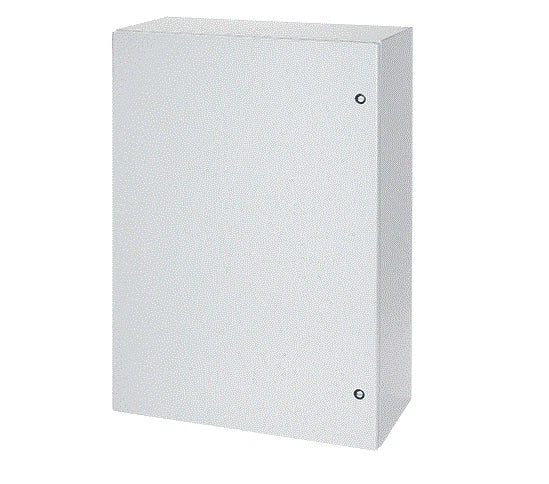

nVent HOFFMAN CSD483612 48x36x12 Concept Single-Door Steel Enclosure
- Regular price
- $1,449.00
- Sale price
- $1,449.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CSD483612
Description
The nVent HOFFMAN CSD483612 is a Concept single-door wall-mount enclosure designed to protect electrical, automation, control, and industrial equipment. It measures 48 × 36 × 12 inches and features a gray powder-coated steel construction, a seamless foam-in-place gasket, concealed hinges, and a three-point latching system. The enclosure is rated NEMA 4, 12, 13 and IP66 for demanding indoor and washdown applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | nVent HOFFMAN |
| Category | Electrical Enclosures |
| Part Number | CSD483612 |
| Subcategory | Wall-Mount Enclosures |
| Series | Concept |
| Enclosure Type | Single-Door Wall-Mount Enclosure |
| Material | Steel / Mild Steel |
| Height | 48 in |
| Width | 36 in |
| Depth | 12 in |
| Material Thickness | 14 Gauge |
| Color | Gray |
| Finish | Polyester Powder Coated |
| Door Opening | 210° |
| Latch Type | Three-Point Quarter-Turn Slotted Latch |
| Gasket | Seamless Foam-in-Place |
| NEMA Rating | Type 4, 12, 13 |
| IP Rating | IP66 |
| Compatible Panel | CP4836 / CP4836G |
| Panel Size | 46.20 × 34.20 in |
| Mounting | Wall Mount |
| Weight | 131 lb |
Information About CSD483612
The CSD483612 is part of the nVent HOFFMAN Concept enclosure family and is designed for machine-control and industrial equipment applications. Its continuously welded and ground-smooth seams, formed door, external body flange, and seamless gasket provide a protected enclosure structure for installed components. The door opens up to 210 degrees and uses removable concealed hinges, while the three-point quarter-turn latch system is used because the enclosure width exceeds 42 inches. Optional CP4836 or CP4836G panels are available separately for mounting internal equipment.
Key Features:
- Single-Door Design: Provides a large access opening for installing and servicing electrical and control equipment.
- Steel Construction: Uses 14-gauge steel for the enclosure body and door, with a durable gray powder-coated finish.
- Three-Point Latching: Uses a three-point quarter-turn slotted latch system appropriate for the wide enclosure design.
- Seamless Gasket: Foam-in-place gasket helps maintain the enclosure seal against dust and water.
- 210-Degree Door Opening: Allows the door to open widely for improved access to internal components.
- Concealed Hinges: Removable hidden hinges provide a clean exterior appearance while allowing door removal.
- NEMA and IP Protection: Provides NEMA Type 4, 12, 13 and IP66 protection for suitable industrial environments.
- Panel Compatibility: Accepts the optional CP4836 or CP4836G internal mounting panels, which are purchased separately.
The CSD483612 delivers the reliability and precision required for protecting electrical, automation, machine-control, and industrial equipment in demanding installations.
