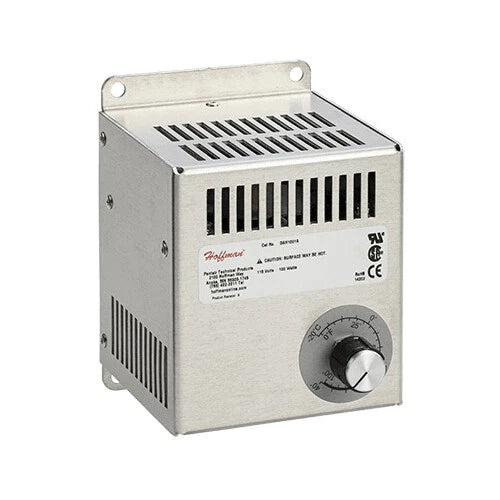

nVent HOFFMAN DAH1001A 100W 115V Fan-Forced Electric Enclosure Heater
- Regular price
- $1,255.00
- Sale price
- $1,255.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DAH1001A
Description
nVent HOFFMAN DAH1001A is a thermostatically controlled, fan-driven electric enclosure heater designed to protect electrical, electronic, and mechanical equipment from low temperatures, condensation, and corrosion. The 100 W heater operates at 115 VAC and uses an aluminum housing with a brushed finish for installation inside totally enclosed metal electrical enclosures.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | nVent HOFFMAN |
| Category | HVAC / Thermal Management |
| Part Number | DAH1001A |
| Subcategory | Enclosure Heaters |
| Series | D85 |
| Product Type | Fan-Forced Electric Enclosure Heater |
| Heating Capacity | 100 W |
| Rated Voltage | 115 VAC |
| Frequency | 50/60 Hz |
| Nominal Current | 0.98 A |
| Thermostat Range | 0°F to 100°F (-18°C to 38°C) |
| Material | Aluminum |
| Finish | Brushed Aluminum |
| Fan Type | Ball Bearing |
| Connection | Terminal Strip with Clamp Connector |
| Height | 5.5 in. |
| Width | 4 in. |
| Depth | 4.8 in. |
| Mounting | Panel / Enclosure Mount |
| Standards | UL 508A Component Recognized, CE, CSA |
| Weight | 1.6 lb |
Information About DAH1001A
The DAH1001A is part of the nVent HOFFMAN D85 series of enclosure heaters and is rated for 100 W operation at 115 VAC and 50/60 Hz. An integrated fan draws cooler air through the bottom of the heater, passes it across the thermostat and heating element, and distributes the warmed air through the top of the unit. The adjustable thermostat provides a temperature range from 0°F to 100°F (-18°C to 38°C), while the ball-bearing fan supports continuous enclosure air circulation. The heater includes a terminal strip with clamp connectors and four 10-32 self-tapping screws for installation.
Key Features:
- Fan-Driven Heating: Circulates warmed air throughout an enclosure to help maintain a stable internal temperature.
- 100 W Heating Capacity: Provides 100 W of heating output for preventing condensation and protecting enclosed equipment.
- 115 VAC Operation: Designed for 115 VAC electrical systems with 50/60 Hz operation.
- Adjustable Thermostat: Allows temperature adjustment from 0°F to 100°F (-18°C to 38°C).
- Aluminum Housing: Uses a brushed aluminum construction for the heater enclosure.
- Ball-Bearing Fan: Provides continuous forced-air circulation across the heating element.
- Terminal Strip: Includes a clamp connector that accepts both solid and stranded wiring.
- Mounting Hardware: Includes four 10-32 self-tapping screws for mounting the heater inside an enclosure.
The DAH1001A delivers the reliability and precision required for electrical enclosures, automation cabinets, control panels, and equipment requiring protection from condensation and low temperatures.
