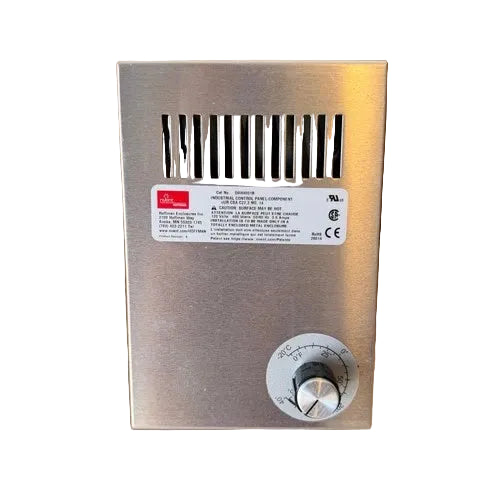

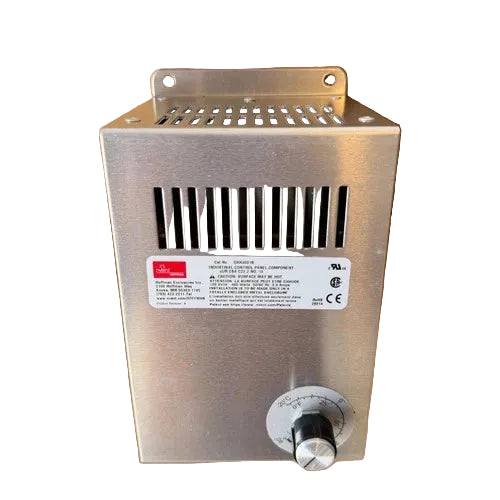

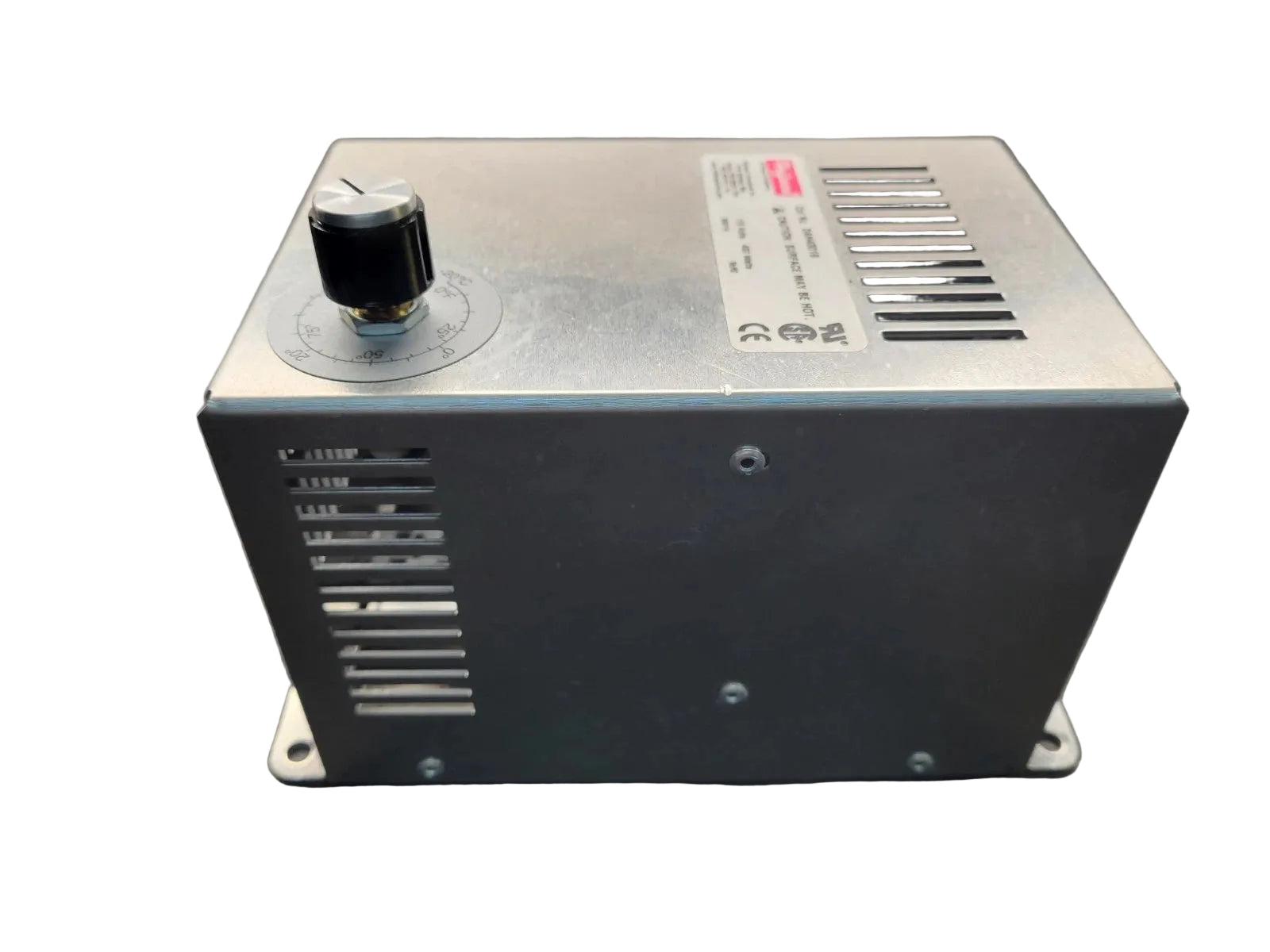

nVent Hoffman DAH4001B 400W 115V Fan-Forced Enclosure Heater
- Regular price
- $675.00
- Sale price
- $675.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DAH4001B
Description
nVent Hoffman DAH4001B is a thermostatically controlled, fan-driven enclosure heater designed to protect electrical and electronic equipment from low temperatures, condensation, and corrosion. It provides 400 W of heating output and operates from a 115 V AC supply.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | nVent Hoffman |
| Category | Industrial Automation |
| Part Number | DAH4001B |
| Subcategory | Enclosure Heaters |
| Series | D85 |
| Product Type | Fan-Forced Electric Enclosure Heater |
| Heating Capacity | 400 W |
| Rated Voltage | 115 V AC |
| Frequency | 50/60 Hz |
| Nominal Current | 3.72 A |
| Thermostat Range | 0 to 100 °F (-18 to 38 °C) |
| Fan Type | Ball Bearing |
| Connection | Terminal Strip with Clamp Connector |
| Height | 7.5 in (190.5 mm) |
| Width | 4.25 in (108 mm) |
| Depth | 4.38 in (111 mm) |
| Mounting Type | Panel Mount |
| Weight | 2.5 lb |
Information About DAH4001B
The DAH4001B is part of the nVent Hoffman D85 series of electric enclosure heaters. Its fan draws cooler air from the bottom, passes it across the heating element and thermostat, and releases warmed air through the top. The aluminum housing has a brushed finish and incorporates a ball-bearing fan and terminal strip with a clamp connector. The adjustable thermostat provides a setting range from 0 to 100 °F (-18 to 38 °C).
Key Features:
- 400 W Heating Output: Provides 400 W of heat for enclosure temperature control.
- 115 V AC Supply: Designed for operation from a 115 V AC power source.
- Fan-Driven Heating: Circulates air across the heating element for more even heat distribution.
- Adjustable Thermostat: Provides a temperature adjustment range from 0 to 100 °F (-18 to 38 °C).
- Ball-Bearing Fan: Uses a ball-bearing fan for forced-air circulation.
- Aluminum Housing: Features a brushed aluminum enclosure for the heater assembly.
- Terminal Connection: Includes a terminal strip with a clamp connector for solid or stranded wire.
- Mounting Hardware: Supplied with four 10-32 self-tapping mounting screws.
The DAH4001B delivers the reliability and precision required for industrial enclosure temperature control and condensation prevention.
