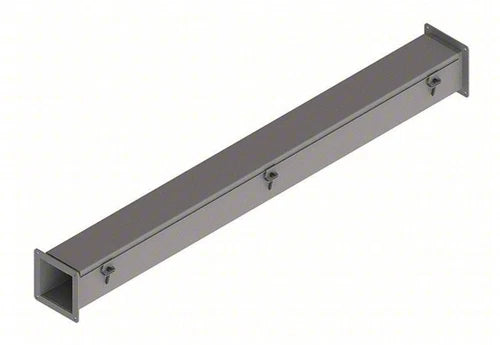

nVent Hoffman F44W48 4 x 4 x 48 in NEMA 12 Feed-Through Wireway
- Regular price
- $612.00
- Sale price
- $612.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: F44W48
Description
nVent Hoffman F44W48 is a feed-through straight-section wireway designed to enclose and protect electrical wires and cables in industrial power distribution applications. It measures 4 × 4 × 48 inches and features a 14-gauge steel construction, hinged cover, gasketed design, and NEMA 12/IP54 protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | nVent Hoffman |
| Category | Industrial Automation |
| Part Number | F44W48 |
| Subcategory | Wireways |
| Series | F20 |
| Product Type | Feed-Through Straight Section Wireway |
| Material | Mild Steel |
| Material Gauge | 14 Gauge |
| Length | 48 in (1219 mm) |
| Width | 4 in (102 mm) |
| Height | 4 in (102 mm) |
| Finish | ANSI 61 Gray Polyester Powder Coat |
| NEMA Rating | NEMA 12 |
| IP Rating | IP54 |
| Standards | UL 870; CSA; RoHS |
| Weight | 17 lb |
Information About F44W48
The F44W48 is part of the nVent Hoffman F20 series of feed-through wireways. Its closed-loop configuration provides an accessible opening along one side for routing and servicing wires and cables. The section uses continuously welded and ground seams, heavy-duty butt hinges, and external screw clamps for enclosure assembly. Multiple straight sections and compatible fittings can be combined to create longer wireway runs and directional changes.
Key Features:
- Feed-Through Design: Provides a continuous enclosed path for routing wires and cables.
- Steel Construction: Manufactured from 14-gauge mild steel for industrial applications.
- Hinged Cover: Uses a butt-hinged cover for convenient access to installed wiring.
- NEMA 12 Protection: Provides protection against dust, dirt, and dripping or splashing liquids.
- IP54 Rating: Provides protection against limited dust ingress and water spray.
- Gasketed Construction: Uses an oil-resistant gasket to improve sealing around the cover.
- No Knockouts: Supplied without factory-installed knockouts for flexible field configuration.
- Modular Installation: Can be connected with additional sections and fittings for extended wireway runs.
The F44W48 delivers the reliability and precision required for industrial wire routing, cable management, and power distribution applications.
