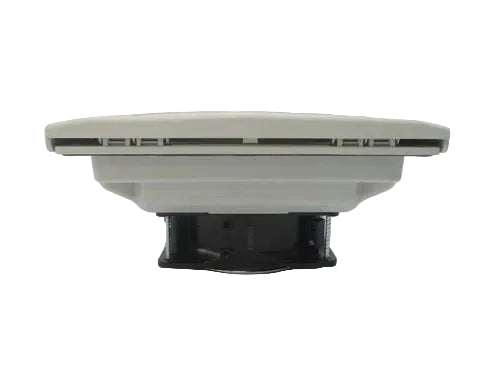

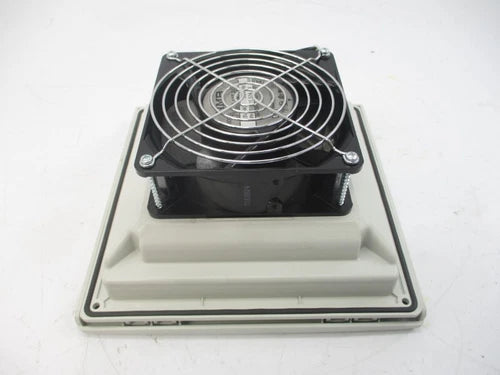

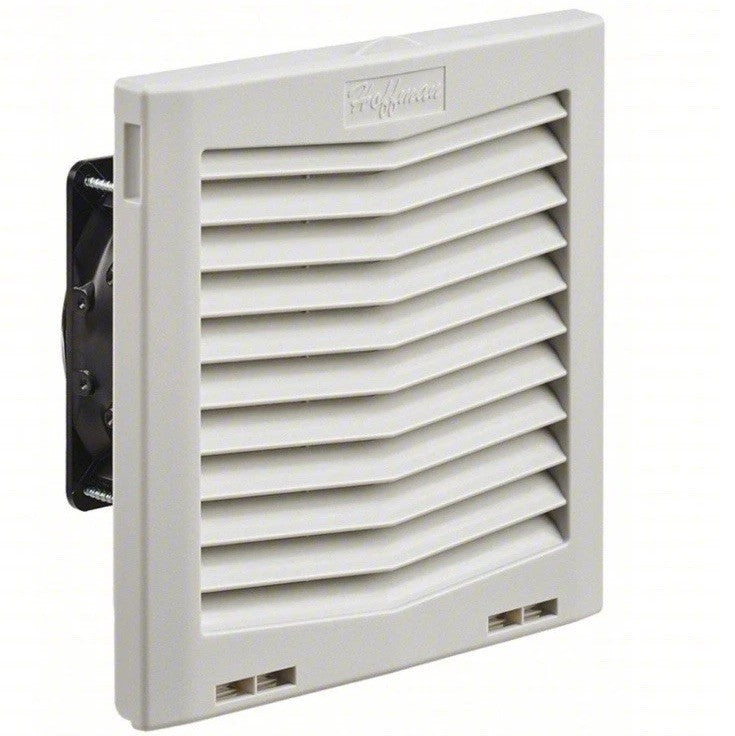

nVent Hoffman HF0916414 115V 70 CFM Side-Mount Filter Fan
- Regular price
- $362.00
- Sale price
- $362.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HF0916414
Description
nVent Hoffman HF0916414 is a side-mount filter fan designed to provide forced-air cooling for electrical enclosures. It operates at 115 V AC and provides 70 CFM (119 m³/hr) of free airflow for thermal management of enclosed electrical and automation equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | nVent Hoffman |
| Category | Industrial Automation |
| Part Number | HF0916414 |
| Subcategory | Enclosure Cooling Fans |
| Product Type | Side-Mount Filter Fan |
| Rated Voltage | 115 V AC |
| Frequency | 50/60 Hz |
| Nominal Current | 0.16/0.14 A |
| Power Consumption | 11/10 W |
| Free Airflow | 70 CFM (119 m³/hr) |
| Airflow with 1 Exhaust Grille | 44 CFM (75 m³/hr) |
| Airflow with 2 Exhaust Grilles | 55 CFM (93 m³/hr) |
| Speed | 2600/2900 RPM |
| Sound Level | 43/46 dB |
| Mounting Type | Side Mount, Click-Fit |
| Housing Material | UV-Resistant Plastic |
| Dimensions | 8.19 × 8.21 × 4.15 in |
| Operating Temperature | -20 to +65 °C |
| Weight | 2.1 lb |
Information About HF0916414
The HF0916414 belongs to the nVent Hoffman HF Series of enclosure filter fans and uses a click-fit mounting design for installation in an enclosure side wall. The unit incorporates a hinged grille that remains attached when opened, allowing access to the replaceable filter. Electrical connection is provided through a terminal block, while a rope gasket helps maintain the enclosure seal. The fan is intended for industrial automation, control panels, and other equipment enclosures requiring forced-air cooling.
Key Features:
- Side-Mount Design: Installs through the side wall of compatible electrical enclosures.
- 115 V AC Operation: Designed for 115 V AC electrical supply at 50/60 Hz.
- 70 CFM Airflow: Provides 70 CFM (119 m³/hr) of free-air circulation.
- Click-Fit Installation: Allows installation without tools or mounting screws.
- Hinged Grille: Remains attached when opened for convenient filter replacement.
- Terminal Block: Provides a direct electrical connection for installation.
- IP54 Protection: Provides protection suitable for compatible Type 12 enclosure applications.
- Light Gray Housing: Uses RAL 7035 light gray UV-resistant plastic construction.
The HF0916414 delivers the reliability and precision required for industrial enclosure cooling and thermal management.
Description
nVent Hoffman HF0916414 is a side-mount filter fan designed to provide forced-air cooling for electrical enclosures. It operates at 115 V AC and provides 70 CFM (119 m³/hr) of free airflow for thermal management of enclosed electrical and automation equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | nVent Hoffman |
| Category | Industrial Automation |
| Part Number | HF0916414 |
| Subcategory | Enclosure Cooling Fans |
| Product Type | Side-Mount Filter Fan |
| Rated Voltage | 115 V AC |
| Frequency | 50/60 Hz |
| Nominal Current | 0.16/0.14 A |
| Power Consumption | 11/10 W |
| Free Airflow | 70 CFM (119 m³/hr) |
| Airflow with 1 Exhaust Grille | 44 CFM (75 m³/hr) |
| Airflow with 2 Exhaust Grilles | 55 CFM (93 m³/hr) |
| Speed | 2600/2900 RPM |
| Sound Level | 43/46 dB |
| Mounting Type | Side Mount, Click-Fit |
| Housing Material | UV-Resistant Plastic |
| Dimensions | 8.19 × 8.21 × 4.15 in |
| Operating Temperature | -20 to +65 °C |
| Weight | 2.1 lb |
Information About HF0916414
The HF0916414 belongs to the nVent Hoffman HF Series of enclosure filter fans and uses a click-fit mounting design for installation in an enclosure side wall. The unit incorporates a hinged grille that remains attached when opened, allowing access to the replaceable filter. Electrical connection is provided through a terminal block, while a rope gasket helps maintain the enclosure seal. The fan is intended for industrial automation, control panels, and other equipment enclosures requiring forced-air cooling.
Key Features:
- Side-Mount Design: Installs through the side wall of compatible electrical enclosures.
- 115 V AC Operation: Designed for 115 V AC electrical supply at 50/60 Hz.
- 70 CFM Airflow: Provides 70 CFM (119 m³/hr) of free-air circulation.
- Click-Fit Installation: Allows installation without tools or mounting screws.
- Hinged Grille: Remains attached when opened for convenient filter replacement.
- Terminal Block: Provides a direct electrical connection for installation.
- IP54 Protection: Provides protection suitable for compatible Type 12 enclosure applications.
- Light Gray Housing: Uses RAL 7035 light gray UV-resistant plastic construction.
The HF0916414 delivers the reliability and precision required for industrial enclosure cooling and thermal management.
