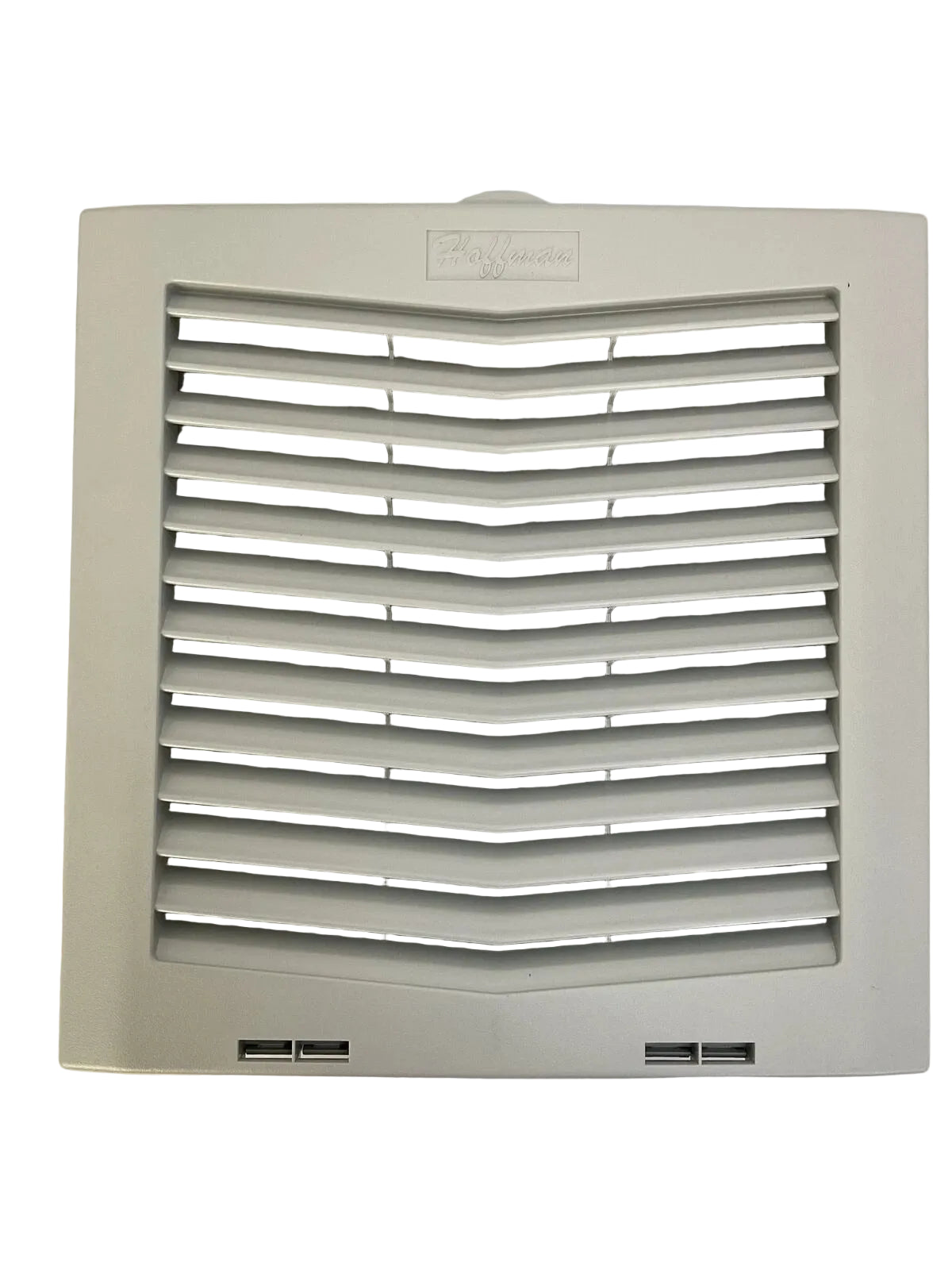

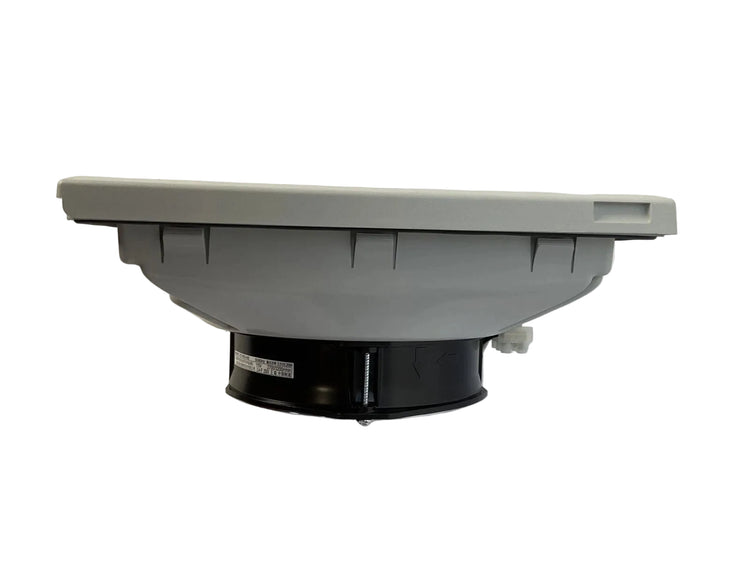

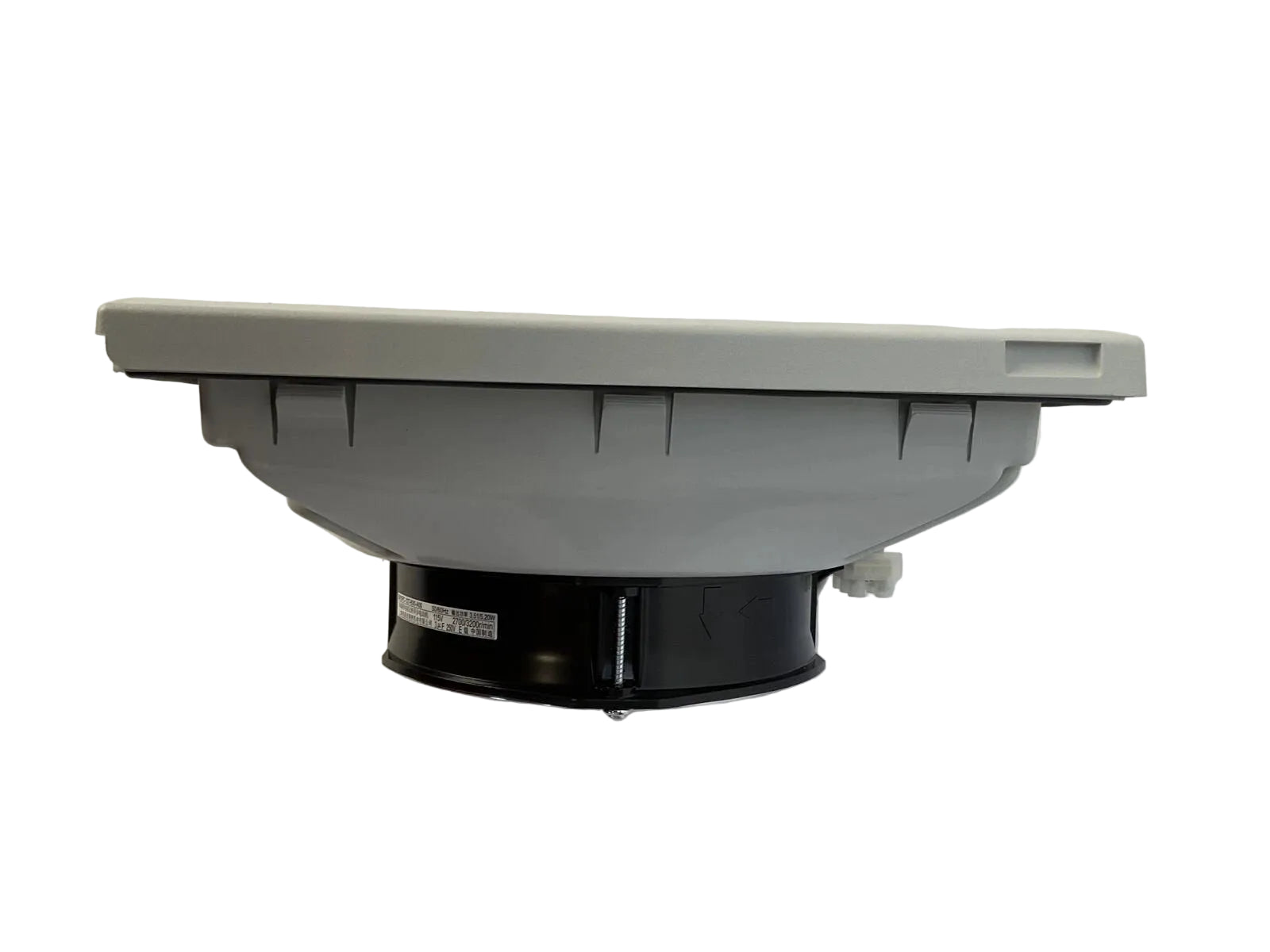

nVent Hoffman HF1016414 115V Filter Fan with 159 CFM Airflow
- Regular price
- $457.00
- Sale price
- $457.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HF1016414
Description
The nVent Hoffman HF1016414 is a 115 VAC filter fan designed to provide forced airflow for cooling electrical and industrial enclosures. It delivers 159 CFM of airflow through a polyester fiber filter and uses a UV-resistant plastic grille with an IP54-rated enclosure configuration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | nVent Hoffman |
| Category | Enclosure Cooling |
| Part Number | HF1016414 |
| Subcategory | Filter Fans |
| Series | MCLF |
| Airflow Rate | 159 CFM |
| Voltage Rating | 115 VAC |
| Frequency | 50/60 Hz |
| Current Rating | 0.38/0.36 A |
| Power Rating | 35/32 W |
| Filter Type | Polyester Fiber |
| Grille Material | ABS Plastic |
| Enclosure Rating | NEMA 12 / IP54 |
| Speed | 2700/3200 RPM |
| Sound Level | 53/56 dB |
| Termination | Terminal Block |
| Weight | 3 lb |
Information About HF1016414
The HF1016414 is part of the nVent Hoffman HF filter fan range and is designed for side-mounted enclosure ventilation. Its housing uses rugged plastic with a molded-channel rope gasket to create a sealed interface with the enclosure. The unit features a polyester fiber filter, ABS grille, terminal-block connection, and Click-Fit mounting design for installation and filter servicing. It operates at 115 VAC, 50/60 Hz, with a thermally suitable AC fan rated for continuous enclosure cooling applications.
Key Features:
- Airflow Capacity: Provides 159 CFM of forced airflow for enclosure ventilation.
- AC Operation: Designed for 115 VAC single-phase power at 50/60 Hz.
- Filter Media: Uses polyester fiber to filter incoming air before it enters the enclosure.
- Plastic Grille: Features a rugged ABS grille designed for enclosure-mounted applications.
- IP54 Protection: Provides protection against dust and water spray for the specified installation environment.
- Click-Fit Mounting: Allows fast installation of the filter fan onto the enclosure.
- Easy Filter Access: Uses an Easy-Grip tab for convenient removal and replacement of the filter.
- Sealing Gasket: Uses a rope gasket seated in a molded channel to help seal the enclosure opening.
The HF1016414 delivers the reliability and precision required for filtered airflow and thermal management of electrical enclosures.
