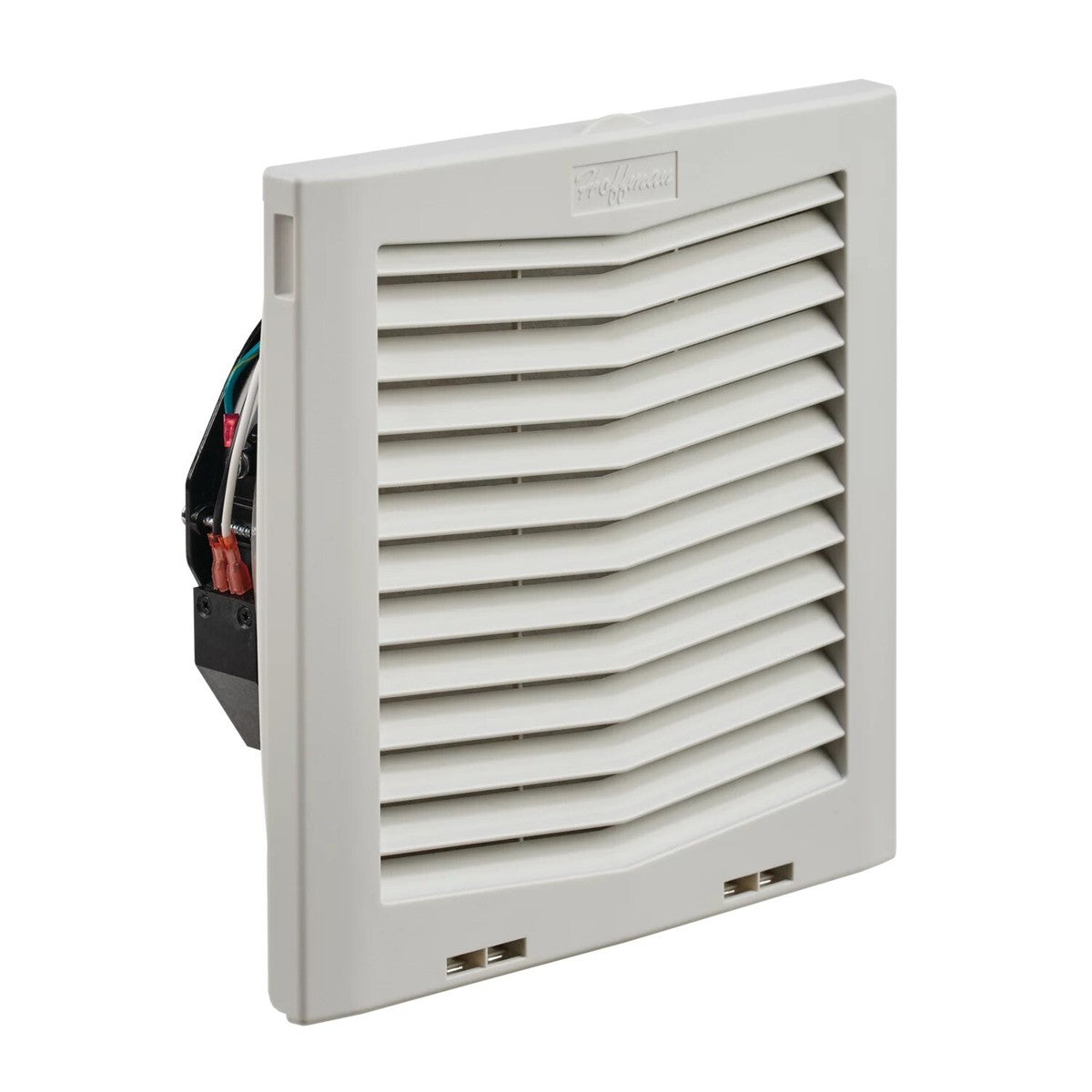

nVent Hoffman HF1024414 24V 159 CFM Side-Mount Filter Fan
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HF1024414
Description
nVent Hoffman HF1024414 is a side-mount filter fan designed to provide forced-air cooling for electrical enclosures. It operates from 24 V DC and delivers a free-air flow of 159 CFM, helping remove heat from enclosed control and automation equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | nVent Hoffman |
| Category | Industrial Automation |
| Part Number | HF1024414 |
| Subcategory | Enclosure Cooling Fans |
| Series | HF |
| Product Type | Side-Mount Filter Fan |
| Voltage Rating | 24 V DC |
| Current Rating | 0.88 A |
| Power Consumption | 21.1 W |
| Free Airflow | 159 CFM (270 m³/hr) |
| Airflow with 1 Exhaust Grille | 128 CFM (217 m³/hr) |
| Speed | 3750 RPM |
| Sound Level | 53/56 dB |
| Grille Material | ABS |
| Dimensions | 10.13 × 10.14 × 5.18 in |
| Operating Temperature | -20 to +65 °C |
| Weight | 3.1 lb |
Information About HF1024414
The HF1024414 is part of the nVent Hoffman HF Series of enclosure filter fans and uses an MCLF design for side-wall installation. Its click-fit construction allows installation without tools or mounting screws, while the hinged grille provides access for filter maintenance. The unit uses an ABS grille, terminal block connections, and a standard gasket to maintain the enclosure seal. It is intended for industrial automation, control equipment, power distribution, and other applications requiring enclosure thermal management.
Key Features:
- Side-Mount Design: Installs directly into the side wall of a compatible electrical enclosure.
- 24 V DC Operation: Designed for a nominal input voltage of 24 V DC.
- Airflow Capacity: Provides 159 CFM (270 m³/hr) free-air circulation.
- Click-Fit Installation: Allows quick enclosure mounting without tools or screws.
- Filter Access: Hinged grille remains attached and opens for convenient filter replacement.
- Enclosure Protection: Rated for NEMA 12 and IP54 enclosure applications.
- Terminal Connections: Provides terminal block connections for electrical installation.
- Thermal Management: Helps dissipate heat from enclosed automation and electrical equipment.
The HF1024414 delivers the reliability and precision required for industrial enclosure cooling and thermal management.
