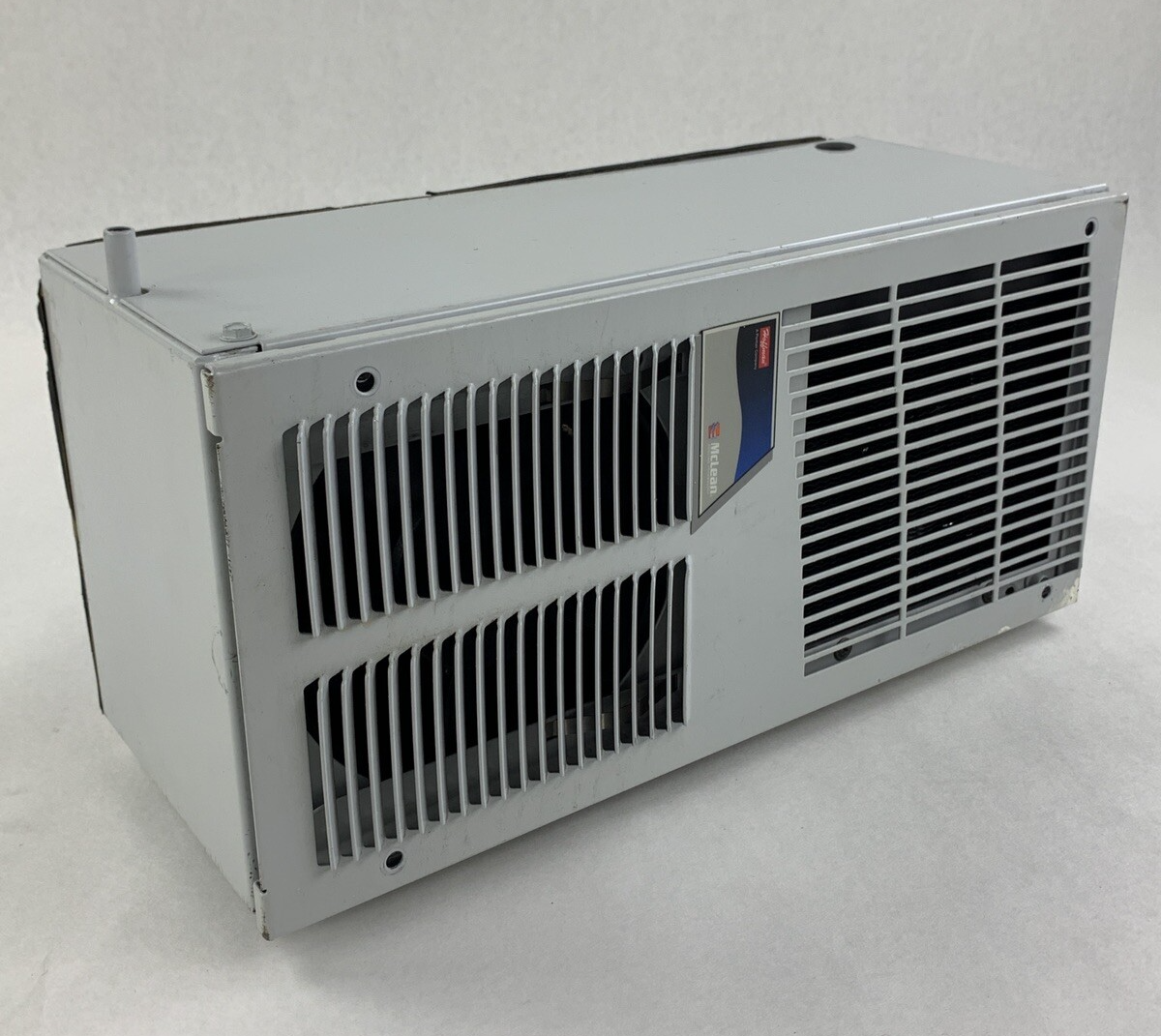

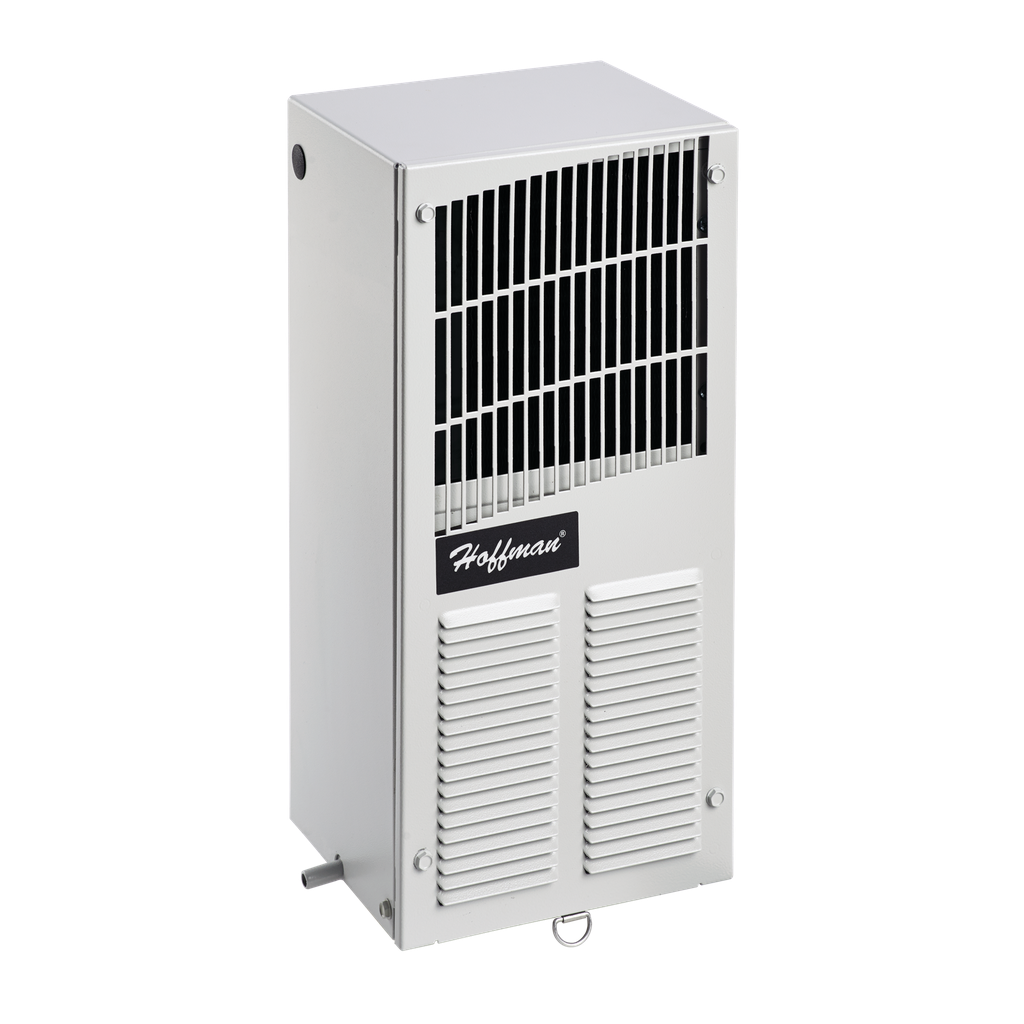

nVent Hoffman T150116G100 800 BTU 115V Outdoor Enclosure Air Conditioner
- Regular price
- $14,299.00
- Sale price
- $14,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: T150116G100
Description
nVent Hoffman T150116G100 is a compact outdoor enclosure air conditioner designed to remove heat from electrical and automation enclosures. It provides 800 BTU/hr (235 W) nominal cooling capacity and operates from a 115 V AC single-phase supply.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | nVent Hoffman |
| Category | Industrial Automation |
| Part Number | T150116G100 |
| Subcategory | Enclosure Air Conditioners |
| Series | T-Series Compact Outdoor T15 |
| Product Type | Outdoor Enclosure Air Conditioner |
| Cooling Capacity | 800 BTU/hr (235 W) |
| Nominal Voltage | 115 V AC |
| Phase | Single-Phase |
| Frequency | 50/60 Hz |
| Current Rating | 3.6/3.8 A |
| Power Rating | 235 W |
| Refrigerant | R134a or R513A |
| Operating Temperature | -40 to 131 °F (-40 to 55 °C) |
| Enclosure Rating | NEMA 3R / 4 / 12 |
| Mounting | Side Mount |
| Control Type | Mechanical Thermostat |
| Dimensions | 15.75 × 7.5 × 6.3 in |
| Weight | 28 lb |
Information About T150116G100
The T150116G100 belongs to the nVent Hoffman T-Series Compact Outdoor T15 family of sealed enclosure cooling units. It uses a galvanized sheet-metal housing with a light-gray RAL 7035 finish and is designed for outdoor industrial environments. The unit includes a mechanical thermostat, reusable aluminum mesh filter, compressor heater, and head-pressure control. Its compact side-mount configuration is intended for thermal management of electrical controls, automation equipment, and other heat-generating components.
Key Features:
- Cooling Capacity: Provides 800 BTU/hr (235 W) nominal cooling capacity.
- Power Supply: Operates from a 115 V AC single-phase supply.
- Outdoor Operation: Designed for ambient temperatures from -40 to 131 °F (-40 to 55 °C).
- Mechanical Thermostat: Provides temperature control for the enclosure interior.
- Reusable Filter: Includes a cleanable aluminum mesh filter for coil protection.
- Compact Design: Provides a narrow footprint for installations with limited enclosure space.
- Outdoor Protection: Rated for NEMA Type 3R, 4, and 12 applications.
- Easy Mounting: Includes mounting flanges, hardware, and gasket for enclosure installation.
The T150116G100 delivers the reliability and precision required for industrial enclosure cooling and outdoor thermal management.
