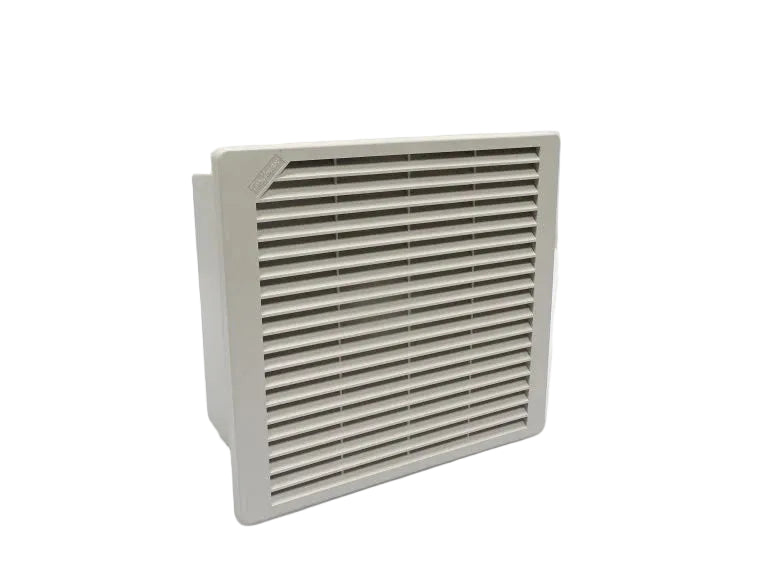

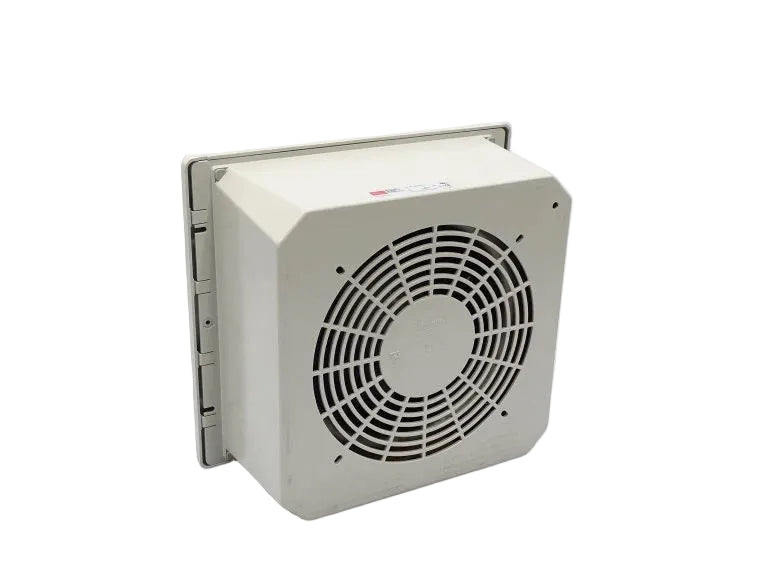

nVent HOFFMAN TFP101 10-Inch 115V Side-Mount Filter Fan Package
- Regular price
- $849.00
- Sale price
- $849.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TFP101
Description
The nVent HOFFMAN TFP101 is a side-mount filtered enclosure fan package designed to provide forced airflow for cooling electrical and industrial enclosures. It uses a 10-inch fan with a light-gray composite grille, 115 VAC power, and provides up to 215 CFM of free airflow at 60 Hz. The package includes the fan, air filter, composite air plenum, finger guard, and grille for enclosure cooling applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | nVent HOFFMAN |
| Category | Thermal Management |
| Part Number | TFP101 |
| Subcategory | Filter Fans |
| Series | D85 |
| Fan Size | 10 in |
| Voltage | 115 VAC |
| Frequency | 50/60 Hz |
| Airflow | 180 CFM at 50 Hz / 215 CFM at 60 Hz |
| Power Consumption | 64 W at 50 Hz / 80 W at 60 Hz |
| Current | 0.58 A at 50 Hz / 0.70 A at 60 Hz |
| Mounting | Side Mount |
| Filter Type | Washable Foam |
| Grille Material | ABS Composite |
| Housing Material | Polycarbonate |
| Operating Temperature | Up to 167°F (75°C) |
| Dimensions | 11.81 × 12.99 × 5.25 in |
| Enclosure Rating | NEMA Type 1 |
| Weight | 12.0 lb |
Information About TFP101
The TFP101 is part of the nVent HOFFMAN D85 series of TFP side-mount filter fans and uses a composite construction suitable for basic enclosure ventilation. The unit operates at 115 VAC and 50/60 Hz, with maximum power consumption of 64 W at 50 Hz and 80 W at 60 Hz. Its dynamically balanced polycarbonate fan impeller and split-capacitor motor provide 180 CFM airflow at 50 Hz and 215 CFM at 60 Hz, while the washable foam filter helps limit contaminants entering the enclosure. The fan package is designed for side mounting and is supplied with the necessary mounting hardware and installation instructions.
Key Features:
- Side-Mount Configuration: Designed for installation on the side of electrical enclosures where filtered forced airflow is required.
- 10-Inch Fan: Uses a 10-inch fan assembly for moving air through the enclosure cooling system.
- 115 VAC Operation: Designed for 115 VAC power at 50/60 Hz.
- High Airflow: Provides 180 CFM at 50 Hz and up to 215 CFM at 60 Hz under free-air conditions.
- Washable Filter: Includes a washable foam filter to help reduce dust and contaminants entering the enclosure.
- Composite Construction: Uses a polycarbonate housing and light-gray ABS composite grille for the fan package.
- Ball-Bearing Motor: The 10-inch fan uses ball-bearing construction and a split-capacitor motor for continuous operation.
- Complete Package: Includes the fan, air filter, composite air plenum, finger guard, grille, mounting hardware, and installation instructions.
The TFP101 delivers the reliability and precision required for cooling electrical, automation, controls, drives, and power-distribution enclosures.
