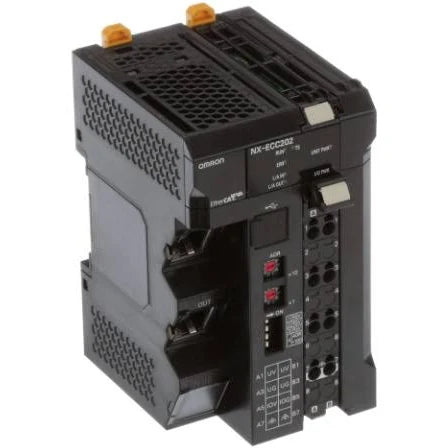

NX-ECC202 | OMRON EtherCAT Coupler Unit with 63 I/O Capacity and Dual RJ45 Ports
- Regular price
- $235.00
- Sale price
- $235.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NX-ECC202
Description
The OMRON NX-ECC202 is an EtherCAT slave communication coupler designed for the NX Series modular I/O platform. It supports communication cycles from 250 μs to 4 ms and supplies up to 10A to connected I/O units. With dual RJ45 ports and DIN rail mounting, it provides robust and flexible integration into EtherCAT-based automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | OMRON |
| Category | PLCs/Machine Control |
| Part Number | NX-ECC202 |
| Subcategory | PLC Module/Rack |
| Type | Communications Module |
| For Use With | NX Series |
| Voltage – Supply | 5–24 VDC |
| Communication | EtherCAT Slave |
| Communication Cycle | 250 μs – 4 ms |
| I/O Capacity | Up to 63 units |
| Power Consumption | 1.45 W |
| Termination Style | RJ45, Spring Terminal |
| Ports | 2 × RJ45 EtherCAT |
| Mounting Type | DIN Rail |
| Operating Temperature | 0°C to 55°C |
| Approvals | CE, cULus, C-Tick, KC, Lloyd, NK |
| Protection Rating | IP20 |
| Product Type | I/O EtherCAT Coupler |
Information About NX-ECC202
The NX-ECC202 is an EtherCAT coupler unit from the OMRON NX Series, engineered to interface distributed I/O with high-speed EtherCAT networks. Its compact design includes both RJ45 communication ports and spring terminal wiring, making it adaptable to various panel layouts and connection requirements. Supporting up to 63 I/O units, the module ensures scalable expansion for complex machine architectures. Designed for industrial environments, it offers a wide supply voltage range, distributed clock support, and compliance with major global approvals, enabling seamless integration into modern automation systems.
Key Features:
- EtherCAT communication: High-speed slave coupler for NX Series I/O.
- Wide cycle range: Supports 250 μs to 4 ms communication cycles.
- Large expansion capacity: Connects up to 63 I/O units per coupler.
- Dual RJ45 ports: Provides reliable EtherCAT network daisy-chaining.
- 10A I/O power supply: Ensures stable operation for connected modules.
- DIN rail mount: Simplifies installation in control cabinets.
- Industrial-rated certifications: CE, cULus, C-Tick, KC, Lloyd, NK compliant.
- Low power consumption: Operates at only 1.45 W for efficient energy usage.
The NX-ECC202 delivers the reliability and precision required for high-speed distributed I/O communication.
