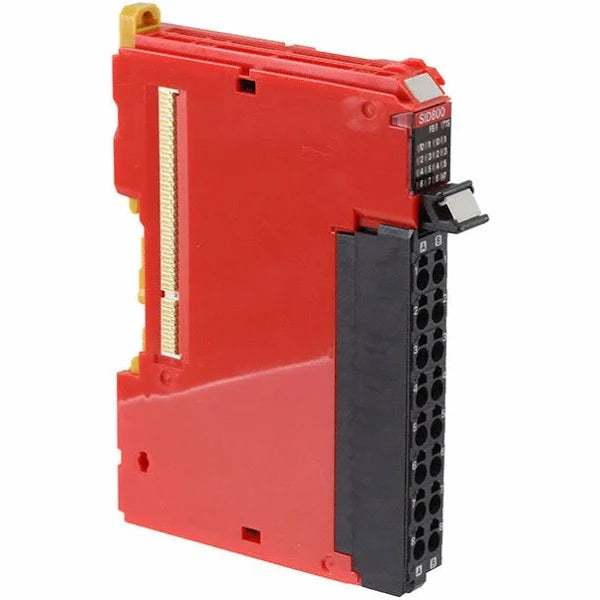

NX-SID800 | OMRON 8 Digital Safety Inputs, PNP 24 VDC, screwless push-in connector, 12 mm wide
- Regular price
- $245.00
- Sale price
- $245.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NX-SID800
Description
The Omron NX-SID800 is a safety input module designed for use with NX-series modular safety control systems. It provides 8 safety-rated digital inputs for monitoring emergency stops, safety gates, and other protective devices.
Technical Specifications
| Condition | New/Never Used |
| Brand | OMRON |
| Controller Type | General Purpose |
| Part Number | NX-SID800 |
| Number of Inputs and Type | 8 - Digital |
| Safety Category | Category 4, PLe, SIL3 |
| Mounting Type | DIN Rail |
| Termination Style | Spring Terminal |
| Operating Temperature | 0°C ~ 55°C |
| Features | Test Output |
| Series | NX-S |
| Switching Voltage | 24 VDC |
| Width | 12 mm |
| Weight |
0.05 kgs
|
Information About NX-SID800
The NX-SID800 is part of the Omron NX Safety I/O series, developed to enable modular, high-integrity safety control over EtherCAT networks. It offers 8 independent safety inputs for connecting devices such as emergency stop buttons, interlock switches, safety mats, and light curtains. The module communicates with an NX-SL safety CPU via the FailSafe over EtherCAT (FSoE) protocol, providing deterministic, SIL3-rated safety communication. It includes integrated diagnostics such as cross-circuit detection, short-circuit detection, and wire-break monitoring to enhance system reliability. Compact and DIN rail–mounted, the NX-SID800 supports hot-swapping and easy wiring for scalable distributed safety architectures.
Key Features:
- Design: Safety input module for NX-series safety control systems.
- Channels: 8 safety-rated digital input channels.
- Safety Protocol: Communicates via FailSafe over EtherCAT (FSoE).
- Diagnostics: Detects short circuits, cross faults, and wire breaks.
- Safety Certification: Rated up to SIL 3 (IEC 61508) and PL e (ISO 13849-1).
- Integration: Connects to NX-SL safety CPUs in EtherCAT-based systems.
- Installation: Compact DIN rail–mounted design with hot-swap capability.
- Application Range: Suitable for machine safety, robotics, and industrial automation systems.
The Omron NX-SID800 delivers the safety integrity, diagnostics, and flexibility required for building advanced safety systems in industrial automation.
