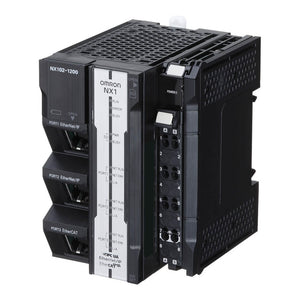

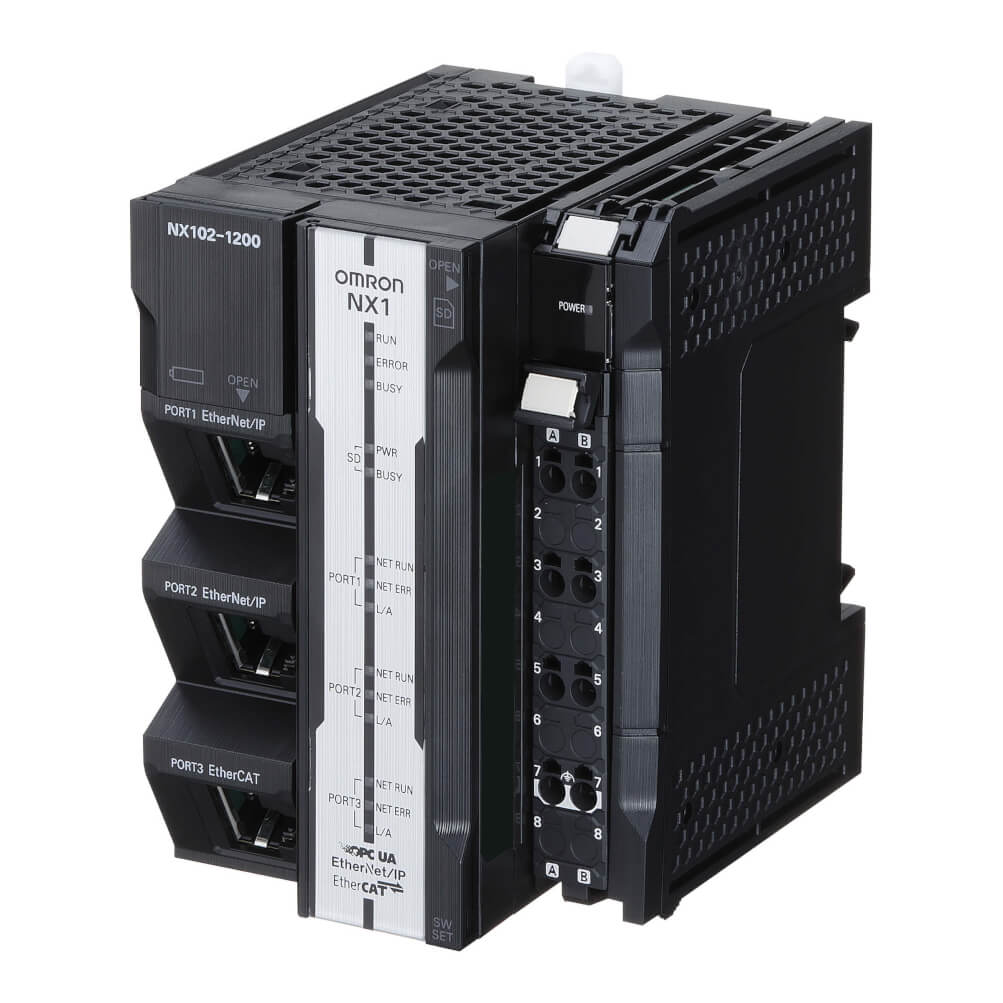

NX102-1100 | Omron Sysmac NX102 Modular PLC CPU with Motion Control
- Regular price
- $1,232.00
- Sale price
- $1,232.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NX102-1100
Description
The Omron NX102-1100 is a compact modular CPU designed for advanced machine control and integrated motion applications. It supports motion, position, and sequence control while enabling high-speed communication through EtherCAT and Ethernet-based networks. This controller is engineered for scalable automation systems requiring deterministic performance and flexible expansion.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLC Controllers |
| Part Number | NX102-1100 |
| Subcategory | Modular CPU Controllers |
| Series | NX102 Series |
| Product Type | Modular CPU |
| Mounting Type | DIN Rail Mount |
| Supply Voltage | 24 VDC |
| Controller Functions | Motion, Position, Sequence Control, OPC-UA |
| Primary Task Cycle Time | 1 ms |
| Program Memory | 5 MB |
| Variable Memory | 33.5 MB |
| Max. Synchronous Axes | 4 |
| Max. PTP Axes | 4 |
| Max. Total Axes | 15 |
| Communication Ports | EtherCAT Master, EtherNet/IP, Ethernet TCP/IP |
| Communication Options | RS-232C, RS-422, RS-485 |
| Max. Remote I/O Nodes | 64 |
| I/O System | NX I/O Bus |
| Max. Expansion Units | 32 |
| Dimensions (H x W x D) | 100 mm x 66 mm x 100 mm |
| Weight | 470 g |
Information About NX102-1100
The NX102-1100 is part of Omron’s Sysmac NX102 series, which combines PLC and motion control functionality in a single modular CPU. It is built to operate on the NX I/O Bus and supports expansion with multiple remote I/O nodes and additional units. The controller integrates motion control, OPC-UA communication, and real-time networking to streamline system architectures. Its DIN rail–mounted design and compact dimensions make it suitable for space-efficient control panels in industrial automation environments.
Key Features:
- Integrated Motion Control CPU: Combines logic, motion, and position control in one unit.
- Multi-Axis Support: Handles up to 4 synchronous axes, 4 PTP axes, and 15 total axes including virtual axes.
- High-Speed Task Execution: Features a primary task cycle time of 1 ms for deterministic control.
- Large Memory Capacity: Includes 5 MB program memory and 33.5 MB variable memory.
- Advanced Communication Interfaces: Supports EtherCAT master, EtherNet/IP, and Ethernet TCP/IP.
- Modular NX I/O Architecture: Compatible with NX I/O Bus and up to 32 expansion units.
- OPC-UA Capability: Enables secure data exchange with higher-level systems.
The NX102-1100 delivers the reliability and precision required for high-performance modular PLC and motion control systems.
