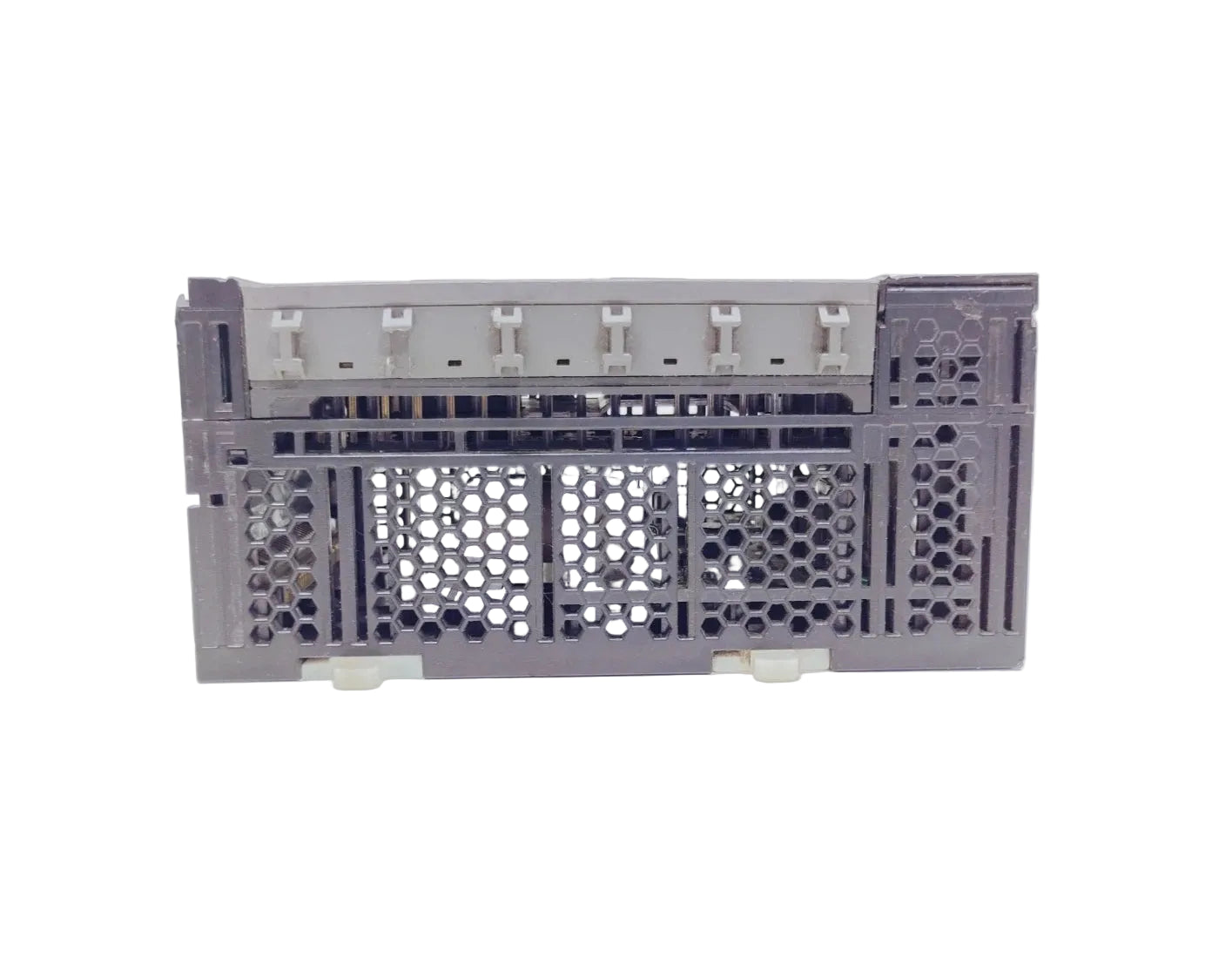

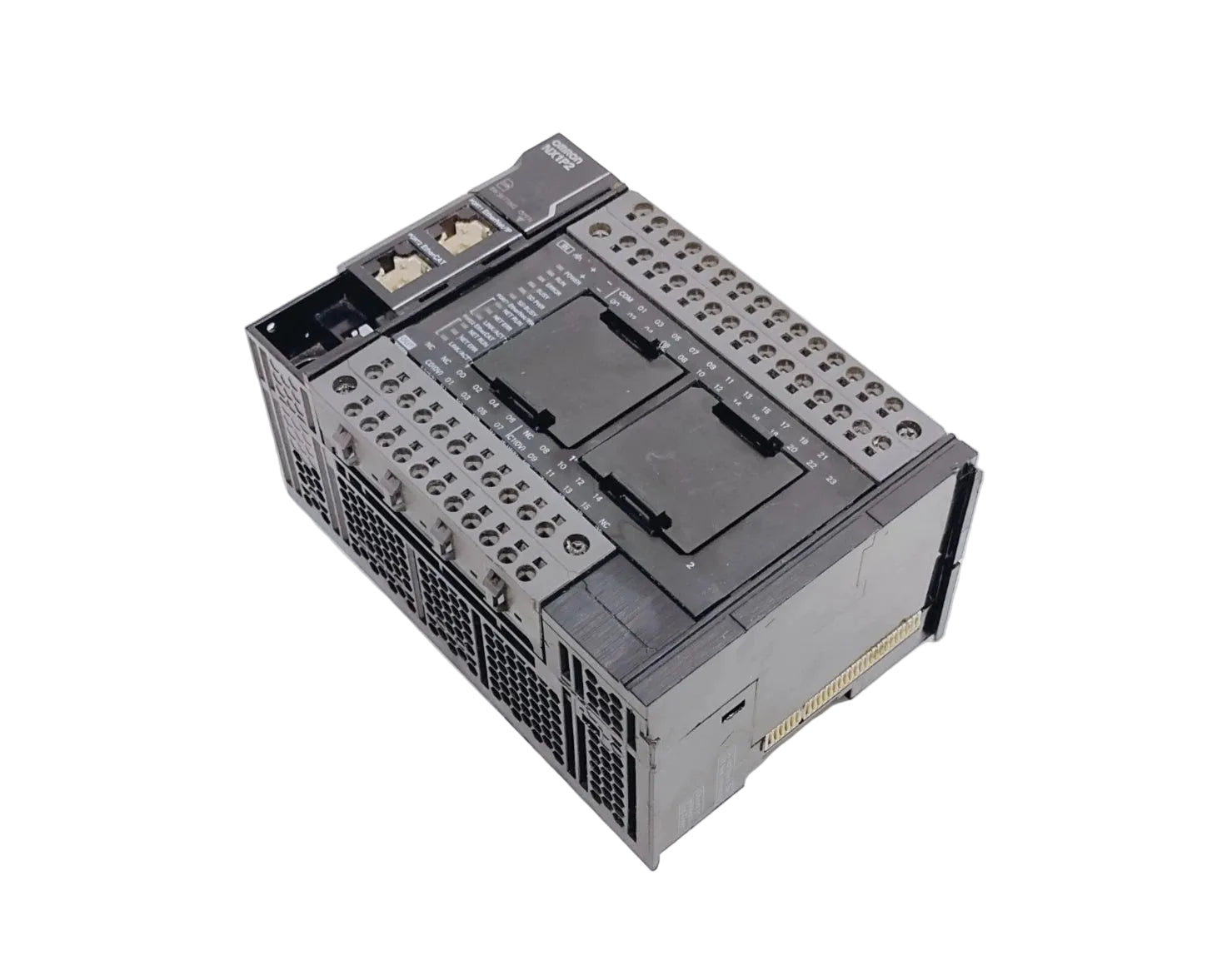

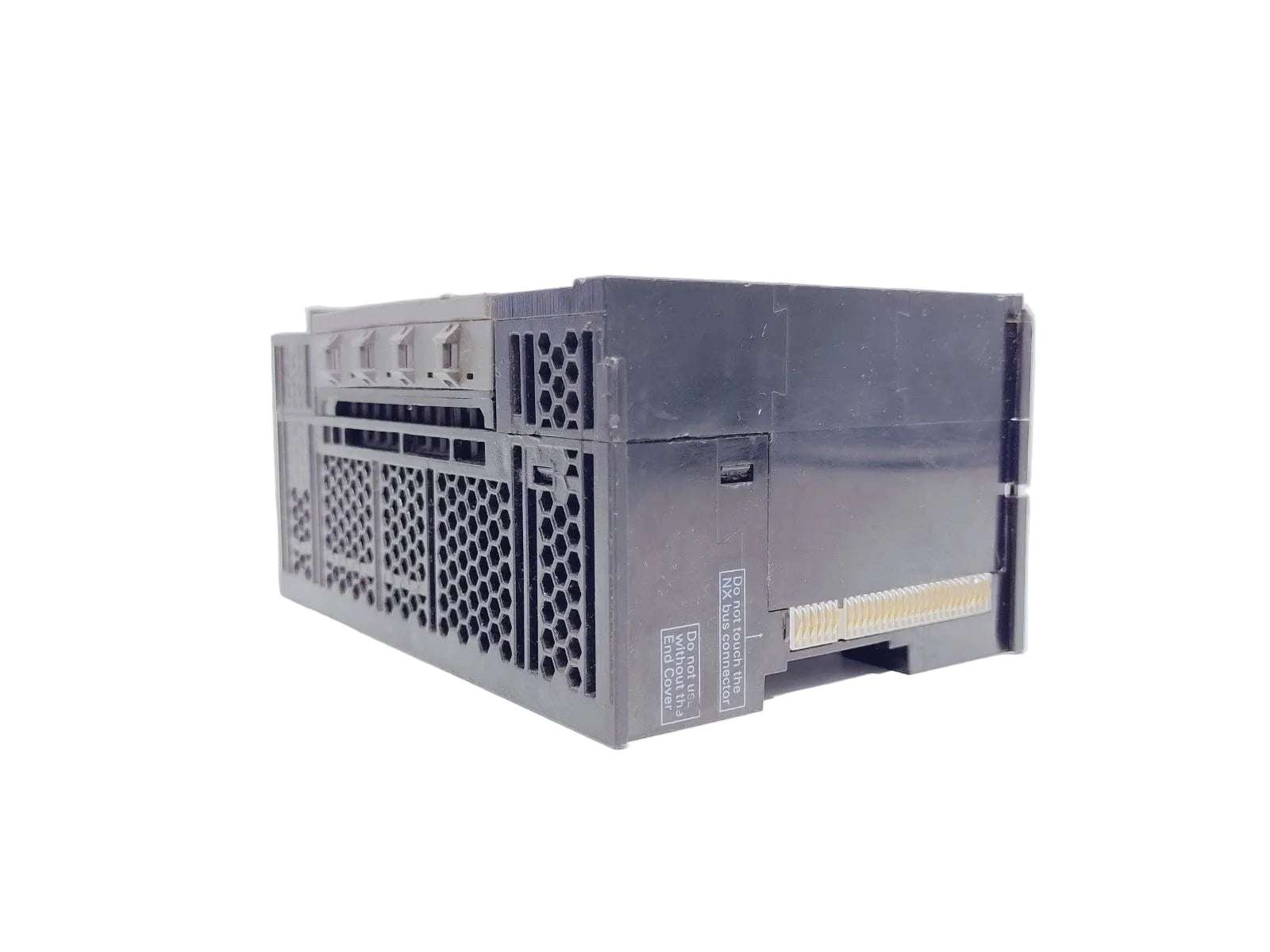

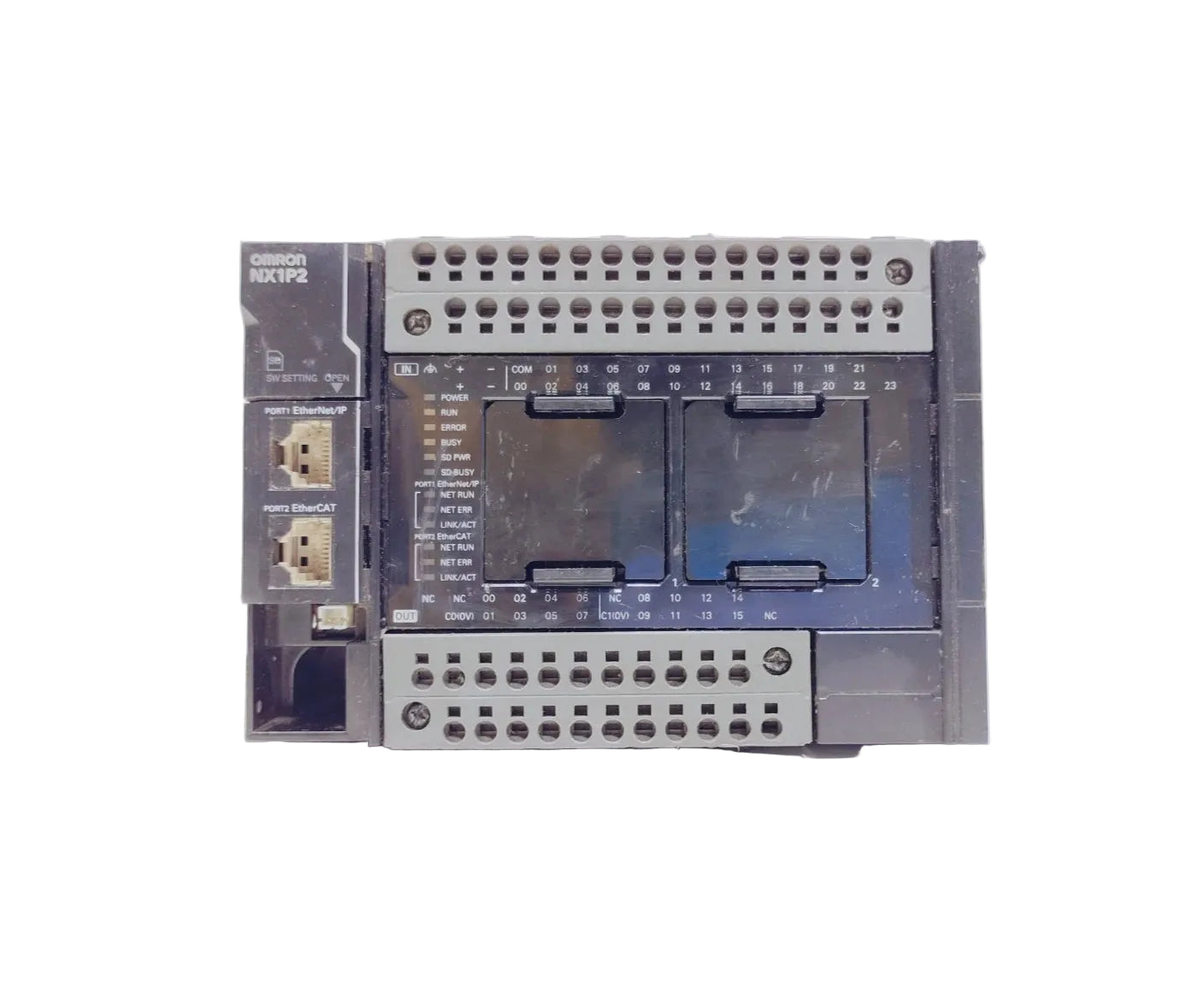

NX1P2-1040DT | Omron NX1P2 Programmable Controller 40 I/O NPN EtherCAT
- Regular price
- $1,287.00
- Sale price
- $1,287.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NX1P2-1040DT
Description
The Omron NX1P2-1040DT is a compact programmable controller designed for integrated logic, motion, and network control in industrial automation systems. It combines built-in digital I/O, multi-axis motion capability, and high-speed communication in a single Sysmac NX1P CPU unit.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation |
| Part Number | NX1P2-1040DT |
| Subcategory | Programmable Logic Controllers |
| Controller Type | Sysmac NX1P CPU |
| Primary Task Cycle Time | 2 ms |
| Program Memory | 1.5 MB |
| Variable Memory | 2 MB |
| Number of Digital Inputs | 24 |
| Input Type | PNP / NPN |
| Number of Digital Outputs | 16 |
| Output Type | NPN Transistor |
| Max. Synchronous Axes | 2 |
| Max. PTP Axes | 4 |
| EtherCAT Nodes | Up to 16 |
| Communication Ports | EtherCAT Master, EtherNet/IP, Ethernet TCP/IP |
| Ethernet Ports | 2 |
| Serial Option Boards | Up to 2 (RS-232C / RS-422 / RS-485) |
| Max. Expansion Units | 8 |
| Supply Voltage | 20.4–28.8 VDC |
| Dimensions (W × H × D) | 148 × 100 × 71 mm |
| Weight | 650 g |
Information About NX1P2-1040DT
The NX1P2-1040DT is part of Omron’s Sysmac NX1P controller family, developed to integrate machine control, motion, and networking into a compact PLC platform. This controller supports both synchronous servo control and point-to-point motion, enabling flexible machine architectures. It includes built-in EtherCAT and EtherNet/IP communication, allowing seamless integration with drives, I/O, and higher-level systems. The design supports expansion through NX units and serial option boards, providing scalability for evolving automation requirements.
Key Features
- Integrated High-Speed PLC And Motion Control: Combines logic processing, motion control, and network communication within a single compact CPU.
- 40 Built-In Digital I/O Points: Includes 24 digital inputs and 16 NPN transistor outputs for direct sensor and actuator connections.
- Multi-Axis Motion Capability: Supports up to 2 synchronous servo axes and 4 point-to-point axes for coordinated machine movement.
- EtherCAT And EtherNet/IP Connectivity: Enables real-time drive control and efficient data exchange across automation networks.
- Expandable System Architecture: Supports up to 8 expansion units and 16 remote EtherCAT nodes for scalable system design.
- Serial Communication Flexibility: Accepts up to two serial option boards for RS-232C, RS-422, or RS-485 communication.
- Compact Industrial Form Factor: Space-saving dimensions allow installation in small control panels without sacrificing performance.
The NX1P2-1040DT delivers the reliability and precision required for compact, networked machine control and motion automation systems.
