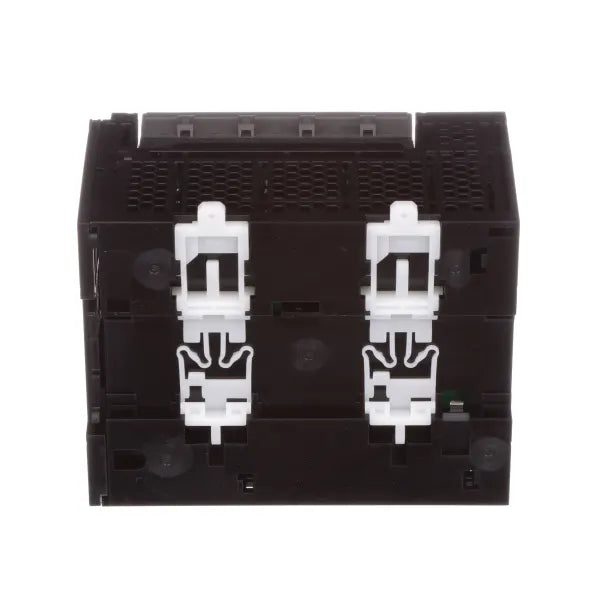

NX1P2-9024DT1 | Omron | CPU
- Regular price
- $525.00
- Sale price
- $525.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: NX1P2-9024DT1
Description
The Omron Automation NX1P2-9024DT1 CPU is part of the NX-12P Series and features 24 built-in I/O points and support for up to 4 axes. It utilizes PNP configuration for its inputs and offers advanced motion control capabilities that were traditionally handled by dedicated controllers or specialized units.
With continuous operation facilitated by electronic cams, the NX1P enhances productivity and meets a variety of production requirements. Notably, the NX1P is designed to retain user programs, set values, and variables in its built-in memory without the need for a battery, ensuring data integrity during power interruptions.
Technical Specifications
Specifications
|
Part # |
NX1P2-9024-DT1 |
|
Manufacturer |
OMRON |
|
Category |
PLCs/Machine Control |
|
Subcategory |
VDC Logic I/O Module |
|
Input Type |
PNP/NPN |
|
Max. Number Of Expansion Units |
8 |
|
Max. Number Of Ptp Axes |
4 |
|
Max. Number Of Remote I/O Nodes |
16 |
|
Number Of Built-In Digital I/Os |
24 |
|
Output Type |
PNP |
|
Program Memory |
1.5 MB |
|
Variables Memory |
2 MB |
|
Compliant With Standard(S) |
cULus (Class I Division 2 Products for Hazardous Locations) |
|
Contents |
1 x NX-END02 end cover |
|
Controller Functionality |
Motion control, Sequence control |
|
Depth |
71 mm |
|
Digital Inputs |
14 x digital inputs (24Vdc) |
|
Digital Outputs |
10 x digital outputs (PNP, 24Vdc) |
|
Functions |
Machine Automation Programmable Logic Controller (PLC) CPU unit with 4 axes (4 single-axis position control axes) and 24 built-in I/O points |
|
Height |
100 mm |
|
I/O System |
NX I/O Bus, NX option port |
|
Main Function |
CPU unit |
|
Manufacturer Product Status |
Commercialized |
|
Max. Number Of Axes (Incl. Virtual) |
4 |
|
Memory Capacity |
1.5MB (Program) |
|
Mounting Mode |
DIN rail |
|
Number Of Ethernet Ports |
2 |
|
Number Of Serial Option Boards |
1 |
|
Primary Task Cycle Time |
2 ms |
|
Product Depth |
71 mm |
|
Product Height |
107.5 mm |
|
Product Series / Family Name |
NX1P series |
|
Product Width |
124 mm |
|
Real-Time Clock |
1 |
|
Related Product Group |
H249 - NX I/O Series |
|
Sub-Range Name |
NX1P2 |
|
Supply Voltage Dc |
20.4-28.8 V |
|
Width |
130 mm |
Information About NX1P2-9024DT1
The Omron Automation NX1P2-9024DT1 CPU belongs to the NX-12P Series and features 24 built-in I/O points and supports up to 4 axes. It employs PNP configuration. The NX1P2 CPU unit offers advanced motion control capabilities, which were traditionally handled by dedicated controllers or specialized units. This includes continuous operation facilitated by electronic cams, enhancing productivity and catering to diverse production requirements.
One notable feature of the NX1P2 CPU is its ability to retain user programs, set values, and variables in its built-in memory even during power interruptions, eliminating the need for a battery backup system. Additionally, the 1S AC Servo System integrated with the NX1P2 CPU utilizes a battery-free absolute encoder, thereby minimizing the need for machine maintenance.
The NX1P2 CPU is designed to provide efficient and reliable motion control solutions for various industrial applications. Its integration of advanced features streamlines production processes, ensuring smooth operations and optimizing productivity levels. The absence of battery backup systems reduces overall system complexity and maintenance requirements, contributing to cost-effectiveness and operational efficiency.
With its robust design and comprehensive functionality, the NX1P2 CPU offers versatility and adaptability to meet the evolving needs of industrial automation. It provides precise control over motion sequences, enabling seamless coordination of machinery and equipment within manufacturing environments. By eliminating the reliance on battery backups and implementing innovative technologies such as battery-free absolute encoders, the NX1P2 CPU sets a new standard for reliability and performance in industrial automation systems.
Manufacturer information
OMRON Corporation, founded in 1933, is a global leader in automation, sensing, and control technologies. Headquartered in Kyoto, Japan, OMRON delivers innovative solutions for industrial automation, healthcare, electronic components, and social systems, contributing to a safer, efficient, and sustainable world.
