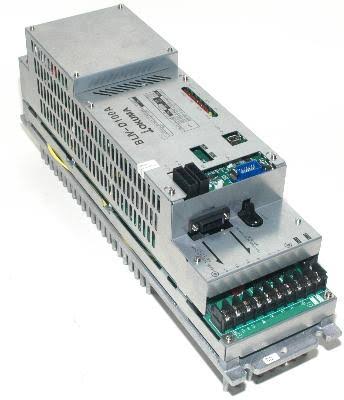

Okuma BLIV-D100A AC Servo Drive Amplifier for OSP CNC Systems
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BLIV-D100A
Description
Okuma BLIV-D100A is a single-axis AC servo drive and amplifier designed for motor control in compatible Okuma CNC systems. The unit uses a control PC board and power unit architecture and supports selectable drive capacity modes from 15 A through 100 A for integration with supported servo configurations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Okuma |
| Category | CNC Controls |
| Part Number | BLIV-D100A |
| Subcategory | Servo Drives |
| Product Type | AC Servo Drive / Servo Amplifier |
| Axis Configuration | 1-Axis |
| Rated Configuration | 100 A |
| Capacity Modes | 15 A / 30 A / 50 A / 75 A / 100 A |
| Drive Architecture | Control PC Board + Power Unit |
| OSP Support | OSP5020 / OSP7000 |
| Velocity Monitor | ±10 V / ±3750 min⁻¹ |
| Torque Monitor | 10 V / Torque Limit |
| SW1 Setting | OFF / OFF |
| SW2 Setting at 15 A | OFF / OFF / OFF / OFF |
| SW2 Setting at 100 A | OFF / OFF / ON / OFF |
| XB-DBR at 15 A | Disconnected |
| XB-DBR at 30–100 A | Connected |
| Mounting Holes | 4-M6 |
| Dimensions | 482 × 107 × 197 mm |
| Weight | 6 kg (13.23 lb) |
Information About BLIV-D100A
The BLIV-D100A is an Okuma servo drive designed for single-axis operation with OSP5020 and OSP7000 CNC control systems. Its internal architecture combines a dedicated control PC board with a power unit to perform servo amplification, motor control, and monitoring functions. The drive supports 15 A, 30 A, 50 A, 75 A, and 100 A capacity modes with switch settings used to configure the required operating range. Integrated velocity and torque monitoring outputs provide drive feedback, while the XB-DBR connection is configured according to the selected current capacity.
Key Features:
-
Single-Axis Control: Configured to control one servo axis in compatible Okuma CNC machinery.
-
Multiple Capacity Modes: Supports selectable 15 A, 30 A, 50 A, 75 A, and 100 A operating configurations.
-
Servo Amplifier Function: Provides AC servo amplification and motor control through an integrated drive architecture.
-
OSP Compatibility: Designed for integration with compatible Okuma OSP5020 and OSP7000 CNC control systems.
-
Modular Architecture: Combines a control PC board and power unit within a single servo drive assembly.
-
Velocity Monitoring: Provides a ±10 V monitor output corresponding to ±3750 min⁻¹.
-
Torque Monitoring: Provides a 10 V output referenced to the configured torque limit.
-
Configurable DBR Connection: XB-DBR remains disconnected at 15 A and connected for 30 A through 100 A configurations.
The BLIV-D100A delivers the reliability and precision required for single-axis AC servo motor control and monitoring in compatible Okuma CNC systems.
