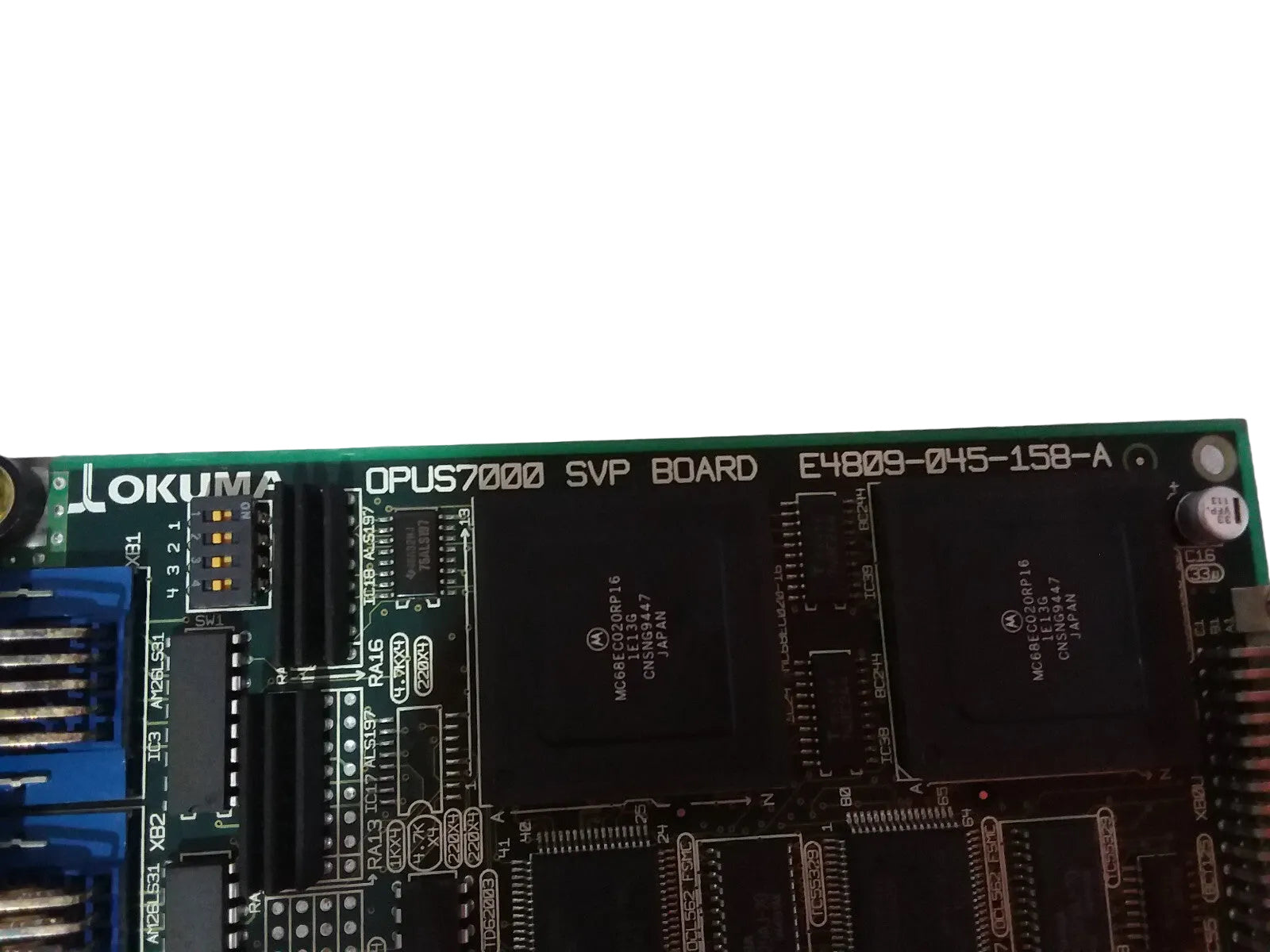

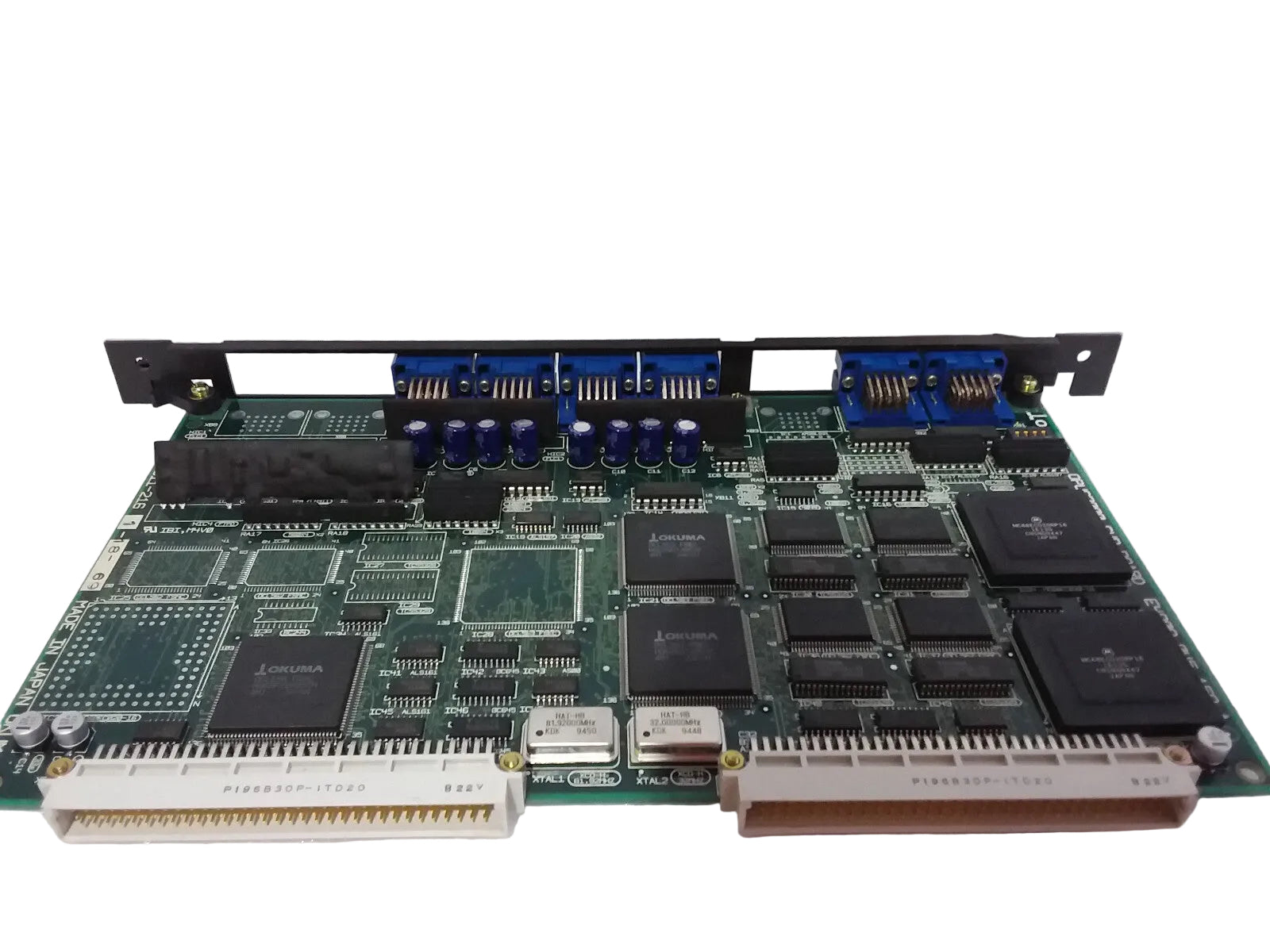

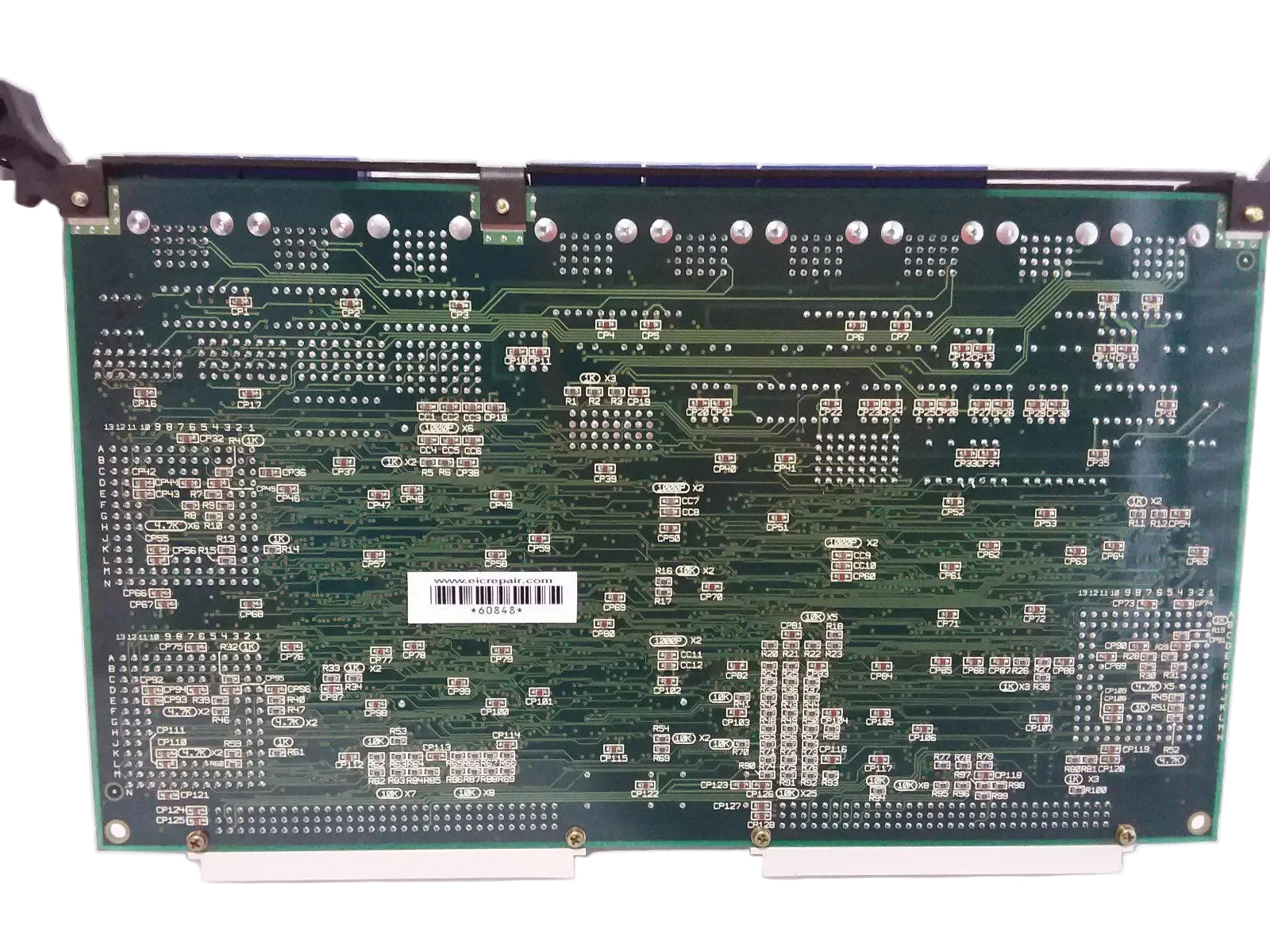

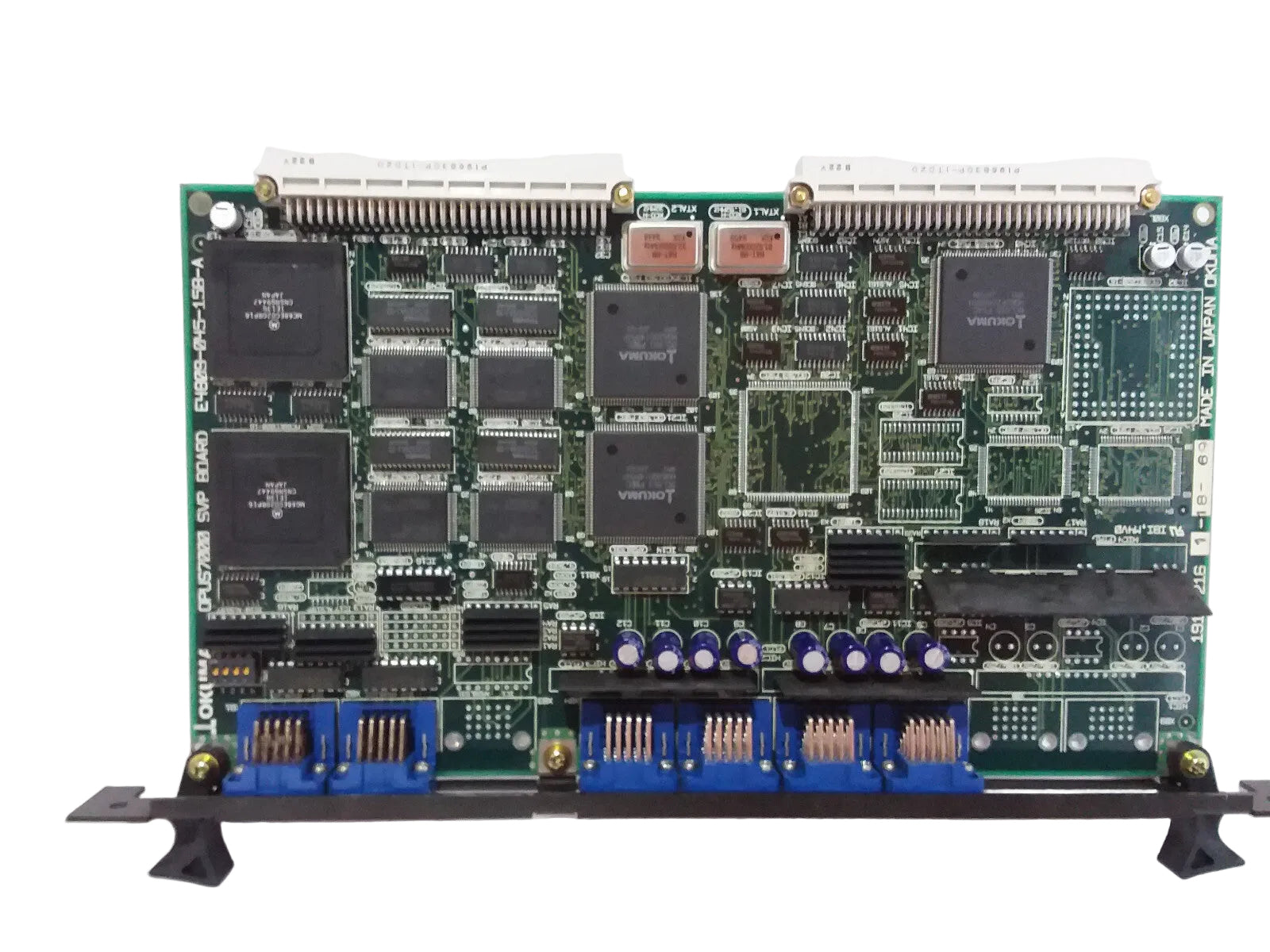

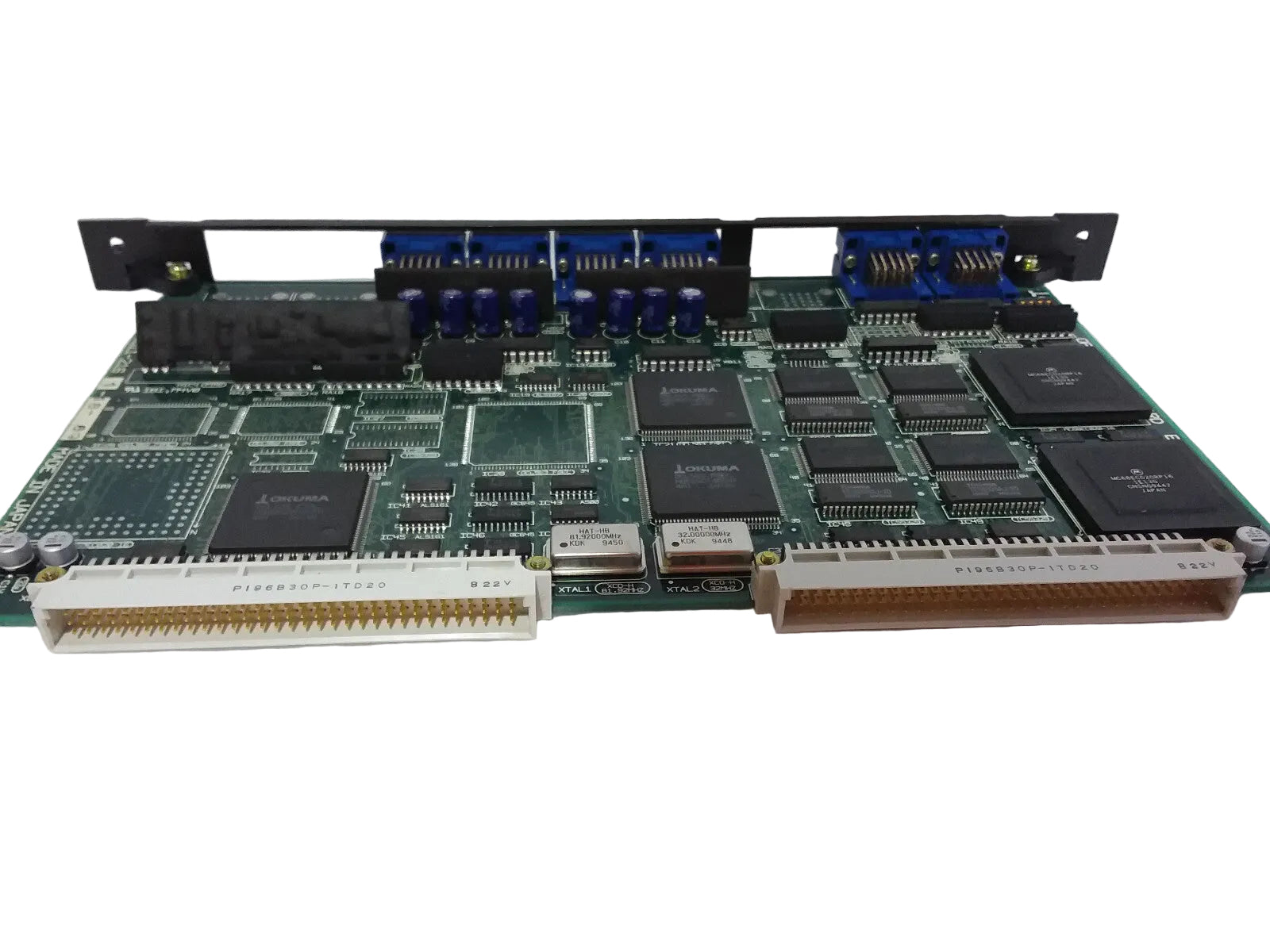

Okuma E4809-045-158-A OPUS7000 SVP Axis Control Board for CNC Systems
- Regular price
- $9,199.00
- Sale price
- $9,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: E4809-045-158-A
Description
The Okuma E4809-045-158-A is an OPUS7000 SVP axis board designed to provide servo-processing functions within compatible Okuma CNC systems. It handles real-time servo and motion-control processing for coordinated machine-axis operation and interfaces with the CNC system through its dedicated board and connector architecture.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Okuma |
| Category | CNC Automation |
| Part Number | E4809-045-158-A |
| Subcategory | Servo Control Boards |
| Product Type | OPUS7000 SVP Axis Board |
| Compatible CNC System | Okuma OPUS7000 / OSP7000 |
| Board Function | Servo and Axis Control Processing |
| Board Series | SVP |
| Application | CNC Machine Tools |
| Processor Architecture | 32-bit Motorola MC68EC030-based processing |
| Processor Frequency | 16 MHz |

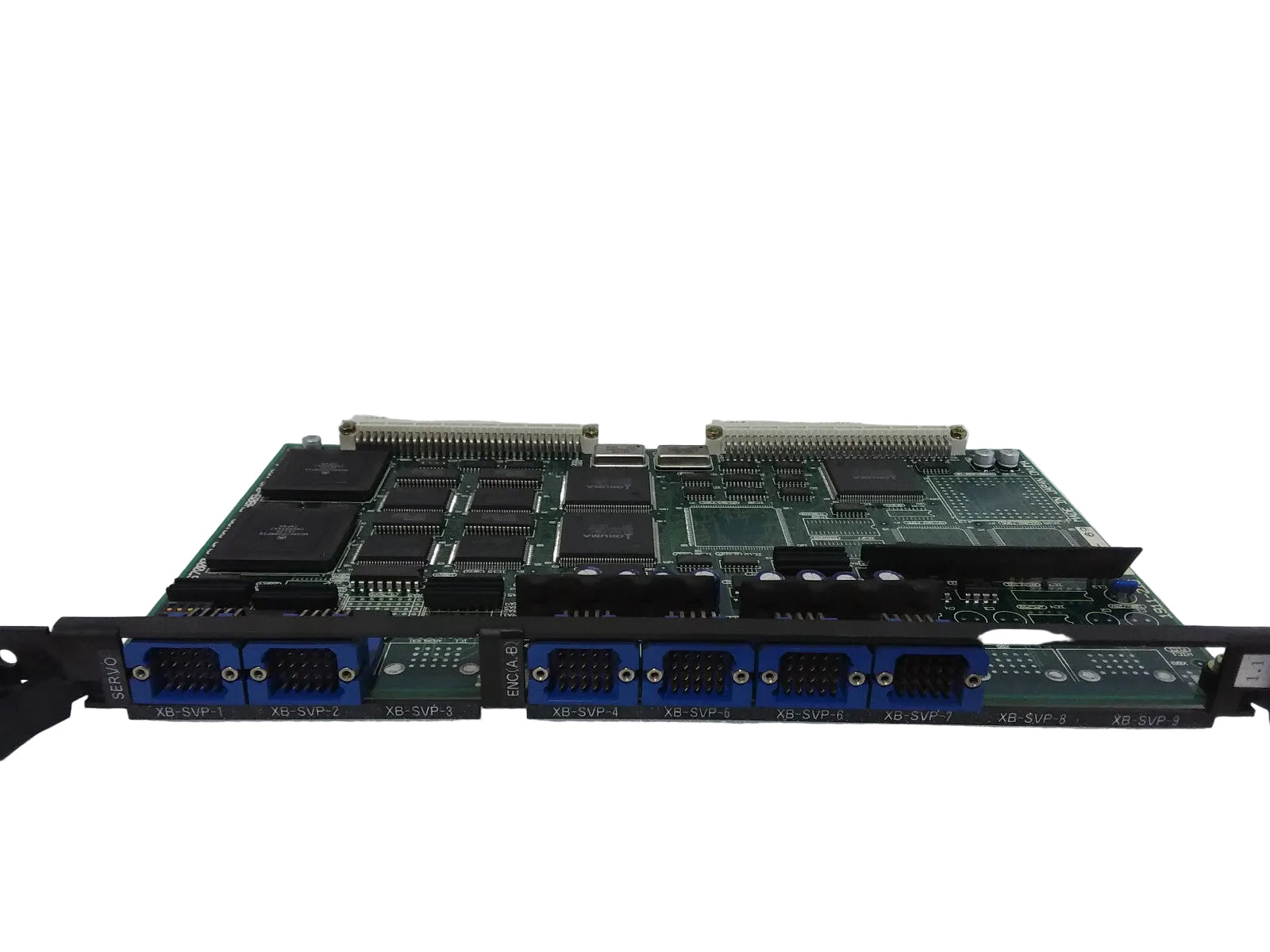

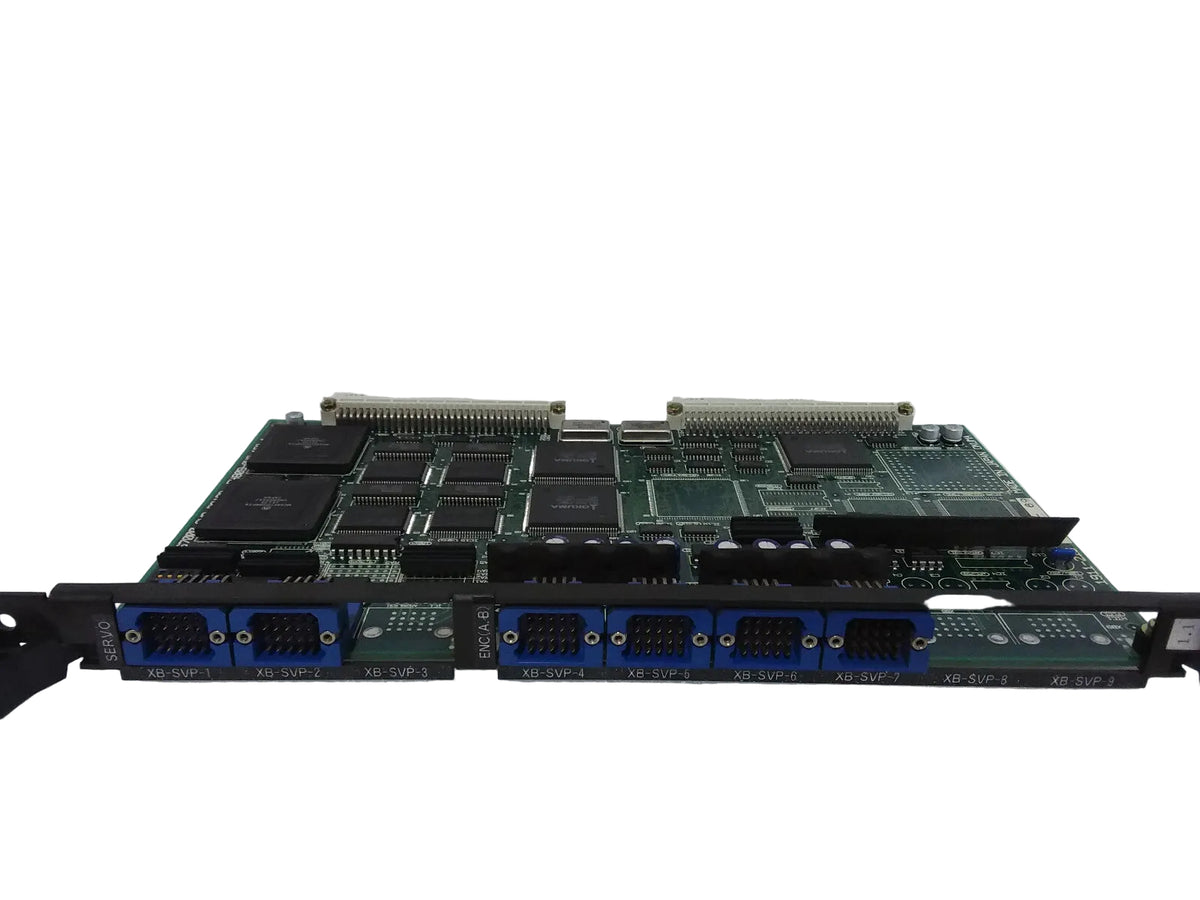

| Front Connector Configuration | Varies by 1911 version; 1911-2160 version has 9 connectors |
| Board Variations | 1911-2160, 1911-2161, 1911-2162 and other configurations |
| Weight | 4.41 lbs |
Information About E4809-045-158-A
The E4809-045-158-A belongs to the Okuma OPUS7000 SVP board family used in OSP7000 CNC control systems. Its processing architecture is based on dedicated microprocessors and memory circuitry for servo calculations, system logic, and real-time data handling. The board uses backplane and high-density D-sub connections to interface with the CNC control system and associated servo equipment. Multiple board variations exist, so the 1911 number and installed connector configuration should be verified to ensure compatibility before replacement.
Key Features:
- OPUS7000 SVP Board: Provides servo-processing functions for compatible Okuma CNC control systems.
- SVP Axis Control: Supports real-time processing associated with CNC servo-axis operation.
- Real-Time Processing: Uses dedicated processing circuitry for servo calculations and system control.
- Memory Circuitry: Provides onboard memory resources for real-time data storage and buffering.
- CNC Backplane Interface: Connects to the control-system architecture through the designated backplane interface.
- High-Density Connectors: Supports multiple front-panel connections for interfacing with compatible servo equipment.
- Multiple Variations: Requires verification of the associated 1911 number and connector configuration before installation.
- Discontinued Component: Intended primarily for replacement and maintenance of existing OPUS7000 CNC systems.
The E4809-045-158-A delivers the reliability and precision required for Okuma CNC servo processing, axis control, and machine-tool automation applications.
