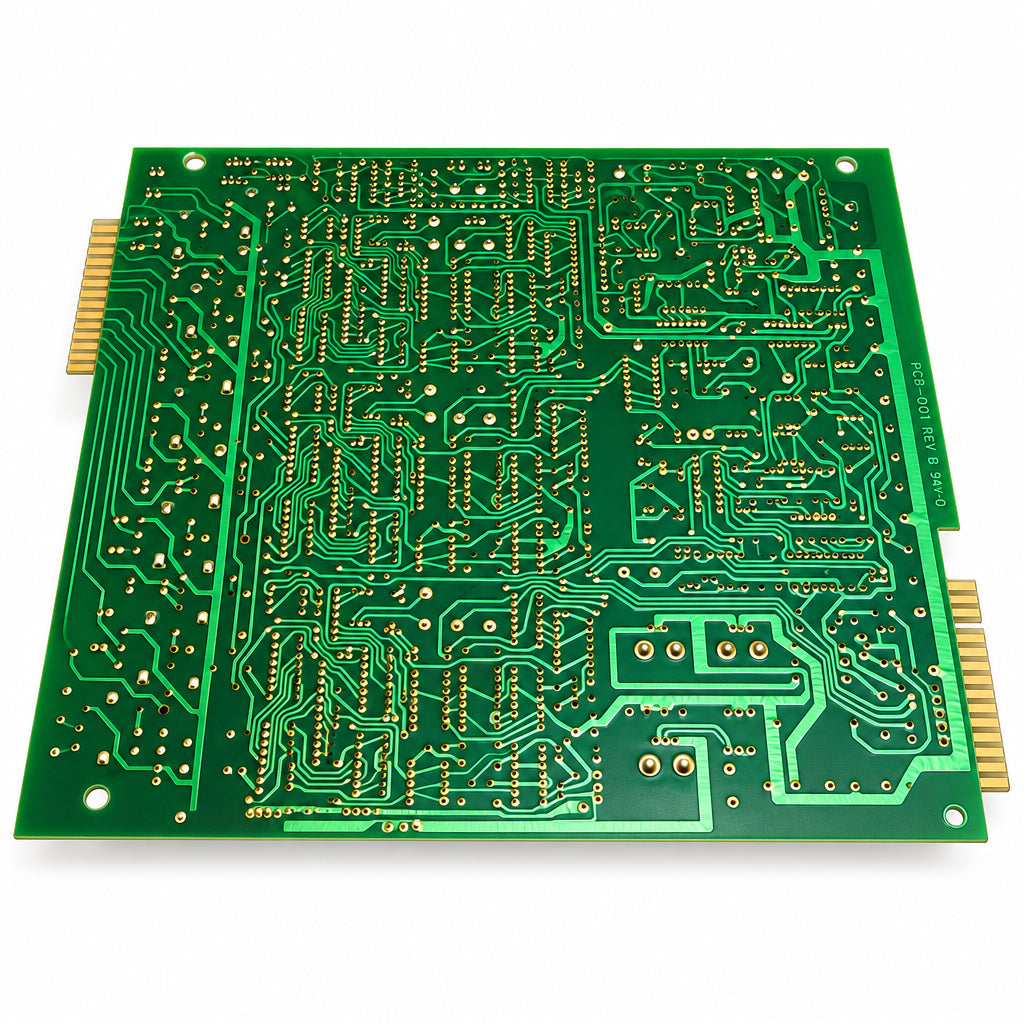

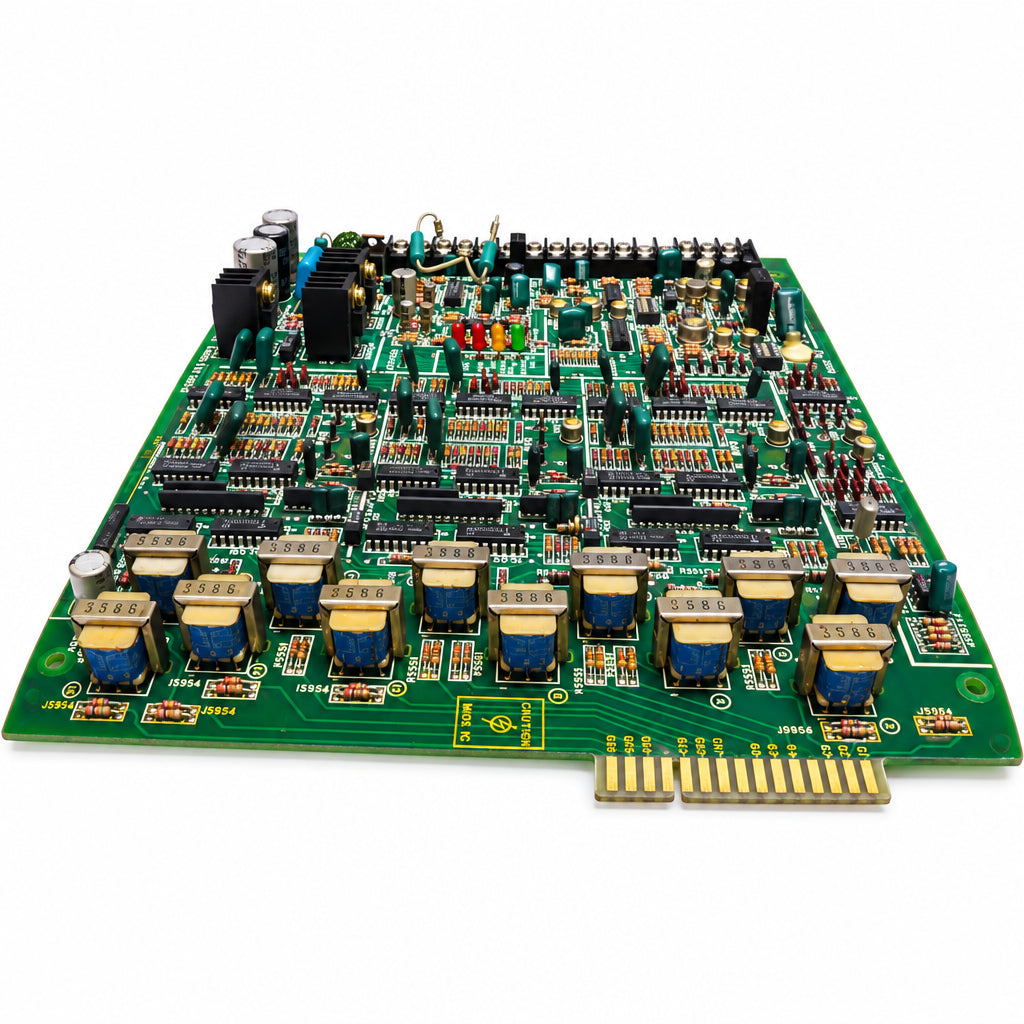

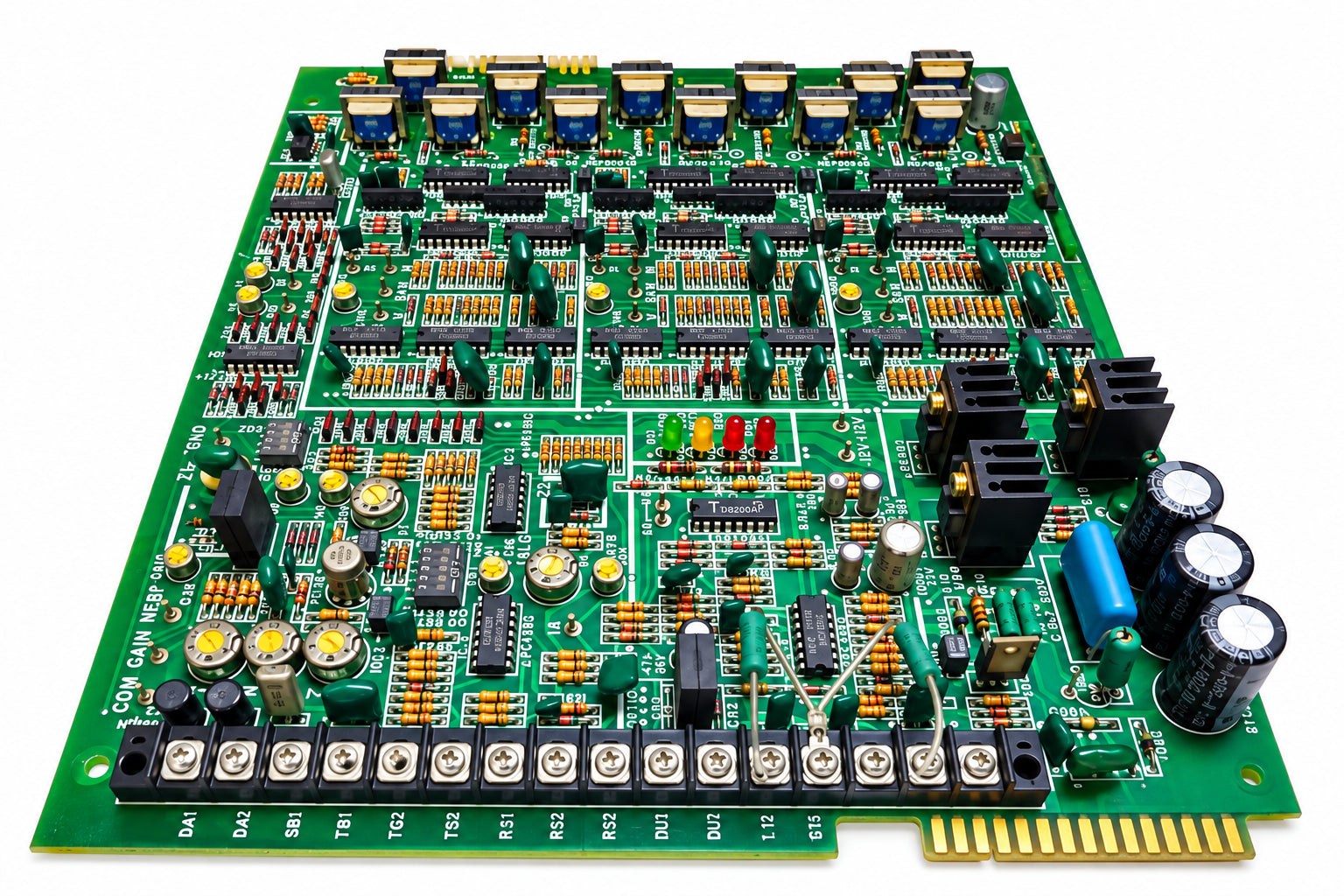

Okuma E4809-747-005-D Servo and Spindle Drive PC Board for CNC Systems
- Regular price
- $2,717.00
- Sale price
- $2,717.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: E4809-747-005-D
Description
Okuma E4809-747-005-D is a printed circuit board designed for servo and spindle drive functions within compatible industrial CNC control systems. The board provides electronic interfacing and control support for associated drive hardware using a multi-layer PCB construction with copper conductive traces.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Okuma |
| Category | CNC Controls |
| Part Number | E4809-747-005-D |
| Subcategory | Servo and Spindle Drive Boards |
| Product Type | Printed Circuit Board (PCB) |
| Function | Servo and Spindle Drive Component |
| PCB Construction | Multi-Layer |
| Board Materials | Glass-Fiber / Resin Composite |
| Conductive Material | Copper Traces |
| Component Technology | Through-Hole / Surface Mount |
| Application | Industrial CNC Drive Electronics |
| System Integration | Servo and Spindle Drive Assemblies |
| Compatible Equipment | Okuma CNC Systems |
| EMC Design | Designed for Applicable EMC Requirements |
| Weight | 0.66 kg (1.46 lb) |
Information About E4809-747-005-D
The E4809-747-005-D is an Okuma PC board developed as a component of compatible servo and spindle drive assemblies. Its construction uses glass-fiber, plastic, resin composite materials, and copper traces suited to industrial electronic control applications. The PCB may incorporate through-hole and surface-mount component technologies depending on its specific assembly configuration. Its multi-layer architecture supports the signal routing and electronic circuitry required for integration with compatible Okuma CNC drive and control hardware.
Key Features:
-
Drive Control Application: Designed for use as an electronic component within compatible servo and spindle drive systems.
-
Industrial PCB Design: Provides board-level control and interfacing functions for CNC drive hardware.
-
Multi-Layer Construction: Uses multiple PCB layers to accommodate signal routing and electronic circuitry.
-
Composite Board Material: Constructed with glass-fiber and resin-based PCB materials with copper conductive traces.
-
Component Integration: Supports electronic components using applicable through-hole and surface-mount technologies.
-
CNC System Compatibility: Intended for integration with compatible Okuma CNC drive and machine-control hardware.
-
EMC-Oriented Design: Designed to operate within applicable electromagnetic compatibility requirements.
-
Industrial Construction: Built for operation as part of electronic machine-control and drive assemblies.
The E4809-747-005-D delivers the reliability and precision required for servo and spindle drive electronics in compatible Okuma CNC systems.
