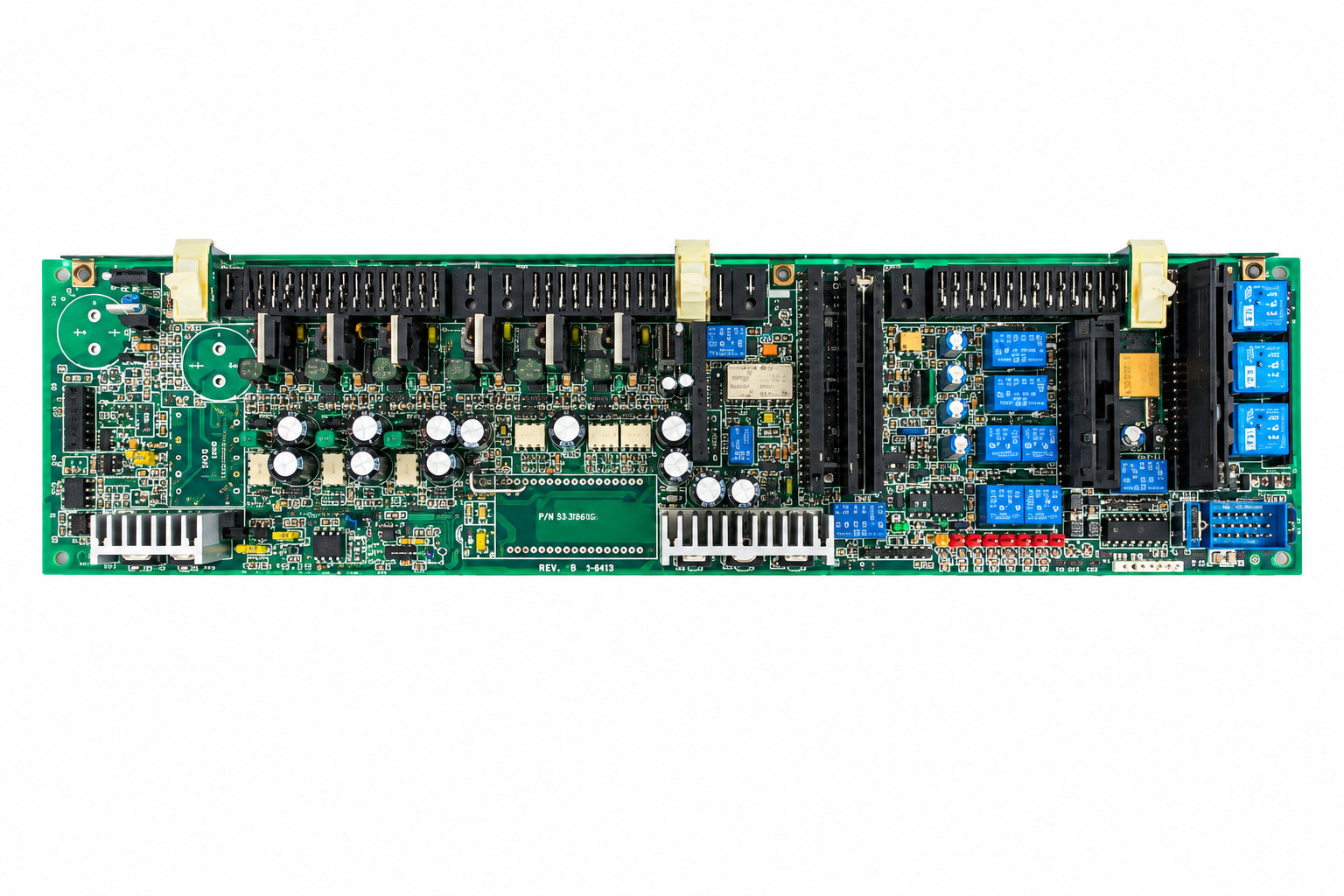

Okuma E4809-770-015-B SVC-A Servo Drive Control Board for BL-D Drives
- Regular price
- $6,199.00
- Sale price
- $6,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: E4809-770-015-B
Description
Okuma E4809-770-015-B is a servo drive control board designed for SVC-A and BL-D drive systems used in CNC machine control applications. The board manages servo drive functions with dedicated control supply rails, configurable drive-current settings, and onboard alarm indication for system monitoring.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Okuma |
| Category | CNC Controls |
| Part Number | E4809-770-015-B |
| Subcategory | Servo Drive Control Boards |
| Board Type | Servo Drive Control Board |
| Drive Series | SVC-A / BL-D |
| PCB Input Voltage | 220 VAC |
| PCB Input Phase | Single-Phase |
| DC Bus Reference | 300 VDC |
| Control Supply Rails | ±15 VDC, 5 VDC |
| HV Alarm Threshold | 430 VDC |
| Supported Drive Ratings | 30 A, 50 A, 75 A |
| Supported Motor Families | BL, BL-H, BL-MS |
| Maximum Axes per DCPS | 6 |
| Servo Alarm LED Count | 10 |
| Servo LED Color Split | 1 Green, 2 Yellow, 7 Red |
| DCPS LED Count | 2 |
| DIP Switch Group Count | 10 |
| SW7 Setting Map | 30 A = 1; 50 A = 2; 75 A = 3 |
| Weight | 0.12 lbs |
Information About E4809-770-015-B
The E4809-770-015-B is a servo control board engineered for Okuma CNC servo drive architecture and compatible BL-D drive configurations. It supports BL, BL-H, and BL-MS motor families and accommodates supported drive ratings of 30 A, 50 A, and 75 A through selectable switch settings. The board operates from a single-phase 220 VAC input and uses a 300 VDC bus reference while providing ±15 VDC and 5 VDC control supply rails. Multiple DIP switch groups, servo alarm LEDs, and paired U/V switch configurations provide setup, status indication, and drive-specific configuration functions.
Key Features:
-
Servo Drive Control: Designed to provide control functions for Okuma SVC-A and BL-D servo drive systems.
-
Motor Compatibility: Supports BL, BL-H, and BL-MS servo motor families.
-
Multiple Drive Ratings: Configurable for supported 30 A, 50 A, and 75 A drive ratings.
-
Control Supply Rails: Provides ±15 VDC and 5 VDC rails for board-level control circuitry.
-
Alarm Monitoring: Incorporates 10 servo alarm LEDs for visual operating and fault-status indication.
-
DCPS Indication: Includes two DCPS LEDs for monitoring associated power supply conditions.
-
Configurable Switching: Uses 10 DIP switch groups with defined settings for drive and system configuration.
-
Multi-Axis Support: Designed to operate in DCPS arrangements supporting up to six axes.
The E4809-770-015-B delivers the reliability and precision required for CNC servo drive control, configuration, and system monitoring.
