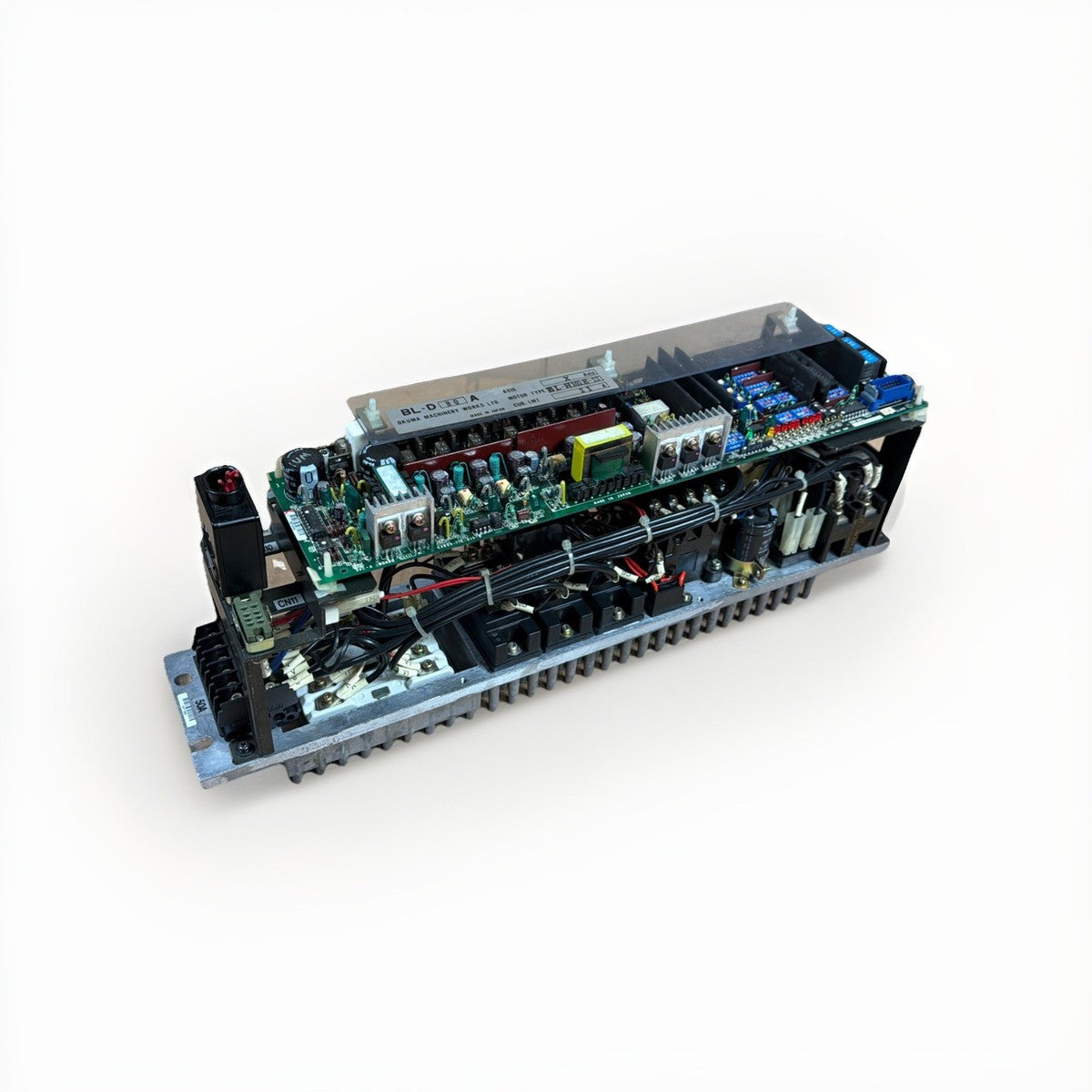

Okuma E4809-770-015-D Servo Drive Board SVC-A for BL-D CNC Drives
- Regular price
- $4,899.00
- Sale price
- $4,899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: E4809-770-015-D
Description
The Okuma E4809-770-015-D is a high-precision CNC servo drive board designed for real-time motor control and position feedback processing in industrial machining systems. Designated as an SVC-A servo control board, this unit directly interfaces with Okuma BL-D series drives to govern axis velocity and current loops. Its solid-state architecture ensures precise multi-axis interpolation and stable dynamic response during heavy-duty CNC machining operations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Okuma |
| Category | Servo Products |
| Part Number | E4809-770-015-D |
| Subcategory | Servo Add-On Module/Board |
| Board Type | Servo Drive Board / Control Board |
| Model Series | SVC-A |
| Compatibility | Okuma BL-D Series Drives |
| Application | CNC Machine Axis Motion Control |
| Weight | 0.75 kg |
Information About E4809-770-015-D
The E4809-770-015-D is part of Okuma's specialized CNC drive control series, engineered to maintain synchronization between main CNC controllers and digital servo amplifiers. Constructed with high-grade circuit components, this SVC-A control board mounts directly into BL-D drive housings to execute fast loop calculations, encoder feedback evaluation, and signal isolation. Integrated protective circuitry safeguards the drive assembly against current spikes, thermal overload, and communication faults, extending operational longevity in demanding shop-floor environments.
Key Features:
- BL-D Drive Compatibility: Designed specifically to interface seamlessly with Okuma BL-D series servo drives.
- SVC-A Architecture: Executes high-speed velocity and current loop control algorithms for precise axis motion.
- Advanced Feedback Processing: Accepts real-time feedback signals from encoders to ensure exact positional accuracy.
- Robust Signal Isolation: Protects sensitive control logic from high-power drive interference and electrical noise.
- Compact Plug-In Form Factor: Direct board-level integration simplifies maintenance, diagnostics, and panel servicing.
- Industrial CNC Reliability: Built to withstand high ambient vibration, thermal shifts, and continuous industrial operation.
The E4809-770-015-D delivers the reliability and precision required for critical CNC machine tool motion control and servo axis regulation.
