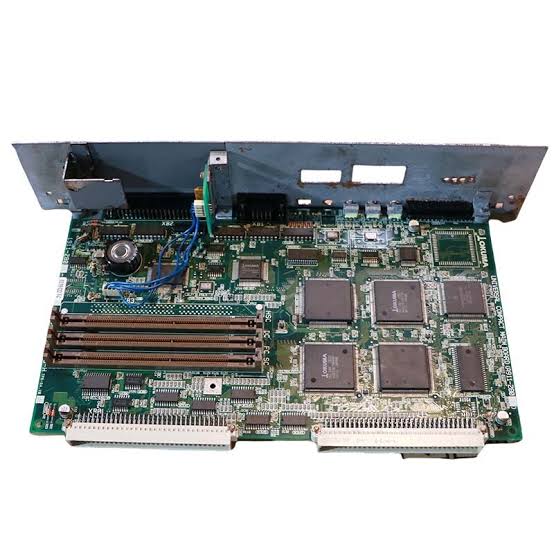

Okuma E4809-770-110-H UCMB-F Universal Compact Main CNC Control Board
- Regular price
- $2,699.00
- Sale price
- $2,699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: E4809-770-110-H
Description

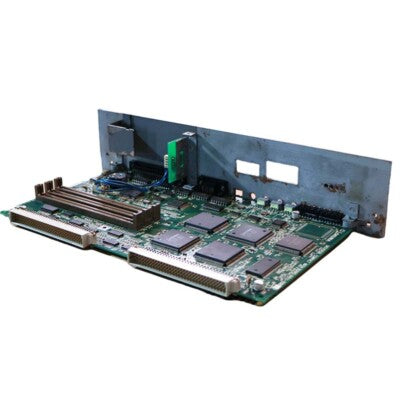

Okuma E4809-770-110-H is a UCMB-F Universal Compact Main Board designed for control and processing functions within compatible CNC equipment. The printed circuit board incorporates battery backup, multiple system connectors, and onboard power-status indication for integration into industrial control hardware.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Okuma |
| Category | CNC Controls |
| Part Number | E4809-770-110-H |
| Subcategory | CNC Main Control Boards |
| Product Type | Universal Compact Main Board |
| Board Type | Printed Circuit Board (PCB) |
| Board Designation | UCMB-F |
| Reference Number | A911-2801 / 1911-2801 |
| PCB Material | FR4 Glass Epoxy |
| Mounting Type | Rack / Chassis Mount |
| Connectors | Multiple Edge Connectors and Pin Headers |
| Firmware | Factory-Installed Controller Firmware |
| Backup Function | Battery Backup |
| Power Indicators | 5 V, +12 V, -12 V, +24 V |
| Operating Temperature | 0°C to 50°C Typical |
| Application | CNC Machine Control |
| Weight | 1.40 lbs |
Information About E4809-770-110-H
The E4809-770-110-H is an Okuma Universal Compact Main Board identified as the UCMB-F board and associated with reference A911-2801. Its FR4 glass-epoxy PCB construction incorporates multiple edge connectors and pin headers for communication with compatible CNC control components. The board includes factory-installed controller firmware and battery-backed functionality for maintaining required control information when primary system power is unavailable. Rack or chassis mounting allows the assembly to integrate into compatible CNC control hardware while dedicated indicators provide status information for multiple supply rails.
Key Features:
-
UCMB-F Architecture: Configured as a Universal Compact Main Board for compatible CNC control equipment.
-
Battery Backup: Incorporates backup functionality for maintaining required board information during power interruption.
-
Multi-Rail Indication: Provides status indication for 5 V, +12 V, -12 V, and +24 V supply rails.
-
Industrial PCB Construction: Uses FR4 glass-epoxy material suited to electronic control assemblies.
-
Multiple Connections: Equipped with edge connectors and pin headers for system-level board integration.
-
Onboard Firmware: Includes factory-installed controller firmware for compatible control functions.
-
Chassis Installation: Designed for rack or chassis mounting within compatible CNC control assemblies.
-
Reference Identification: Associated with A911-2801 and 1911-2801 reference numbers.
The E4809-770-110-H delivers the reliability and precision required for central board-level control and system interfacing in compatible CNC equipment.
