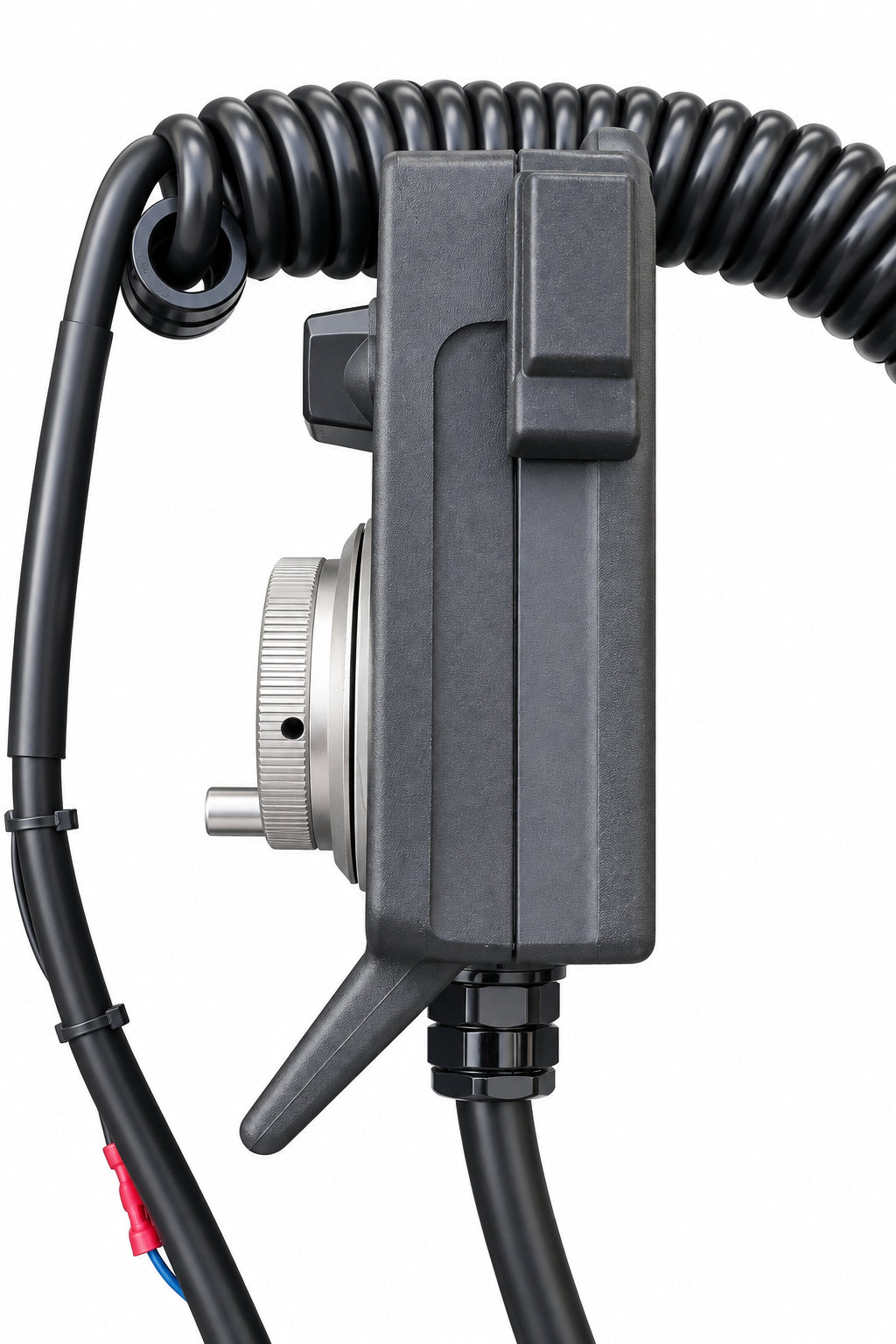

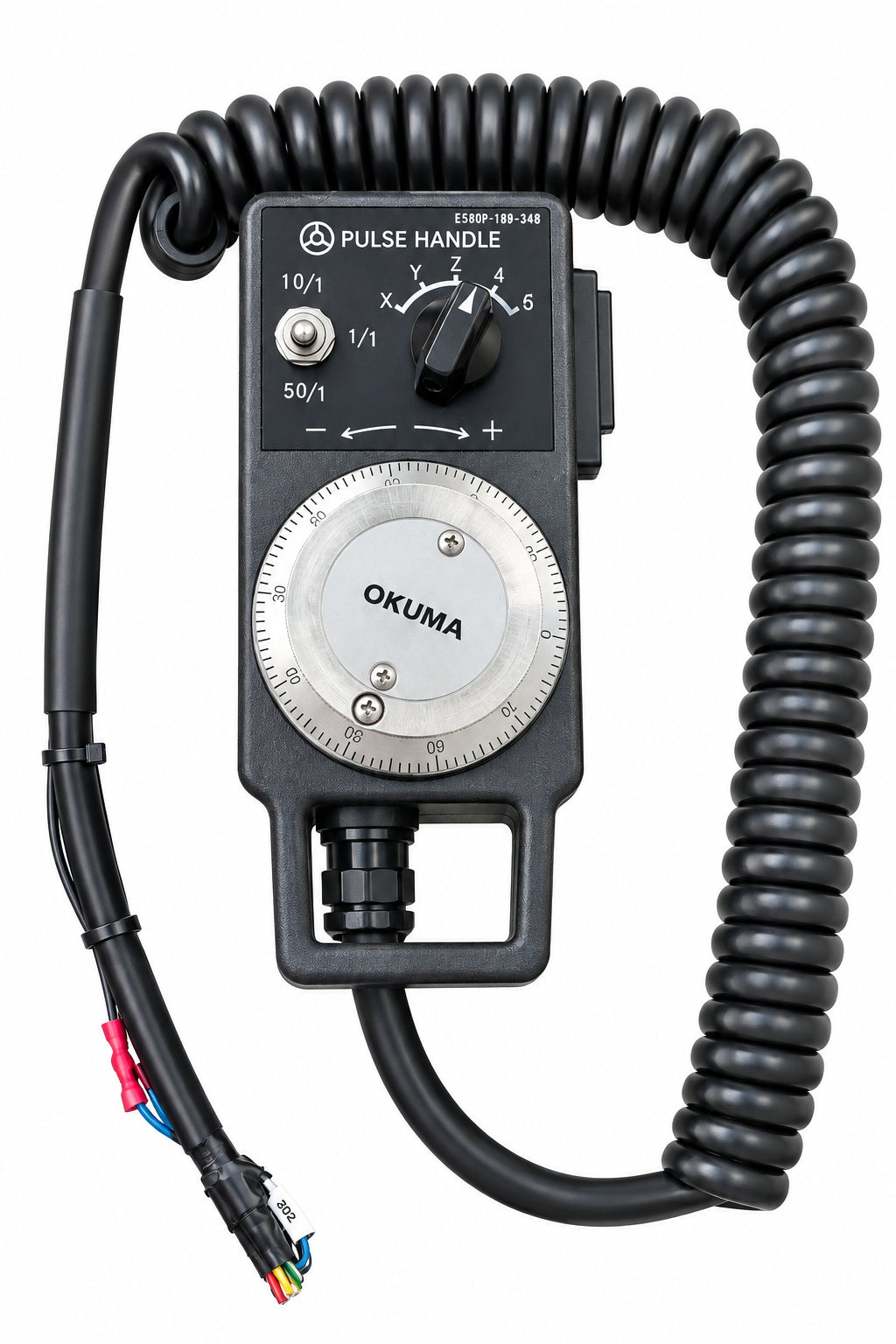

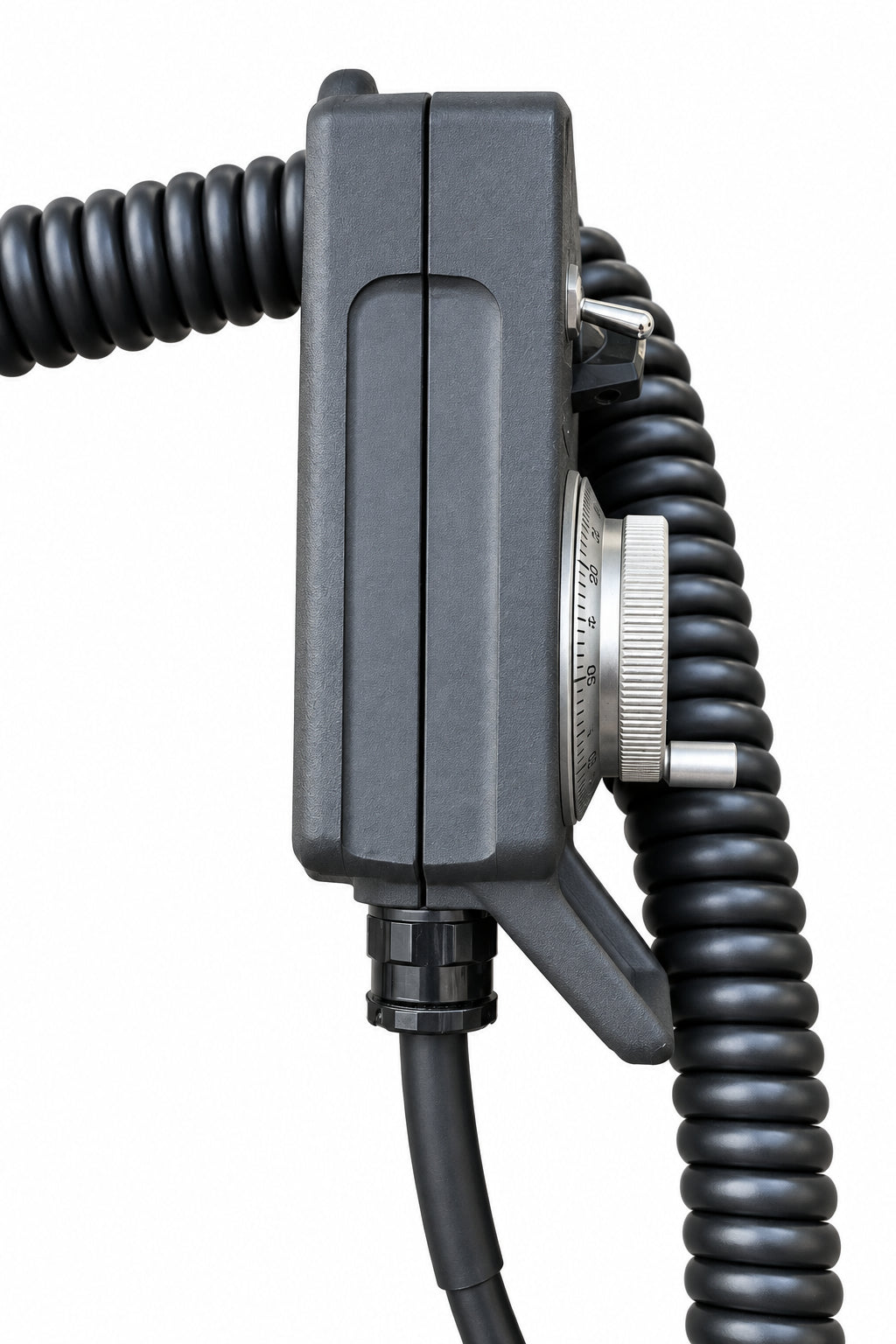

Okuma E5409-183-349 Pulse Handle Jog Remote Pendant Control
- Regular price
- $1,992.00
- Sale price
- $1,992.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: E5409-183-349
Description
Okuma E5409-183-349 is a pulse handle jog remote pendant designed for manual axis positioning and machine setup in compatible CNC systems. The handheld control supports selectable X, Y, Z, 4, and 5 axis positions, with adjustable jog increments and a 0–100 dial scale for controlled movement.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Okuma |
| Category | CNC Controls |
| Part Number | E5409-183-349 |
| Subcategory | Jog Pendant Controls |
| Product Type | Pulse Handle Jog Remote Pendant |
| Axis Positions | X, Y, Z, 4, 5 |
| Jog Toggle Positions | 1 / 10 / 50 |
| Dial Scale | 0–100 |
| Direction Marks | + / - |
| Cable Style | Coiled |
| Control Function | Manual Axis Jogging and Positioning |
| Length | 25.0 cm |
| Width | 25.0 cm |
| Height | 10.0 cm |
| Weight | 2.0 kg (4.41 lb) |
Information About E5409-183-349
The E5409-183-349 is an Okuma remote pendant control designed for manual jog and positioning functions during CNC machine setup and adjustment. It provides axis selection for X, Y, Z, 4, and 5 positions and includes selectable toggle settings of 1, 10, and 50 for adjustable movement increments. The pendant uses a coiled cable for flexible operator handling and incorporates directional + / - markings around the pulse handle. Its compact enclosure and adjustable reading controls support precise local machine movement without requiring direct interaction with the main CNC panel.
Key Features:
-
Multi-Axis Selection: Supports X, Y, Z, 4, and 5 axis positions for manual machine movement.
-
Pulse Handle Control: Provides incremental jog input for controlled CNC axis positioning.
-
Adjustable Jog Settings: Includes selectable 1, 10, and 50 toggle positions for different movement increments.
-
Dial Scale: Features a 0–100 scale for clear manual control reference.
-
Direction Indication: Includes + / - markings for immediate movement direction identification.
-
Remote Pendant Design: Allows local machine setup and jogging away from the primary CNC control panel.
-
Coiled Cable: Provides flexible reach while helping keep the control cable organized.
-
Compact Housing: 25 × 25 × 10 cm dimensions support practical handheld or operator-station use.
The E5409-183-349 delivers the reliability and precision required for manual CNC axis jogging, positioning, and setup operations.
