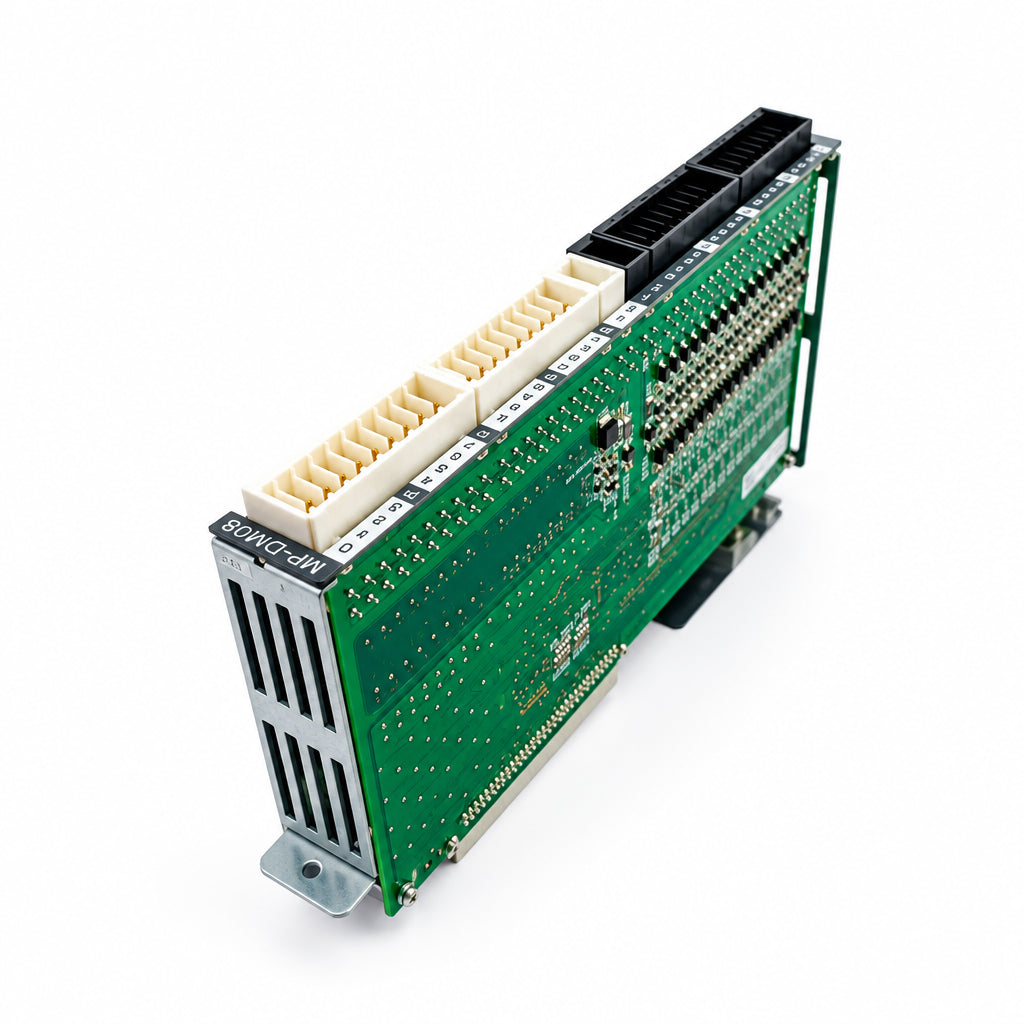

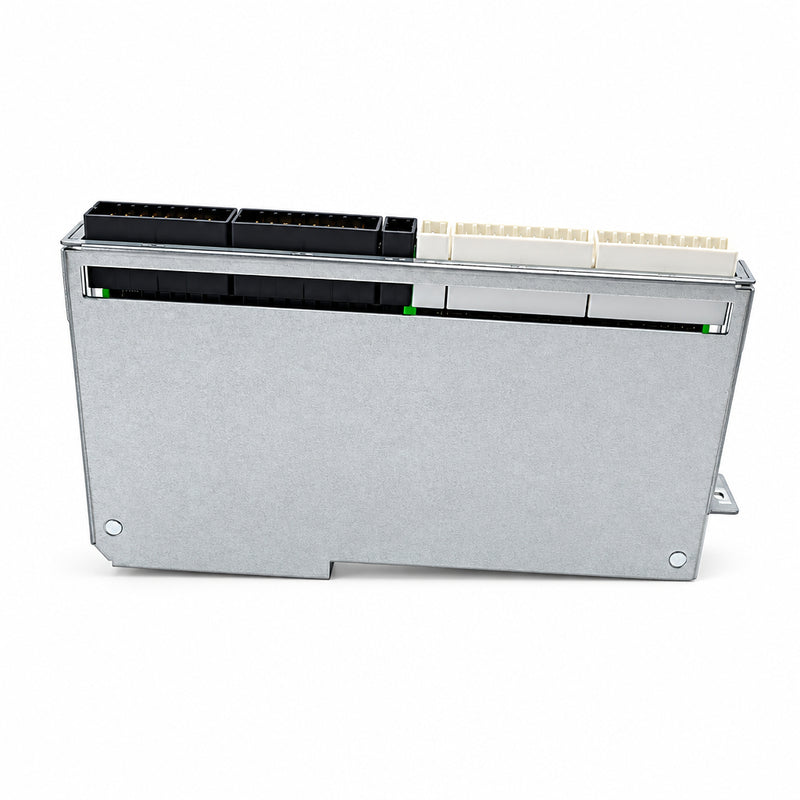

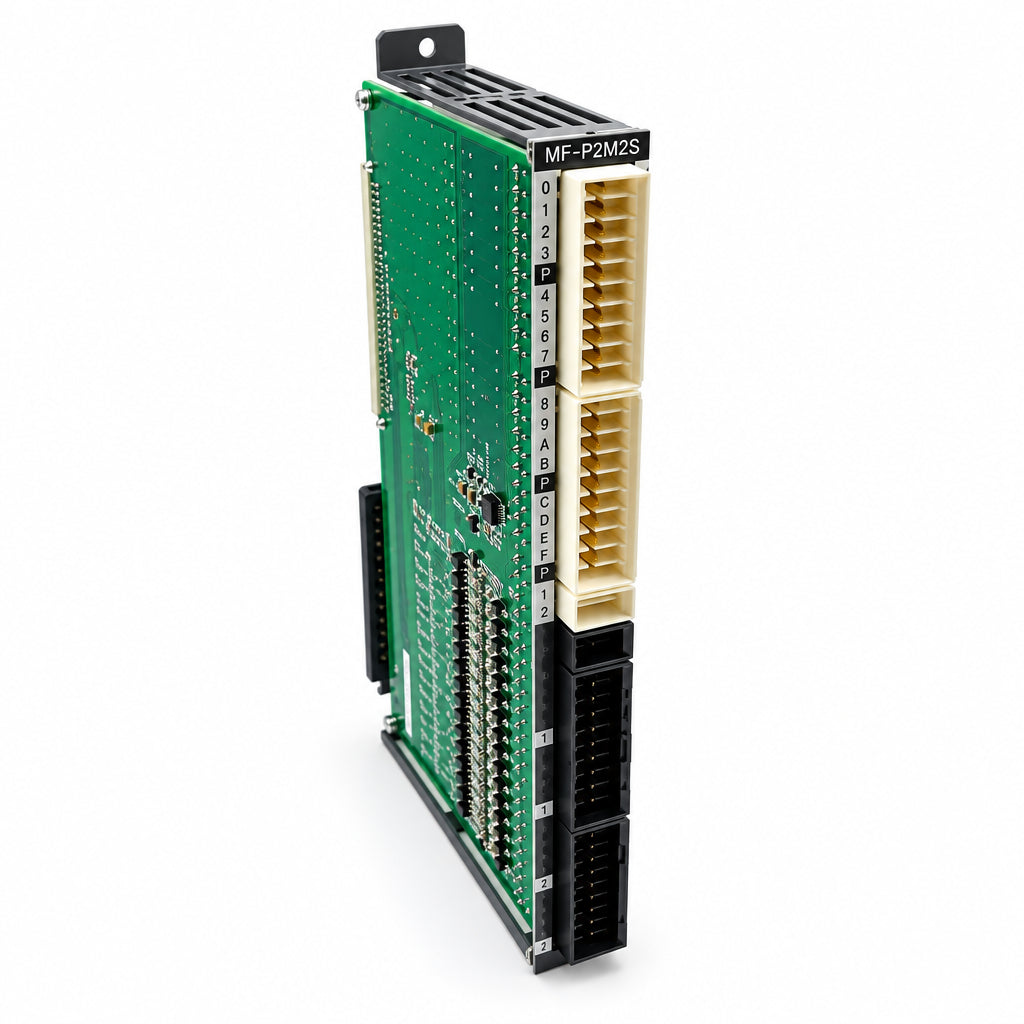

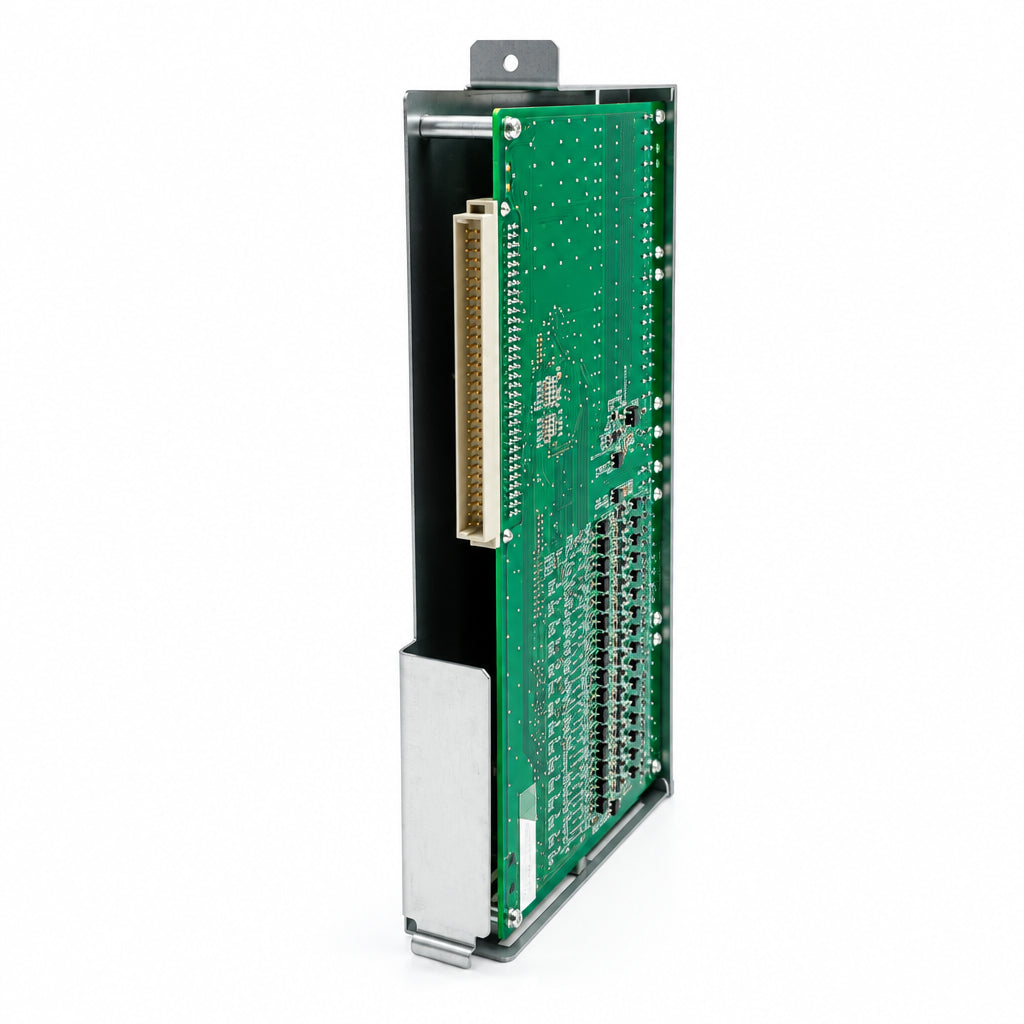

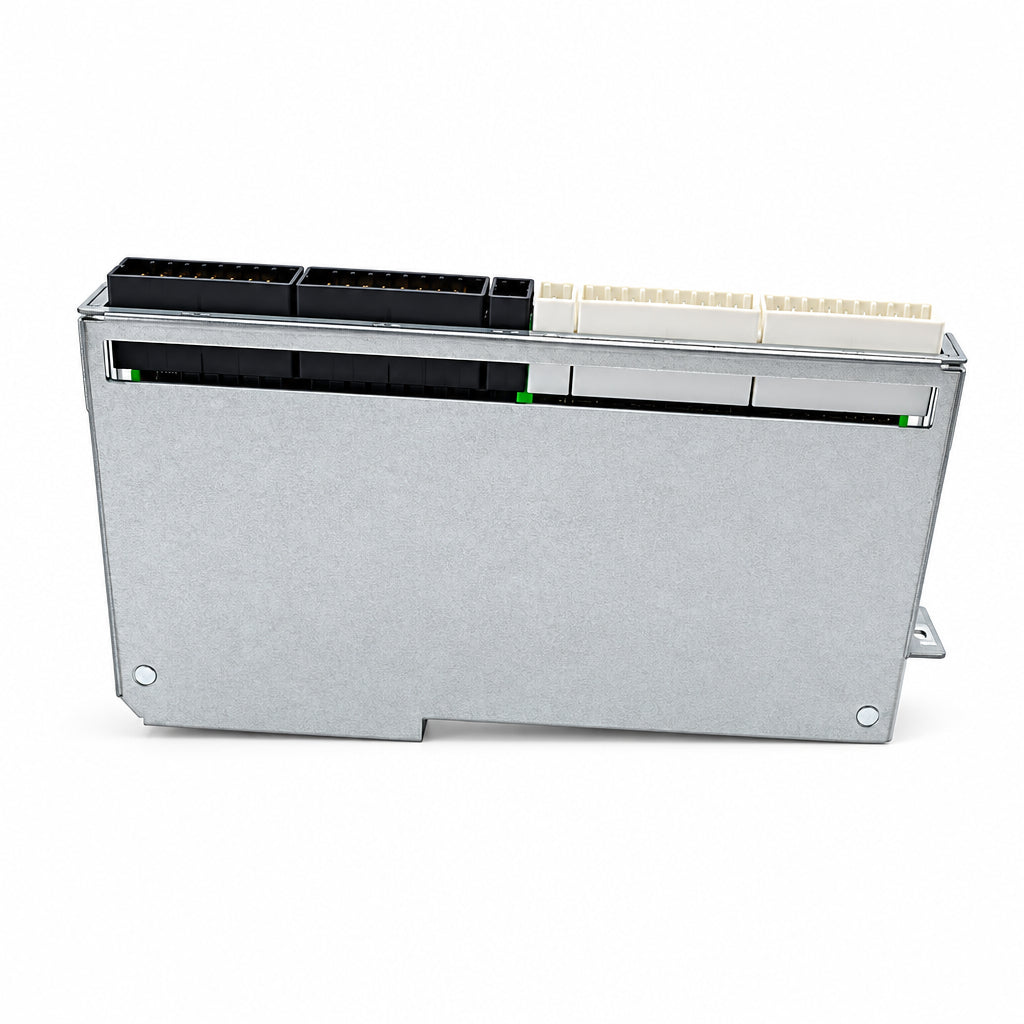

Okuma MF-P2M2S POS I/F I/O Interface Board for CNC Control Systems
- Regular price
- $1,499.00
- Sale price
- $1,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MF-P2M2S
Description
Okuma MF-P2M2S is an industrial I/O board and position interface module designed for signal exchange within compatible Okuma CNC control systems. It provides 16 photo-coupler input ports and 16 MOSFET output ports, supporting 24 VDC control circuits with integrated input filtering and output overcurrent protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Okuma |
| Category | CNC Controls |
| Part Number | MF-P2M2S |
| Subcategory | I/O Interface Boards |
| Type | I/O Board / POS I/F Module |
| Connection Type | Multiple I/O Ports |
| Input Ports | 16 Photo-Coupler Ports |
| Output Ports | 16 MOSFET Output Ports |
| Input Power Source | 24 VDC ±10%, Positive Ground |
| Output Power Source | 24 VDC ±10%, Positive Ground |
| Voltage Support | 24 VDC |
| Minimum ON Current | 9 mA |
| Maximum OFF Current | 3.5 mA |
| Input Filter | 5 ms or Lower Pulse Removal |
| Overcurrent Protection | Protective Circuit, 0.5 A to 1.6 A |
| Mounting Option | Panel Mount |
| Operating Temperature | -10°C to 60°C |
| Associated References | A911-3615; E0241-263-005-1; E0241-263-005-2 |
| Weight | 1.5 kg (3.31 lb) |
Information About MF-P2M2S
The MF-P2M2S is an Okuma CNC I/O board designed for panel-mounted integration into compatible machine control configurations. It uses multiple I/O connections with 16 isolated photo-coupler inputs and 16 MOSFET outputs for communication between the CNC controller and connected machine devices. Both input and output circuits operate from a 24 VDC ±10% positive-ground power source, while input filtering removes pulses of 5 ms or shorter.
Key Features:
-
32-Point I/O Configuration: Provides 16 photo-coupler input ports and 16 MOSFET output ports.
-
Position Interface Function: Designed as a POS I/F module for compatible Okuma CNC control architecture.
-
Photo-Coupler Inputs: Uses optically coupled input circuits for controlled interface signal processing.
-
MOSFET Outputs: Incorporates semiconductor output ports for switching connected CNC control loads.
-
Input Filtering: Removes input pulses of 5 ms or shorter to reduce unwanted transient signal detection.
-
Overcurrent Protection: Includes protective circuitry operating within a specified 0.5 A to 1.6 A range.
-
Panel-Mount Design: Configured for installation within compatible CNC control cabinets and panels.
-
Industrial Temperature Range: Supports operation from -10°C to 60°C for machine-control environments.
The MF-P2M2S delivers the reliability and precision required for CNC machine I/O interfacing, signal processing, and peripheral control.
